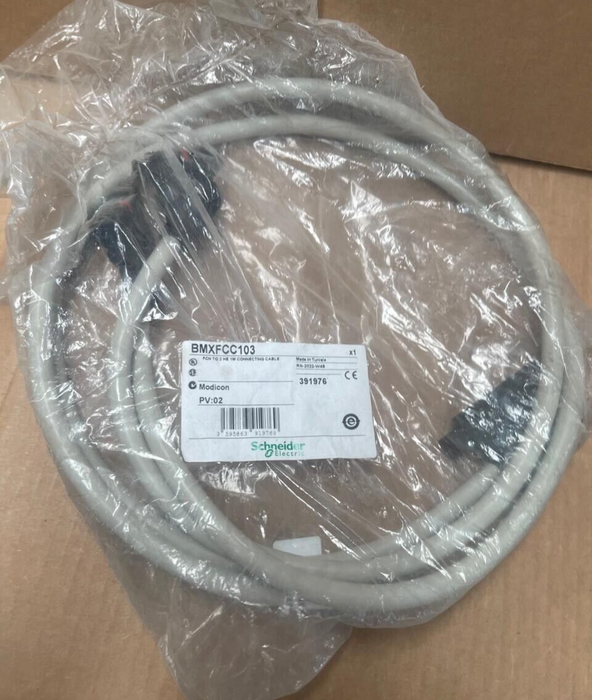

Schneider Electric - BMXFCC103 - Preformed Cordset, 40-Way Terminal, 2 x HE10

The Schneider Electric BMXFCC103 is a preformed cordset designed for efficient and reliable connections between I/O modules with 40-way connectors and Modicon Telefast Advantys ABE7 sub-bases. Key features include:

• Compatibility: Suitable for Modicon M340 I/O modules equipped with 40-way connectors, facilitating seamless integration within the Modicon X80 platform.

• Connectors:

• Primary Connector: One 40-way terminal connector for direct attachment to the I/O module.

• Secondary Connectors: Two HE10 connectors for interfacing with Telefast Advantys ABE7 sub-bases, ensuring secure and efficient connections.

• Cable Length: 1 meter (3.3 feet), providing adequate reach for standard installations while maintaining signal integrity.

• Wire Specifications:

• Total Number of Wires: 40, corresponding to the 40-way connector configuration.

• Wire Cross-Section: 0.324 mm² (approximately 22 AWG), balancing flexibility and durability for industrial applications.

• Application: Designed to streamline the connection process between I/O modules and sub-bases, reducing installation time and minimizing wiring errors in automation systems.

• Environmental Considerations: Constructed to meet industrial standards, ensuring reliable performance in various operating conditions.
