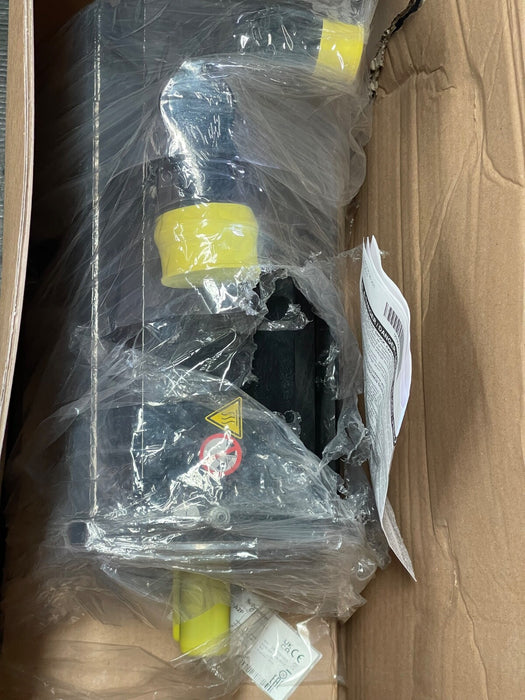

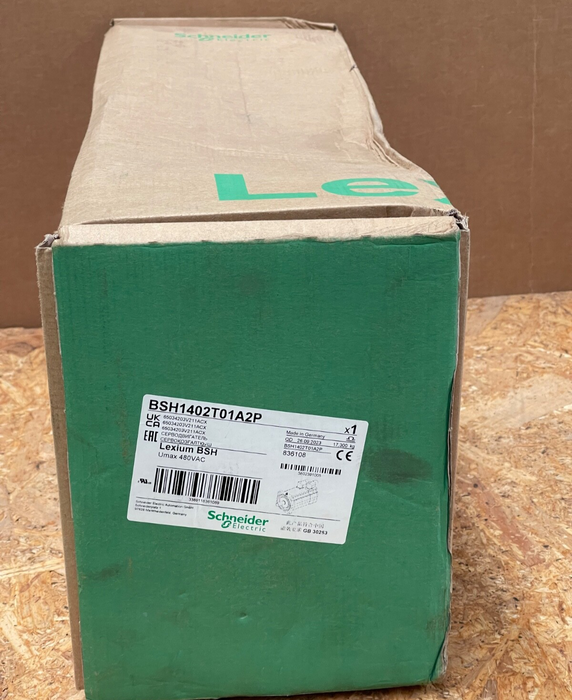

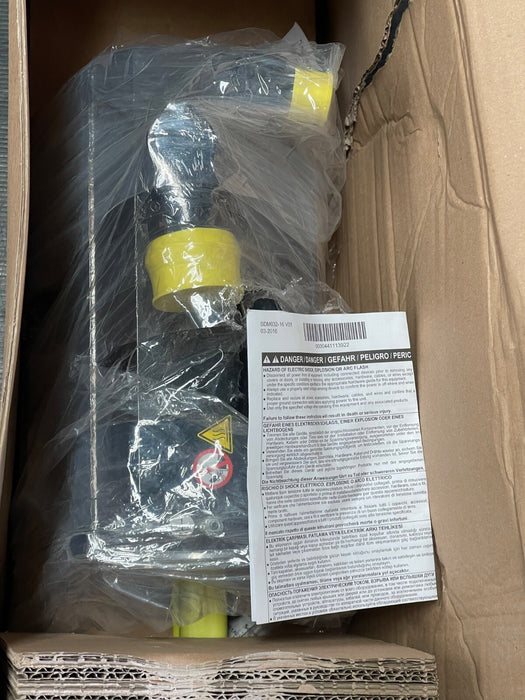

Schneider Electric – BSH1402T01A2P – 140 mm Lexium Synchronous Servo Motor

The Schneider Electric BSH1402T01A2P is a high-performance 3-phase synchronous servo motor from the Lexium series. With a 140 mm flange, it delivers 14.4 N·m continuous torque at up to 3000 rpm and peaks up to ~24.6 N·m. Featuring a smooth, untapped shaft, IP50 (IP54 optional), Hiperface/SinCos single-turn encoder, and heavy-duty connectors, it suits dynamic motion control applications in industrial automation.

Key Specifications:

• Model: BSH1402T01A2P – AC synchronous servo motor

• Rated Torque: 14.4 N·m

• Peak Torque: ~24.6 N·m

• Speed: 3000 rpm (max 4000 rpm)

• Power: ~2900 W

• Voltage: 200–480 V, 3-phase

• Flange/Shaft: 140 mm flange; Ø24 mm smooth, untapped

• Encoder: SinCos Hiperface single-turn (131 072 steps)

• Protection: IP50 (IP54 optional)

• Weight: ~16.6 kg
