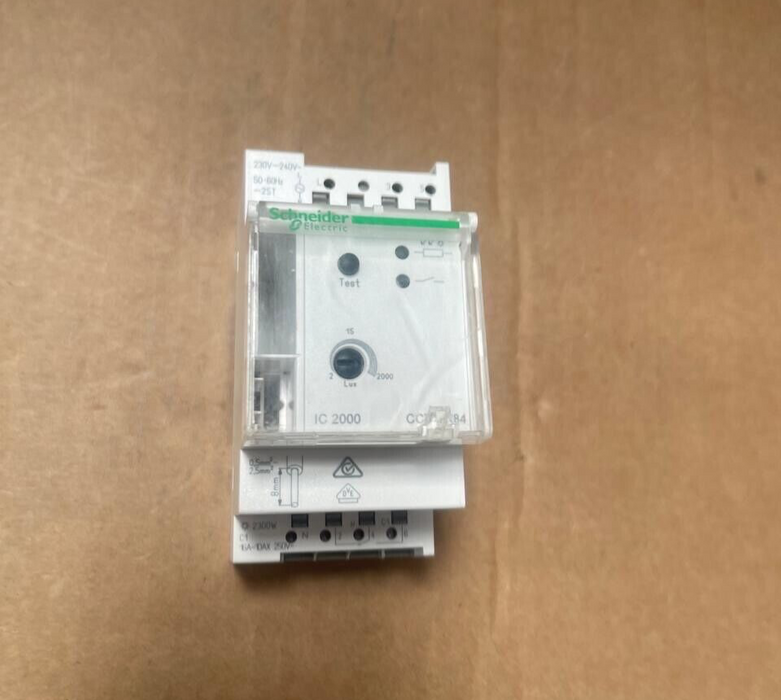

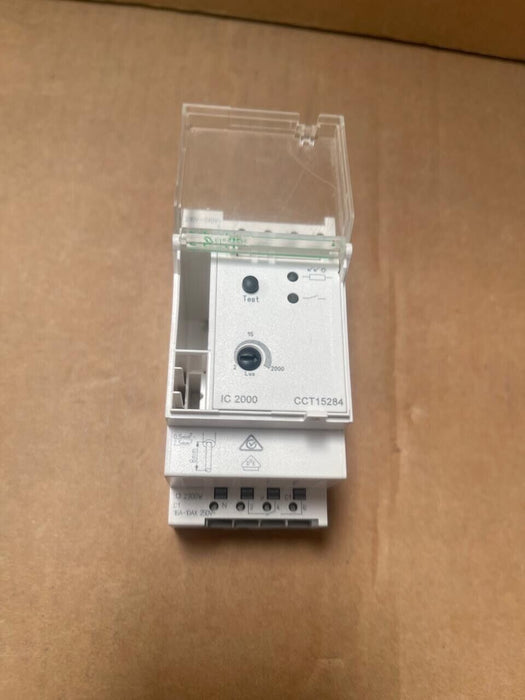

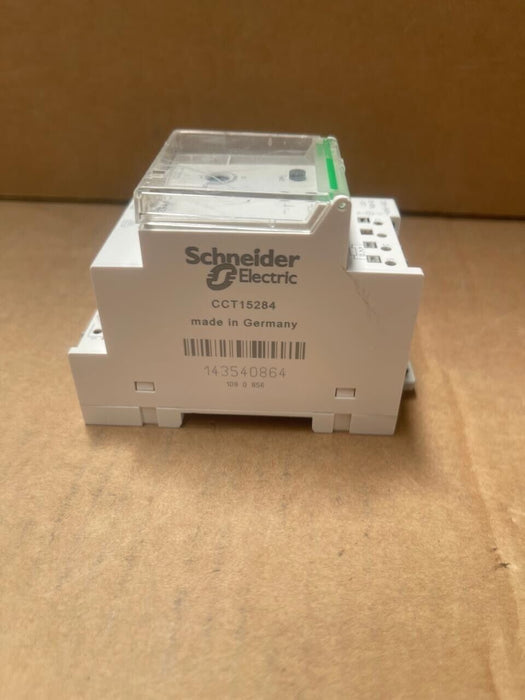

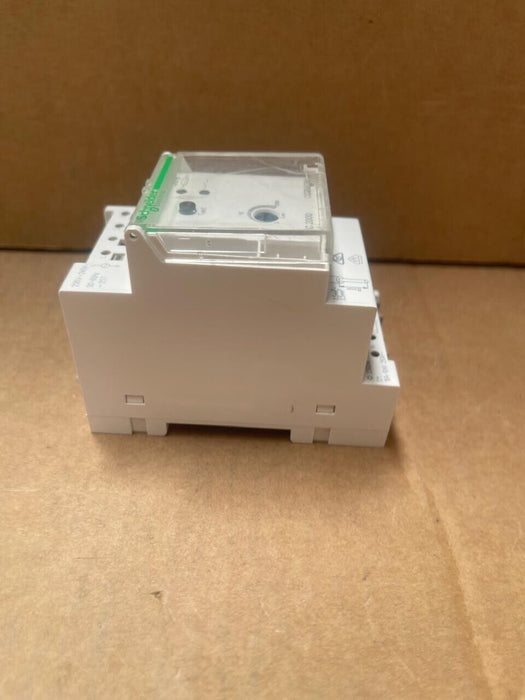

Schneider Electric - CCT15284 - Acti9 IC2000 Twilight Switch

The Schneider Electric CCT15284 is an Acti9 IC2000 twilight switch designed to automatically control lighting based on ambient light levels. It activates connected lighting when natural light decreases below a set threshold and deactivates it when natural light increases beyond the threshold, providing energy efficiency and convenience. This device is suitable for applications such as street lighting, signage illumination, and other outdoor lighting systems.

Key Features:

• Adjustable Sensitivity: Allows setting the activation threshold between 2 to 2000 lux to suit various environmental conditions.

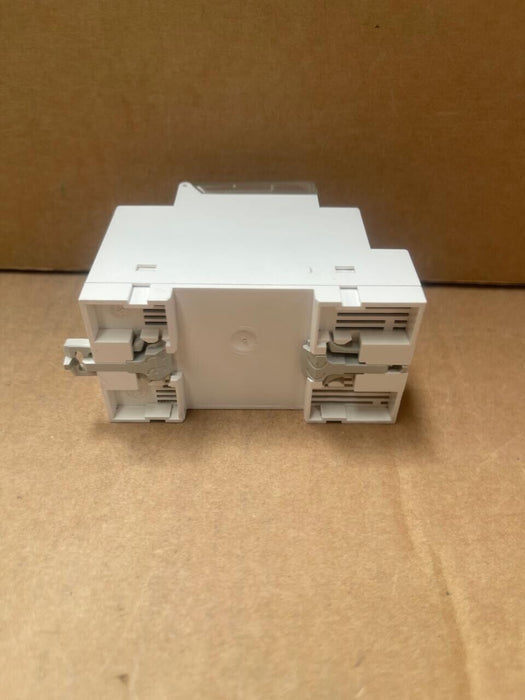

• DIN Rail Mounting: Designed for easy installation on standard DIN rails, facilitating integration into existing electrical panels.

• High Load Capacity: Capable of handling loads up to 16 A, accommodating various lighting setups.

• Operating Temperature Range: Functions effectively within temperatures from -25 °C to 50 °C, ensuring reliability in diverse climates.

Technical Specifications:

• Model Number: CCT15284

• Sensitivity Range: 2 to 2000 lux

• Maximum Operating Current: 16 A

• Mounting Type: DIN rail

• Operating Temperature: -25 °C to 50 °C

Applications:

• Outdoor Lighting: Automates control of streetlights, parking lot lights, and pathway illumination based on natural light levels.

• Signage Illumination: Ensures signs are lit during low-light conditions and conserves energy during daylight.

• Security Lighting: Activates perimeter and security lights at dusk and deactivates them at dawn.
