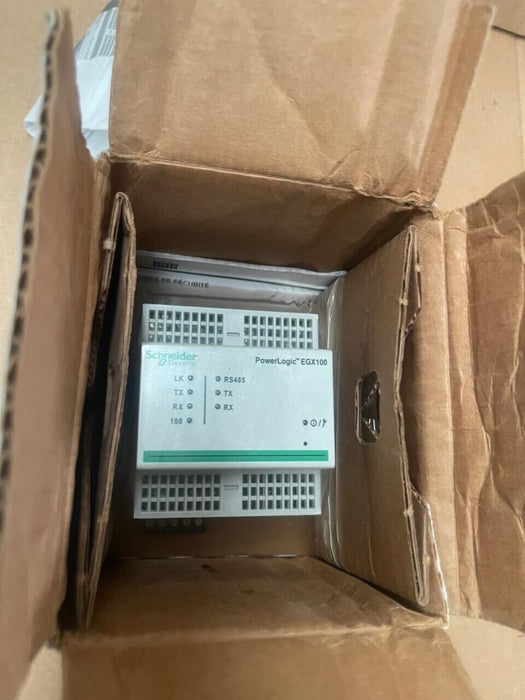

The Schneider Electric EGX100MG is an Ethernet gateway designed to provide seamless connectivity between Ethernet networks and serial devices utilizing Modbus protocols. This gateway facilitates efficient data acquisition and monitoring in various industrial applications, ensuring reliable communication between networked devices.

Key Features:

• Ethernet Connectivity: Equipped with a 10/100Base-TX Ethernet port, the EGX100MG enables high-speed data transmission over Ethernet networks.

• Serial Communication: Features an optically isolated RS485/RS232 serial port compatible with both 2-wire and 4-wire configurations, supporting Modbus RTU/ASCII and PowerLogic (SY/MAX) protocols.

• Device Integration: Supports direct connection of up to 32 devices and indirect connection of up to 247 devices, allowing for scalable system integration.

• Web-Based Management: Offers a user-friendly web interface for configuration, diagnostics, and maintenance, accessible via standard web browsers.

• Power Options: Supports Power over Ethernet (PoE) Class 3, eliminating the need for separate power supplies, and can also operate on a 24 V DC power source.

Technical Specifications:

• Dimensions: 80.8 mm (H) x 72 mm (W) x 65.8 mm (D)

• Mounting: DIN rail mountable, occupying 3 DIN modules

• Operating Temperature: -25°C to 70°C

• Humidity Rating: 5% to 95% relative humidity (non-condensing) at +55°C

• Compliance Standards: Meets international safety and electromagnetic compatibility standards, including IEC 60950, UL 508, and EN 60950.

Applications:

The EGX100MG is ideal for integrating Modbus-compatible devices into Ethernet networks across various industrial sectors, including:

• Energy Management: Facilitating real-time monitoring and control of electrical distribution systems.

• Building Automation: Enabling centralized management of HVAC, lighting, and security systems.

• Factory Automation: Providing seamless communication between production equipment and supervisory control systems.

Schneider Electric - EGX100MG - PowerLogic Ethernet Gateway
