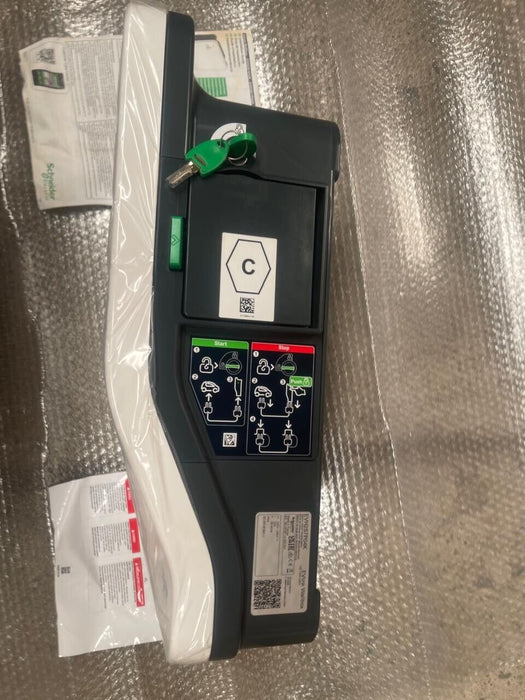

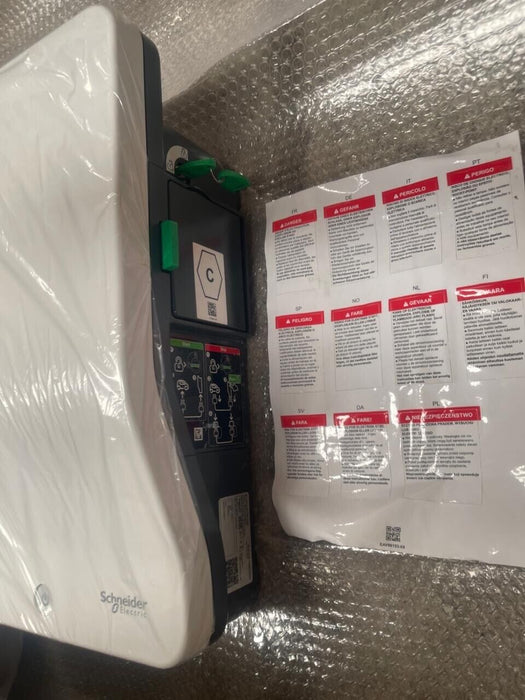

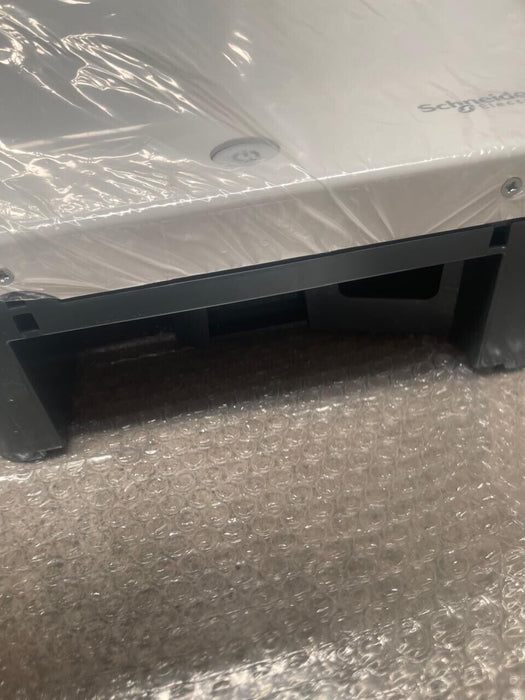

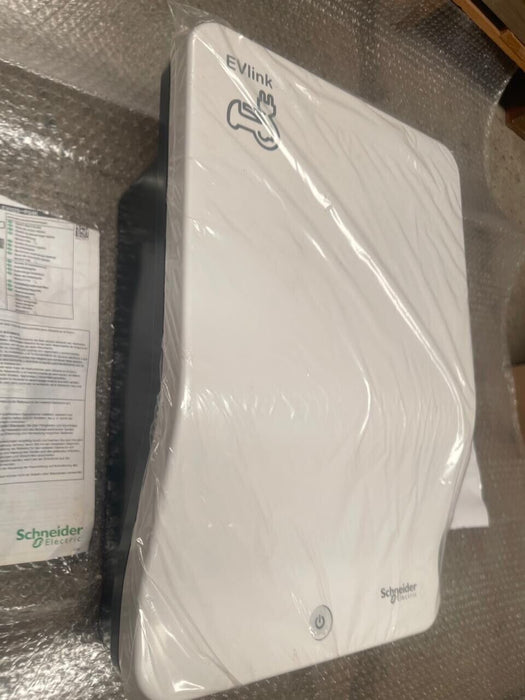

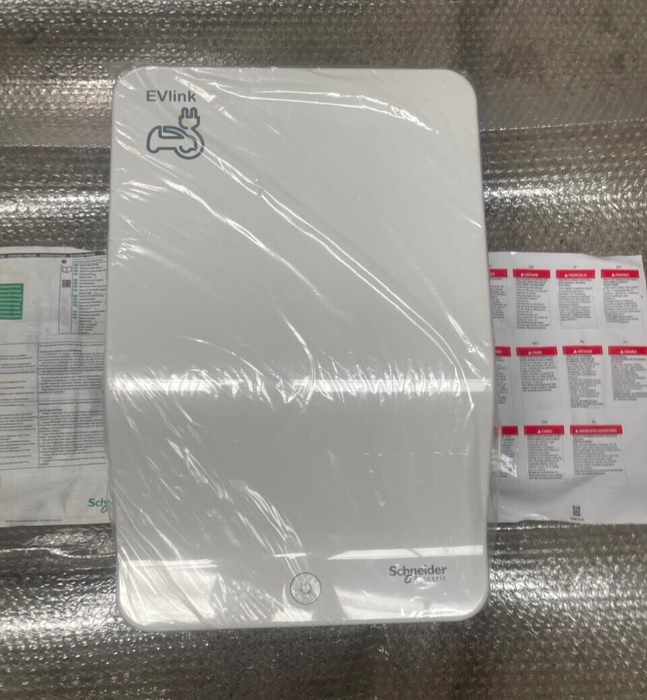

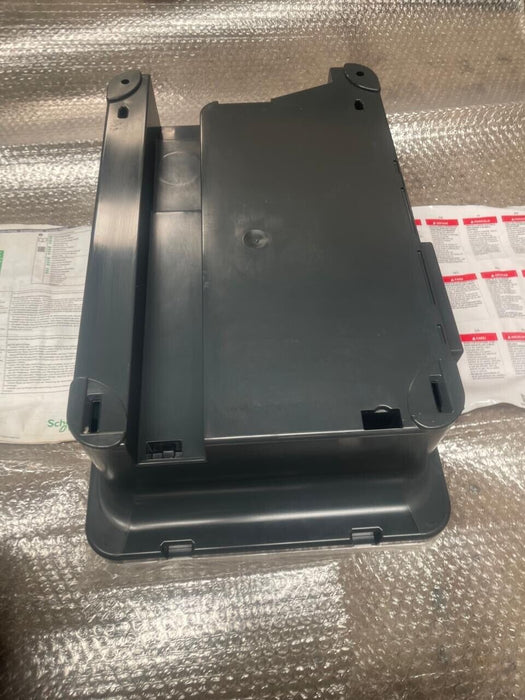

Schneider Electric - EVH2S7P04K - EVlink Wallbox 7.4 kW with Type 2 Socket

The Schneider Electric EVH2S7P04K is part of the EVlink Wallbox series, serving as a reliable charging station for electric vehicles. Designed for both residential and commercial use, this wall-mounted unit delivers up to 7.4 kW of power through a Type 2 socket outlet equipped with a shutter for enhanced safety. Its robust construction ensures durability, making it suitable for various environments.

Key Features:

• Power Output: Delivers up to 7.4 kW, enabling efficient charging of electric vehicles.

• Type 2 Socket with Shutter: Features a Type 2 socket outlet with an integrated shutter, complying with safety standards to prevent accidental contact.

• User-Friendly Interface: Equipped with intuitive indicators for charging status, facilitating easy operation.

• Durable Design: Built to withstand various environmental conditions, suitable for both indoor and outdoor installations.

Technical Specifications:

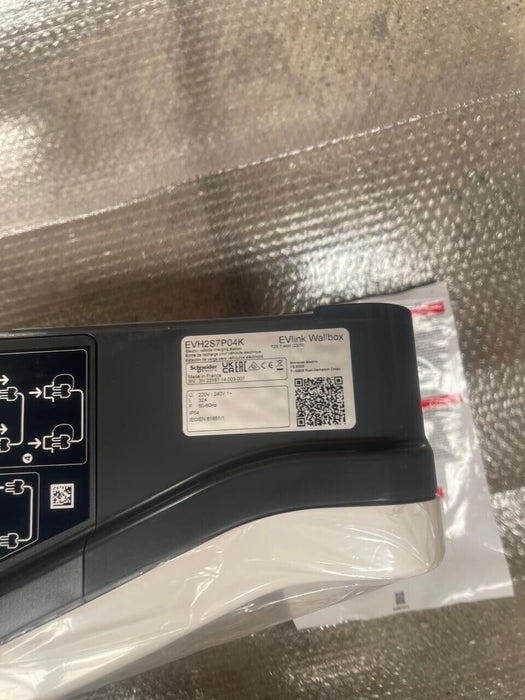

• Model Number: EVH2S7P04K

• Rated Supply Voltage: 220–240 V AC at 50/60 Hz

• Earthing System Compatibility: TT and TN systems

• Number of Inputs: 1

• Input Type: Contact for power limitation

• Dimensions (H x W x D): 480 mm x 331 mm x 170 mm

• Operating Temperature Range: -30 °C to +50 °C

Applications:

The EVH2S7P04K is suitable for:

• Residential Charging: Providing homeowners with a convenient and efficient solution for charging electric vehicles.

• Commercial Properties: Offering businesses the capability to support employees and customers with EV charging facilities.

• Public Parking Areas: Equipping public parking spaces with reliable EV charging options to promote sustainable transportation.

Weight: Approximately 6.5 kg
