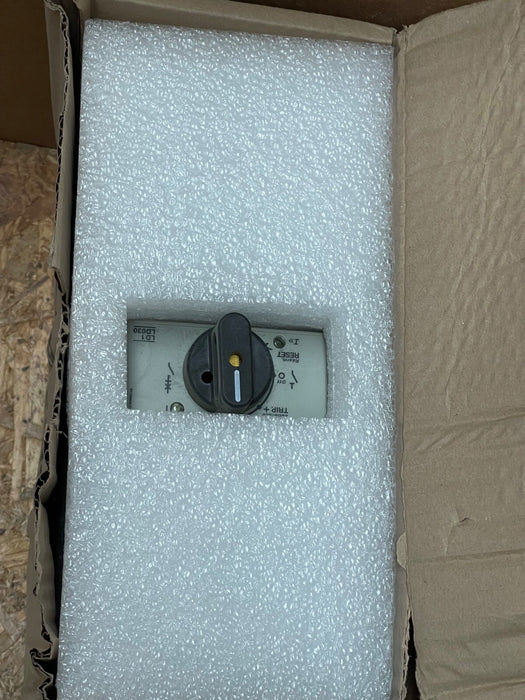

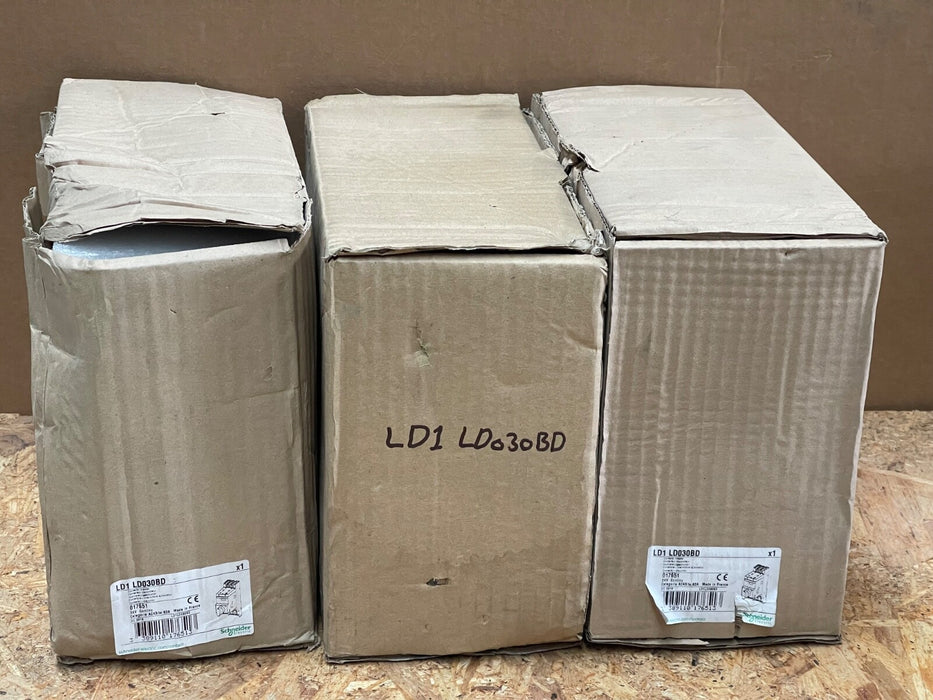

Schneider Electric – LD1LD030BD – TeSys LD1 3‑Pole Contactor‑Breaker 63 A, 690 V

The Schneider Electric LD1LD030BD is a rugged TeSys LD1 contactor‑breaker designed for direct switching and protection of three-phase motors up to 63 A at 690 V AC (AC‑43 duty). Featuring an AC‑43 rated 24 VAC coil, this integrated device combines contactor and circuit-breaker functionalities, offering both motor control and short-circuit/overload protection in compact form.

Key Features:

• Model: LD1LD030BD

• Brand: Schneider Electric (TeSys LD1 series)

• Pole Configuration: 3P (three-phase)

• Current Rating: 63 A

• Voltage Rating: Up to 690 V AC, suitable for AC‑43 applications

• Coil Voltage: 24 VAC

• Integrated Protection: Combines contactor and thermal/magnetic circuit-breaker in one unit

• Mounting Type: DIN-rail or panel-mount compatible with TeSys accessories
