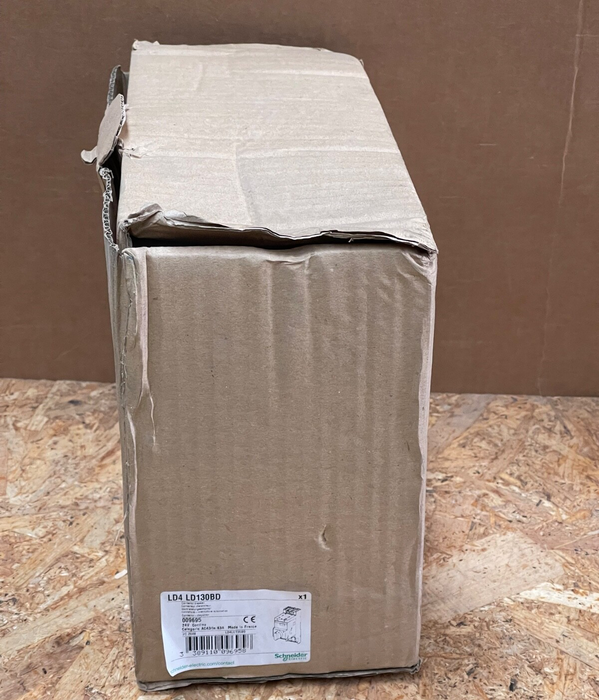

Schneider Electric – LD4LD130BD – TeSys Integral Contactor‑Breaker 63 A, 690 V

The Schneider Electric LD4LD130BD is a compact, self-protected TeSys Integral contactor‑breaker that combines a three-pole contactor and thermal/magnetic circuit breaker. Engineered for motor control applications, it handles up to 63 A at 690 V AC with AC‑43 duty, incorporating a 24 V DC coil for switching.

Key Features:

• Model: LD4LD130BD

• Brand: Schneider Electric (TeSys Integral series)

• Configuration: 3-pole contactor with integrated breaker (63 A)

• Ratings: Up to 690 V AC; suitable for AC‑1 to AC‑43 applications

• Coil Voltage: 24 V DC

• Motor Capacity: 20 HP @ 230 V; 60 HP @ 575 V

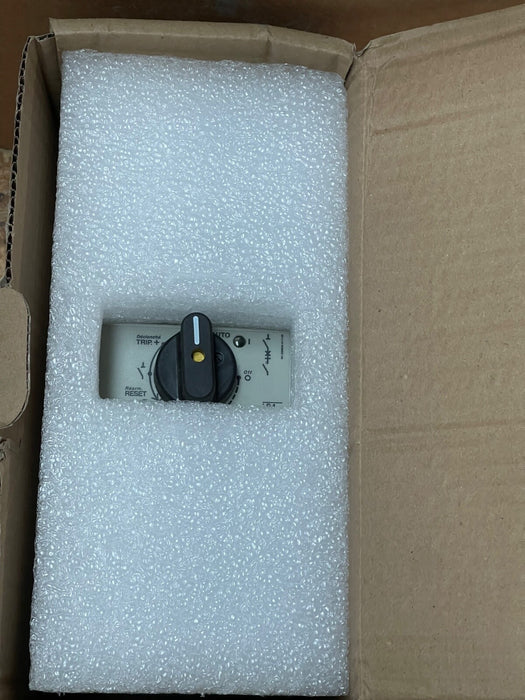

• Protection: Built-in thermal/magnetic trip for overload and short-circuit protection; non-reversing unit with black rotary knob

• Mounting & Enclosure: DIN-rail or panel mounting; IP20 protection
