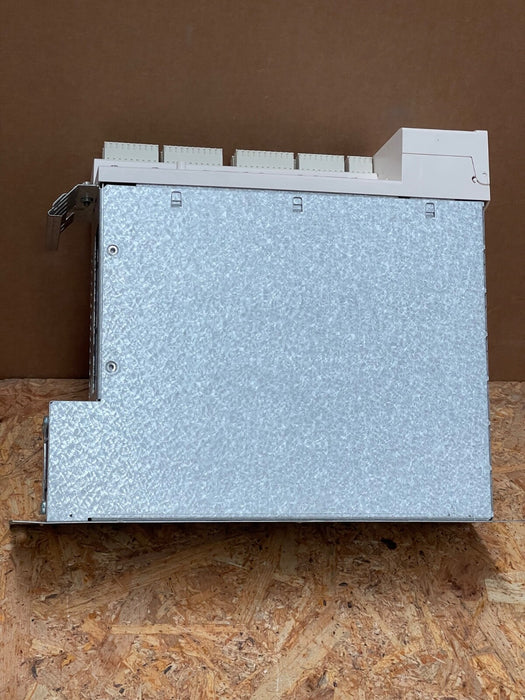

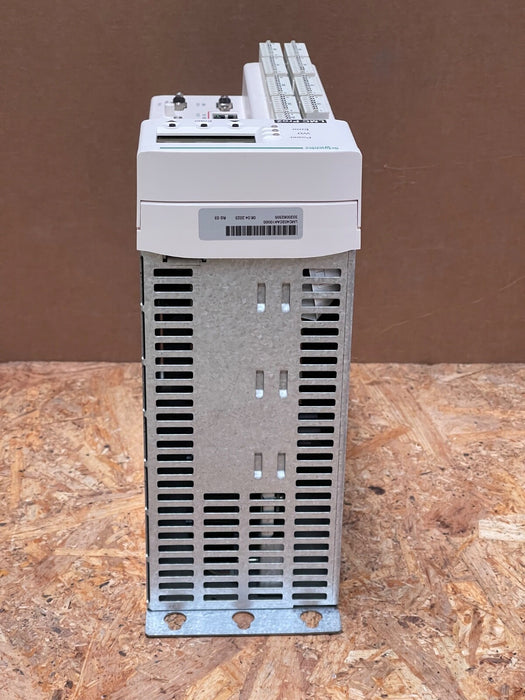

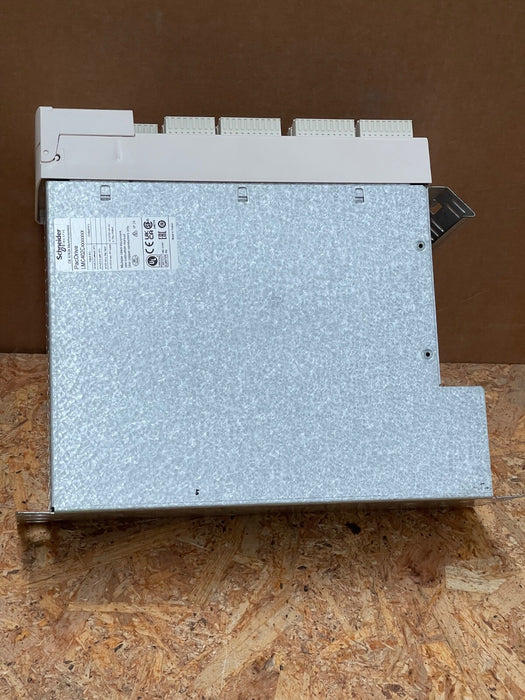

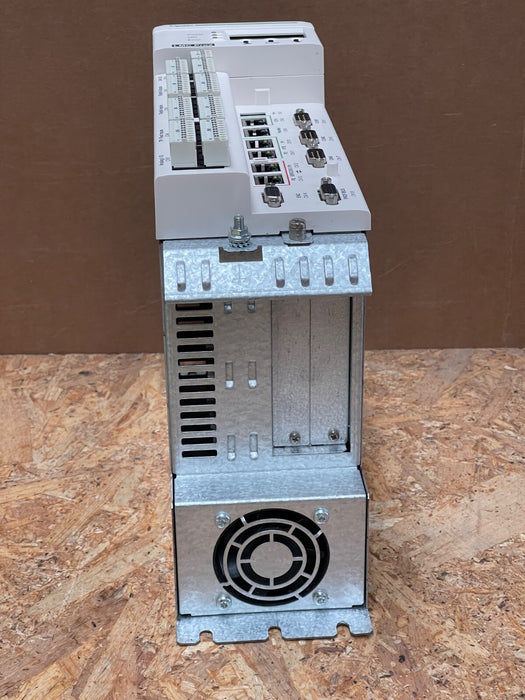

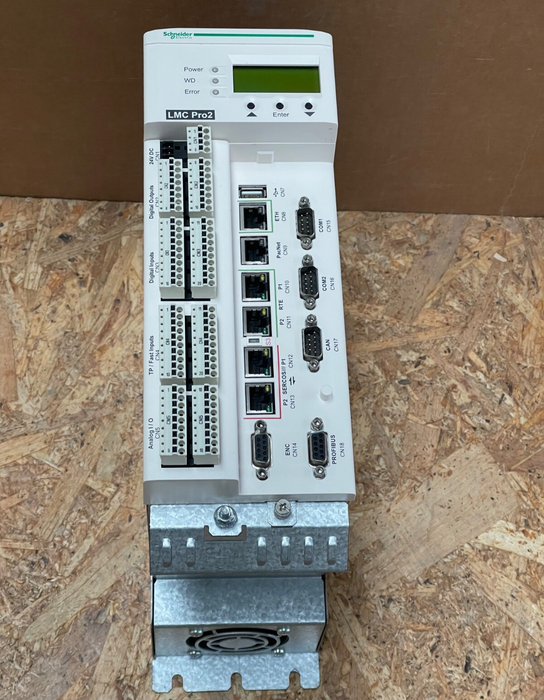

The Schneider Electric LMC402CAA10000 is a high-performance motion controller from the PacDrive 3 platform, designed to control up to 16 physical servo axes, scalable to 130 using Sercos III. This compact, IP20-rated controller is ideal for high-speed machine automation, offering advanced motion coordination, integrated digital and analog I/O, and multiple communication interfaces including Ethernet, CANopen, and serial ports.

Key Features:

Model / P/N: LMC402CAA10000
Axis Support: 16 axes standard, scalable up to 130 axes
Communication Interfaces:
- 2× Ethernet Sercos III
- 1× Ethernet for diagnostics
- 1× CANopen
- 1× RS-232/RS-485
- 1× USB-A
Digital Inputs: 20 total (including 4 interrupt and 16 probe inputs)
Digital Outputs: 12, max 250 mA per channel
Analog Inputs: 2 (±10 V or 0–20 mA, 12-bit resolution)
Power Supply: 24 V DC, approx. 36 W consumption
Memory: 512 MB DDR2 RAM, 128 kB non-volatile memory
Enclosure: IP20, DIN-rail mountable
Dimensions: 100 × 243 × 310 mm
Operating Temperature: 5 to 55 °C

Schneider Electric – LMC402CAA10000 – PacDrive 3 Motion Controller, 16-Axis
