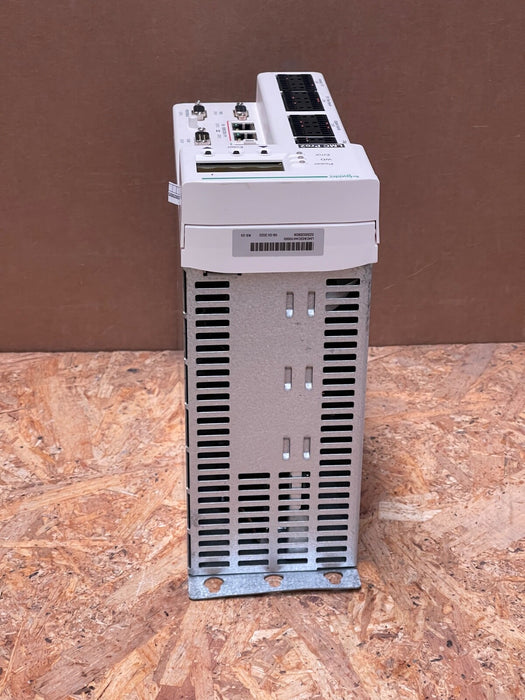

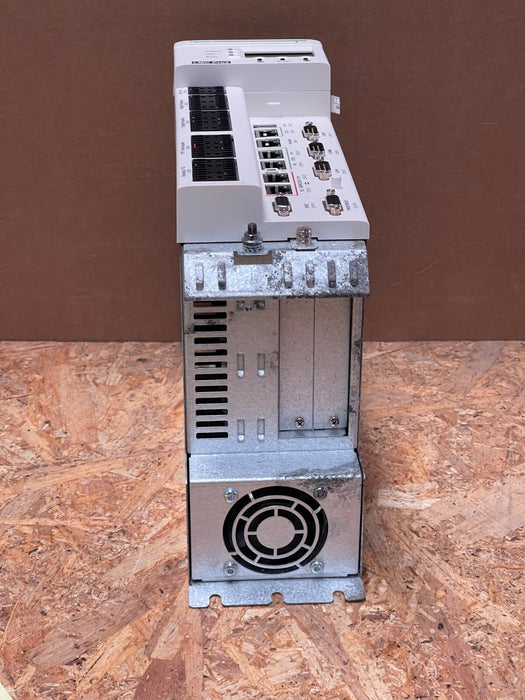

The Schneider Electric LMC802CAA10000 is a flagship motion controller in the PacDrive 3 family, capable of synchronizing up to 130 servo or robot axes with a lightning-fast 1 ms Sercos III update rate. This “basic” acceleration kit provides robust motion control and versatile I/O in a compact, industrial-grade IP20 module — ideal for OEMs and high-performance machine automation.

Key Features

Model / P/N: LMC802CAA10000 – 130‑axis motion controller (basic kit)
Axis Count: Supports up to 130 servo/robot axes; scalable virtual axis capacity up to 255
Digital I/O:
- 20 digital inputs (IEC 61131‑2 Type 1)
- 4 interrupt inputs
- 16 touch‑probe inputs
- Configurable input filtering (100 µs–5 ms)
Digital Outputs: 16 channels, each rated 250 mA (leakage < 0.4 mA)
Analog Inputs: 2 channels, ±10 V/0–20 mA, 12‑bit resolution

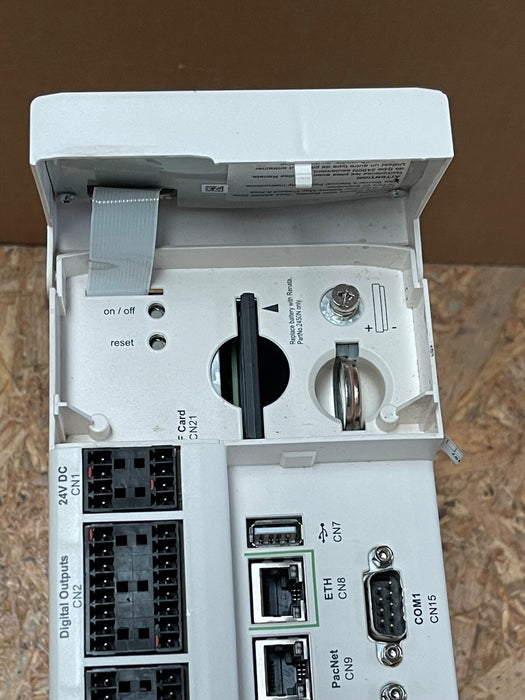

Communications:
- 2× Ethernet (Sercos III)
- 1× Ethernet (PacNet/FTP/HTTP)
- 2× RJ45 real-time Ethernet
- CANopen (D‑sub)
- Profibus DP (D‑sub)
- RS232/RS422/RS485 (2 ports)
- USB‑A
- Encoder interface
Power & Consumption: 24 V DC, 1 A supply, ~36 W typical
Memory: 256 kB non‑volatile RAM, 1 GB DDR3L

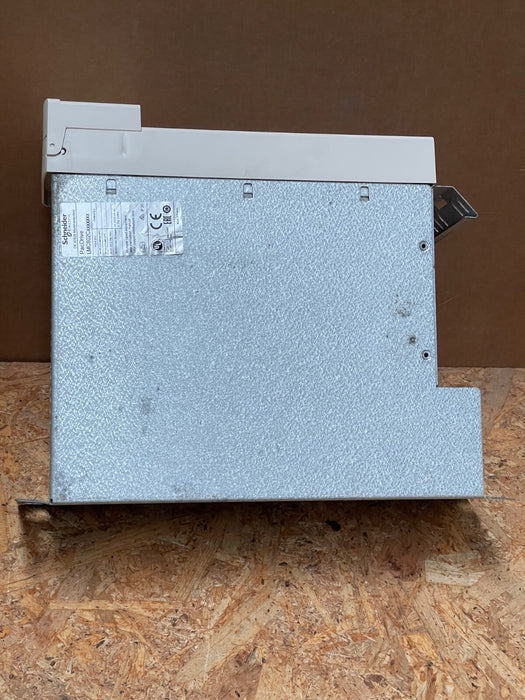

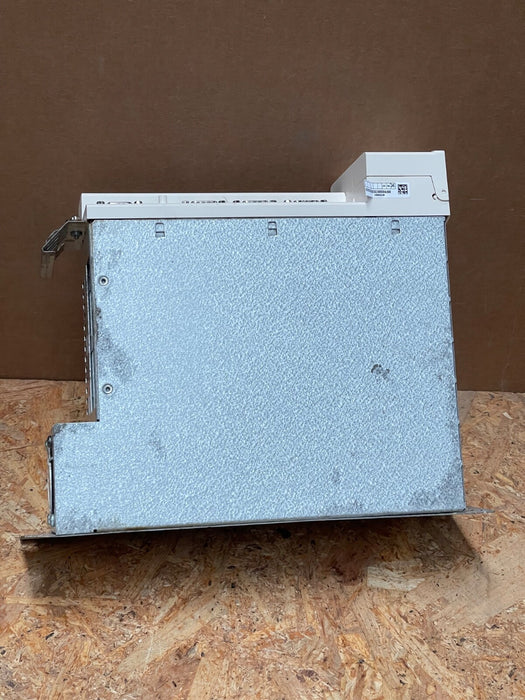

Physical / Environmental:
- Dimensions: 100×243×310 mm; Weight: 3.5 kg
- IP20 rated, operating temp 5–55 °C; meets UL 508C, EN/IEC 61131‑2, CSA, CE, EAC
- Vibration: 3.5 mm (5–8.4 Hz); 10 m/s² (8.4–150 Hz); Shock: 150 m/s² (6 ms)
