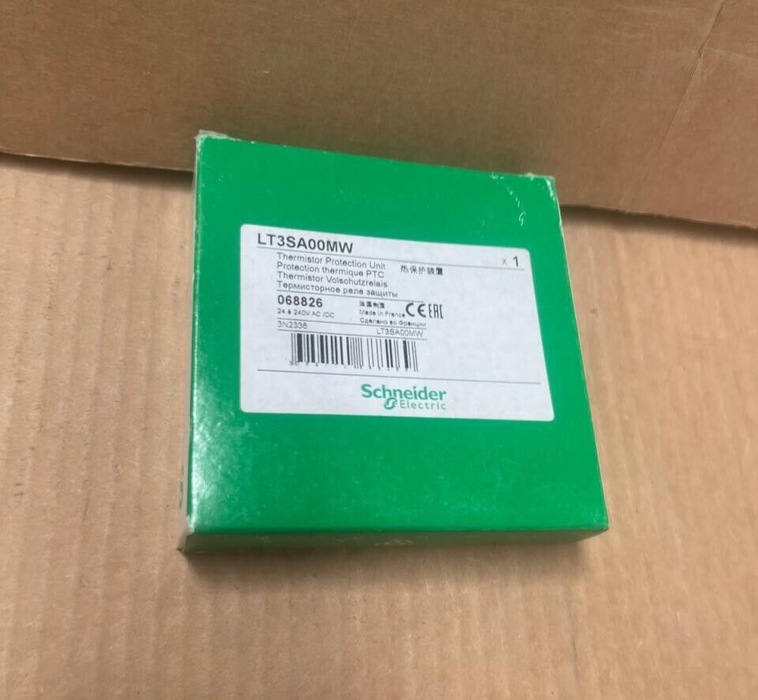

The Schneider Electric LT3SA00MW is a TeSys LT3 thermistor protection relay designed to safeguard motors and other equipment by monitoring temperature through PTC (Positive Temperature Coefficient) probes. This relay features an automatic reset function and operates within a multi-voltage range of 24 to 230 V AC/DC, providing flexibility for various applications. It is equipped with two normally open (NO) contacts for effective control in industrial settings.

Key Features:

• Automatic Reset: Enhances operational efficiency by automatically restoring the system after normal conditions are reestablished.

• Wide Voltage Range: Compatible with supply voltages from 24 to 230 V AC/DC, accommodating diverse power systems.

• Compact Design: Facilitates easy integration into existing control panels and systems.

• Reliable Protection: Utilizes PTC probes to monitor temperature, preventing equipment damage due to overheating.

Technical Specifications:

• Model Number: LT3SA00MW

• Supply Voltage: 24–230 V AC/DC

• Contacts: 2 NO

• Reset Type: Automatic

• Mounting: DIN rail

• Certifications: [Information not specified]

• Dimensions: [Information not specified]

• Weight: [Information not specified]

Applications:

• Motor Protection: Monitors motor temperature to prevent overheating and potential damage.

• Industrial Equipment: Provides thermal protection for various machinery and equipment in industrial environments.

• Automation Systems: Ensures safe operation by preventing thermal overloads in automated processes.
