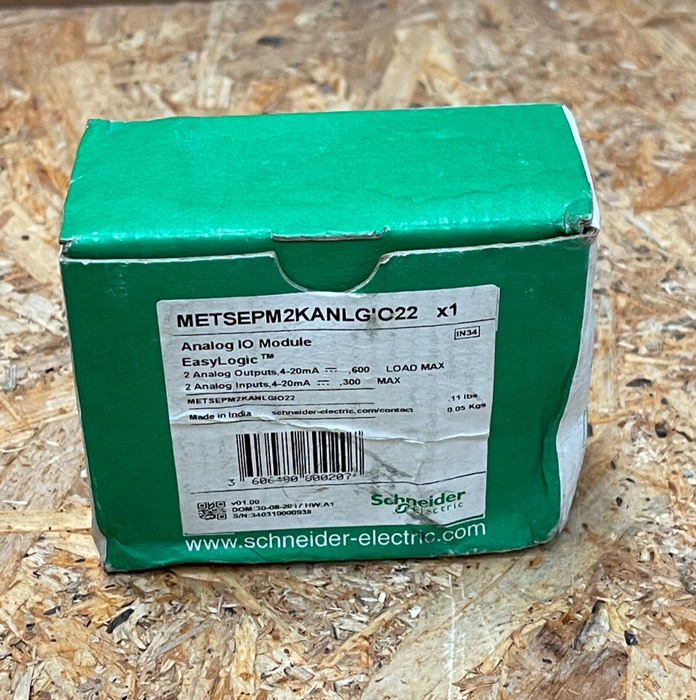

Schneider Electric – METSEPM2KANLGIO22 – EasyLogic PM2X30 Analog I/O Module

The Schneider Electric METSEPM2KANLGIO22 is a high-quality analog expansion module for EasyLogic PM2100/PM2200 series meters (PM2130, PM2230). This PM2K2AIAO module adds two 4–20 mA analog sensor inputs and two configurable 4–20 mA analog outputs, enabling deeper integration of external parameters—up to 40 instantaneous values from the meter—into measurement and control workflows.

Key Features:

• Model: METSEPM2KANLGIO22 (EasyLogic PM2X30 I/O Module)

• Brand: Schneider Electric (PowerLogic / EasyLogic family)

• Compatibility: Expands PM2130 & PM2230 meters only; single I/O module slot

• AI Specs: 2 analog inputs, 4–20 mA, ≤ 300 Ω input impedance

• AO Specs: 2 analog outputs, 4–20 mA, < 600 Ω load impedance, powered by 12 V AC from the meter

• Power/Insulation: 12–30 V AC supply, 2.5 kV insulation voltage

• Form Factor: Slim 90.5 × 14.6 × 53 mm, 50 g

• Environment: –10 to +60 °C operation; –25 to +70 °C storage

• Compliance: EU RoHS, REACh, China RoHS; Green Premium environmental rating
