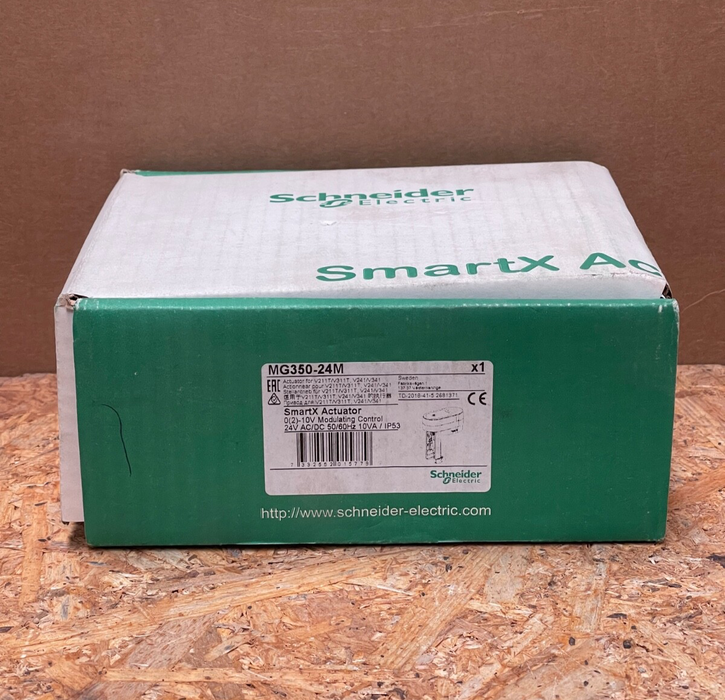

Schneider Electric – MG350‑24M – 350 N Globe Valve Actuator, 24 Vac/dc

The Schneider Electric MG350‑24M is a compact electro-mechanical modulating actuator designed for two- and three-way globe valves (e.g., V211, V241, V311 series). Delivering 350 N thrust and featuring stable force control, auto calibration, stall protection, and a Tri‑color LED status indicator, this actuator ensures precise HVAC and hydronic control in commercial and industrial applications.

Key Features & Specifications:

• Model: MG350‑24M – Globe valve actuator (Schneider SpaceLogic / SmartX series)

• Supply Voltage: 24 Vac/dc ±20%; 7.2 VA during movement, 0.4 W hold

• Thrust/Force: 350 N (≈78 lbf)

• Stroke Time: Approximately 80 s for 20 mm stroke (4 s/mm)

• Control Input: Selectable 0–10 V or 2–10 V DC (min. 100 kΩ input impedance)

• Auto-Calibration: Adapts travel limits automatically at initial power-up

• Status Indication: Tri-color LED (operation, calibration, alarm)

• Protection: IP53 vertical mount, –5…+55 °C; 95 % RH

• Manual Override: 3 mm hex for manual adjustment

• Mounting: ISO 5211 mounting flange; removable wiring terminal block and cable gland
