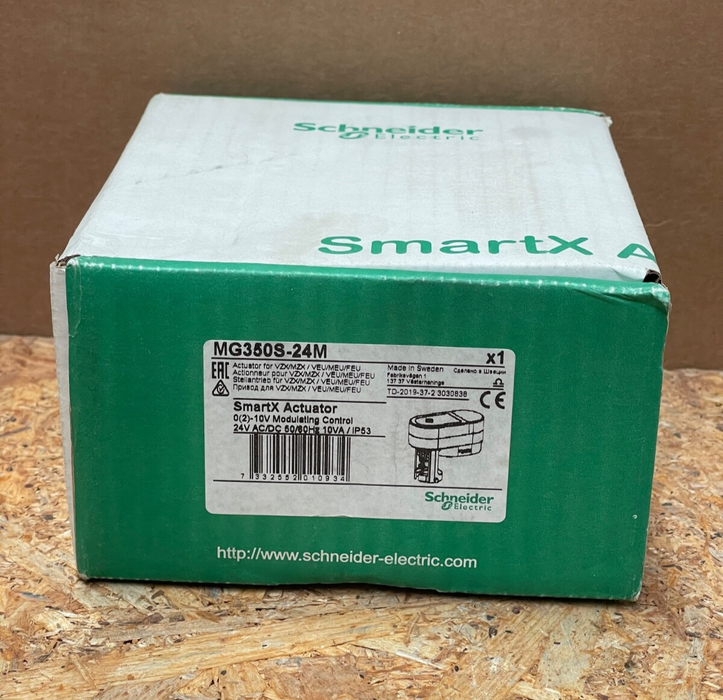

Schneider Electric – MG350S‑24M – 350 N Modulating Globe Valve Actuator

The Schneider Electric MG350S‑24M is a compact, non-spring-return, modulating globe valve actuator ideal for precision HVAC control. Compatible with VZX/MZX/Satchwell valves, it delivers 350 N thrust and auto-calibrates at startup. It features selectable 0–10 V or 2–10 V control, stable force control, stall protection, and diagnostic LEDs—all protected in an IP53, corrosion-resistant housing.

 Key Specifications

• Model / Part No.: MG350S‑24M – SpaceLogic SmartX series

• Thrust: 350 N (78 lbf)

• Control Signal: 0–10 V or 2–10 V DC (field-selectable)

• Power: 24 Vac/dc ±20%; 7.2 VA moving, 0.4 W holding

• Stroke Time: ~80 s for 20 mm (approx. 4 s/mm)

• Feedback: Auto-adapting, stall-proof stepper control

• Indicators: Color LEDs for status, calibration, and fault diagnostics

• Protection: IP53 vertical mount, –5…+55 °C ambient, 30 dBA noise

• Mounting: ISO 5211 interface; removable terminal block and cable gland
