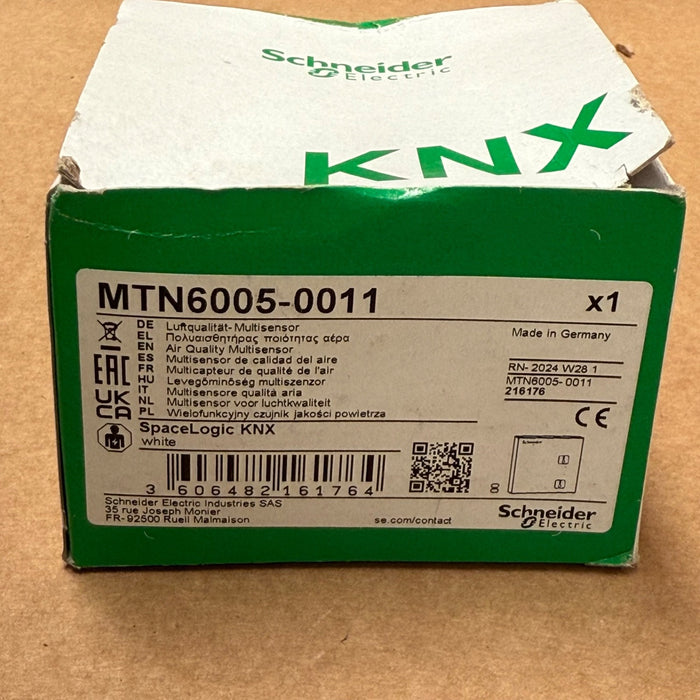

Schneider Electric – MTN6005‑0011 – KNX Air Quality Multisensor

The Schneider MTN6005‑0011 is a high-precision, surface-mounted KNX multisensor that monitors indoor air quality by measuring CO₂, temperature, relative humidity, and air pressure. Featuring 5 programmable inputs and a user-adjustable temperature setpoint, it’s ideal for smart building management, HVAC control, and energy-efficient spaces.

 Key Specifications

• Part Number: MTN6005‑0011 (SpaceLogic KNX series)

• Sensors: CO₂ (390–5000 ppm), temperature (0–50 °C), relative humidity (0–100 %), atmospheric pressure (300–1100 hPa)

• Inputs: 5; (2 binary, 1 binary/0–10 V analog, 2 binary/PT1000/NTC/PTC configurable)

• Power & Bus: KNX bus-powered, ≤10 mA current from bus

• Mounting & Housing: Surface-mount, polar white (RAL 9003), 80.5×80.5×17 mm, IP20

• Operating Range: –5 °C to +50 °C ambient

• KNX Integration: 242 communication objects, supports CO₂, dew point, VAV control, alarms, setpoint adjustments
