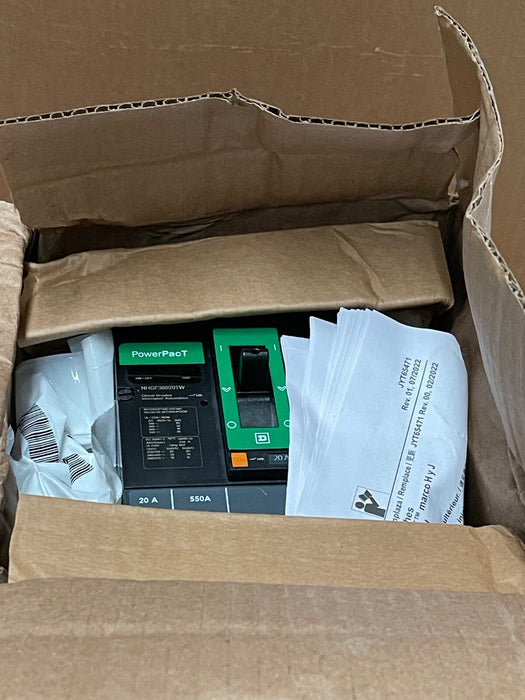

Schneider Electric – NHGF36020TW – PowerPact H-Frame MCCB 20 A, 65 kA, Therm-Mag

The Schneider Electric NHGF36020TW is a PowerPact H-frame molded-case circuit breaker designed for DIN-rail mounting. Featuring a robust thermal-magnetic trip unit, it provides reliable protection at 20 A with high interrupt capacity—ideal for power and motor circuit safeguarding in industrial applications.

Key Features:

• Model: NHGF36020TW – PowerPact H‑Frame MCCB, DIN-rail mount

• Current Rating: 20 A

• Interrupting Capacity:

  • Up to 65 kA (PowerPact multistandard)

  • Typical 18 kA @ 480 V AC, UL-rated

• Voltage Rating:

  • Up to 600 V AC (600Y/347 V), and DC rated up to 525 V

• Mounting Style: Clip-on DIN-rail; also supports flush backplate mounting

• Trip Unit: Thermo-magnetic—overload and short-circuit protection with fixed settings

• Durability & Protection: Rated IP40, IK07; 4,000 mechanical and electrical cycles

• Certifications: UL 489, CSA C22.2, CE; compliant with IEC standards

• Connection: Screw terminals with EverLink lugs; separate control-wire terminal
