The Schneider Electric NSYCCOFST30V is a ClimaSys CC series filterstat thermostat/controller designed for HVAC enclosures. It monitors filter cleanliness and airflow, offering intelligent control with a built-in OLED display, alarm relay, and analog output. Suitable for 19–30 V AC/DC systems with Modbus connectivity for modern enclosure climate management.

Key Features & Technical Specifications:

Model: NSYCCOFST30V (ClimaSys CC filterstat controller, 30 V variant)
Power Supply: 20–28 V AC 50/60 Hz or 19–30 V DC
Display: OLED screen, shows filter status, temperature, alarms, network connection info
Sensor Ports: up to 4 ports for fans, temperature, dust/filter sensors (e.g., NSYCVF fans, NSYCCAFSDUST)
Relay Output: SPST relay, 5 A maximum, changeover contact for alarm control
Analog Output: 0–10 V proportional, indicates filter clogging (0–100%) via V+/V– terminals
Operating Temperature: −40 °C to +70 °C; memory retains settings during power loss
Dimensions: 80 × 80 × 41 mm; DIN-rail compatible; IP54 rated
Comms: Modbus RTU for sensor/controller integration and remote monitoring

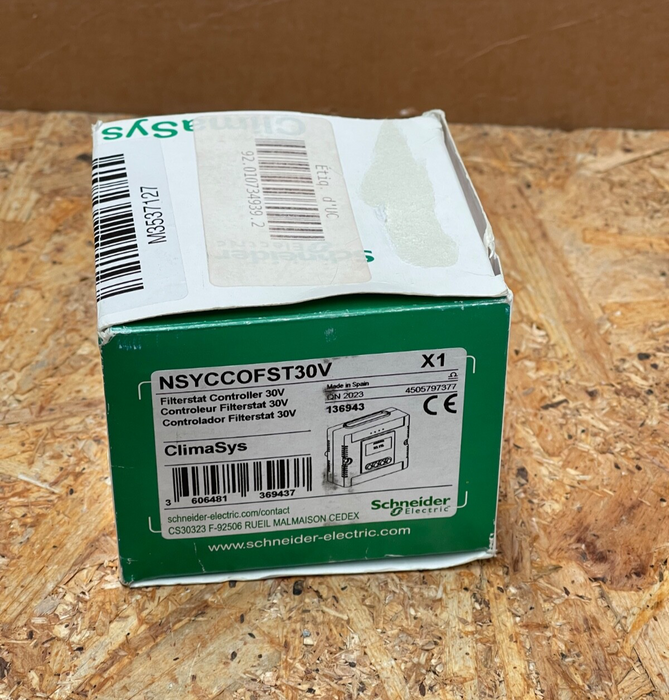

Schneider Electric – NSYCCOFST30V – ClimaSys CC Filterstat Controller 30 V AC/DC
