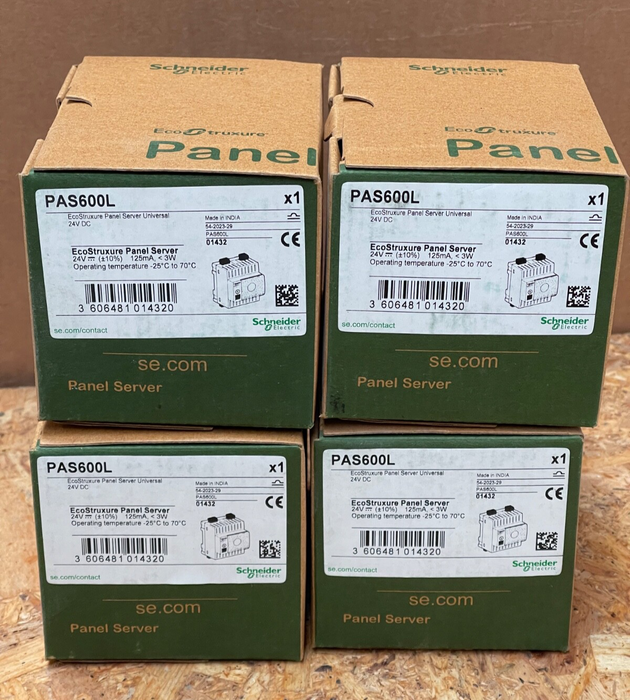

Schneider Electric - PAS600L - EcoStruxure Panel Server, Modbus Gateway, 24 V DC

The Schneider Electric PAS600L is a universal wireless concentrator and Modbus gateway designed to seamlessly integrate wired and wireless smart IoT devices into energy monitoring systems. Operating on 24 V DC, it supports various communication protocols and offers easy configuration through embedded web pages.

Key Features:

• Model: PAS600L

• Brand: Schneider Electric

• Power Supply: 24 V DC

• Communication Interfaces:

  • 2 × RJ45 Ethernet ports (10/100BASE-T)

  • RS485 serial port

  • Wi-Fi (2.4 GHz)

  • Wireless IEEE 802.15.4



• Supported Protocols:

  • Modbus TCP/RTU

  • DHCP

  • HTTPS

  • NTP/SNTP

  • IPv4/IPv6



• Device Capacity:

  • Up to 64 Modbus RTU devices

  • Up to 40 IEEE 802.15.4 devices



• Memory: 512 MB NAND

• Inputs: 2 dry-contact/pulse inputs

• Mounting: DIN rail (clip-on)

• Dimensions (W × H × D): 72 mm × 85 mm × 70.2 mm

• Protection Rating: IP40 (front), IP20 (casing)

• Operating Temperature: -25 °C to +70 °C

• Certifications: CE, cULus, RCM, UKCA, FCC, IC

• Applications: Ideal for integrating wireless smart IoT and Modbus devices into energy monitoring systems, facilitating seamless communication with edge control software or cloud applications.
