The Schneider Electric RM35TF30 is a Harmony series multifunction control relay designed to monitor 3-phase power supplies. It ensures the proper sequence of phases (L1, L2, L3) and detects phase failures, phase imbalances, and voltage anomalies within a range of 220 to 480 V AC. This relay is essential for safeguarding equipment by providing automatic shutdown management and fault information, facilitating quick fault identification and troubleshooting.

Key Features:

• Phase Monitoring: Detects incorrect phase sequences, phase failures, and phase imbalances to protect 3-phase systems.

• Voltage Surveillance: Monitors undervoltage and overvoltage conditions in window mode, ensuring voltage levels remain within specified thresholds.

• Adjustable Time Delay: Features an adjustable time delay ranging from 0.1 to 10 seconds (±10% of the full-scale value) to accommodate various application requirements.

• Compact Design: With a width of 35 mm (1.38 inches), it simplifies panel design and is compatible with standard 3-pole circuit breakers.

Technical Specifications:

• Model Number: RM35TF30

• Supply Voltage Range: 220 to 480 V AC (phase-to-phase)

• Voltage Detection Threshold: Below 194 V

• Control Circuit Frequency: 50/60 Hz (±10%)

• Output Contacts: 2 Changeover (DPDT) contacts

• Maximum Switching Voltage: 250 V AC/DC

• Maximum Switching Current: 5 A AC/DC

• Power Consumption: Up to 22 VA at 400 V AC, 50 Hz

• Mounting: 35 mm symmetrical DIN rail (EN/IEC 60715)

• Dimensions: Width: 35 mm (1.38 inches)

• Certifications: CE, UL, CSA, GL, GOST, C-Tick

Applications:

• Industrial Automation: Ensures the correct phase sequence and voltage levels in automated machinery and equipment.

• Pumping Systems: Protects pumps from damage due to phase loss or imbalance.

• HVAC Systems: Monitors and safeguards heating, ventilation, and air conditioning equipment against phase-related issues.

• Elevators and Lifts: Ensures safe operation by monitoring the 3-phase power supply for proper sequencing and voltage stability.

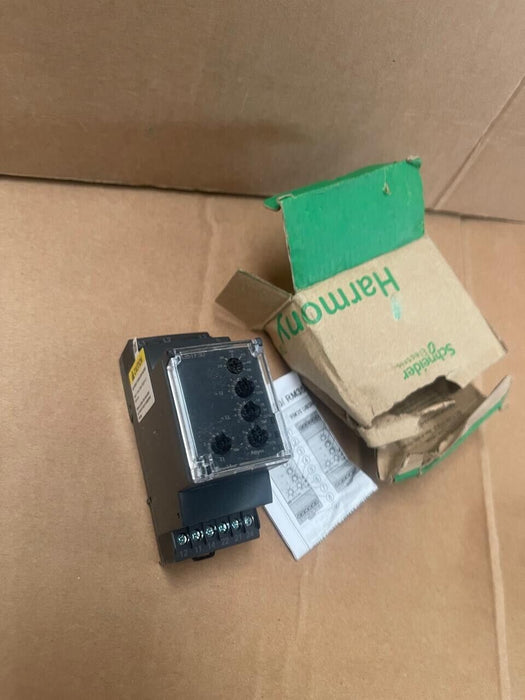

Schneider Electric - RM35TF30 - Harmony 3-Phase Supply Control Relay, 220–480 V
