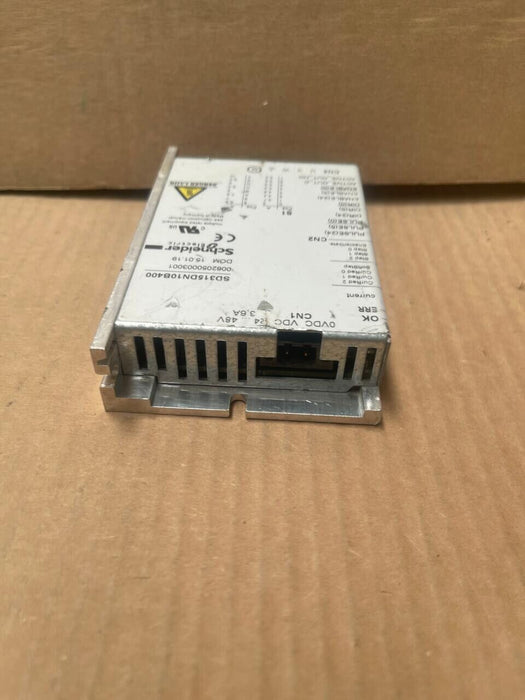

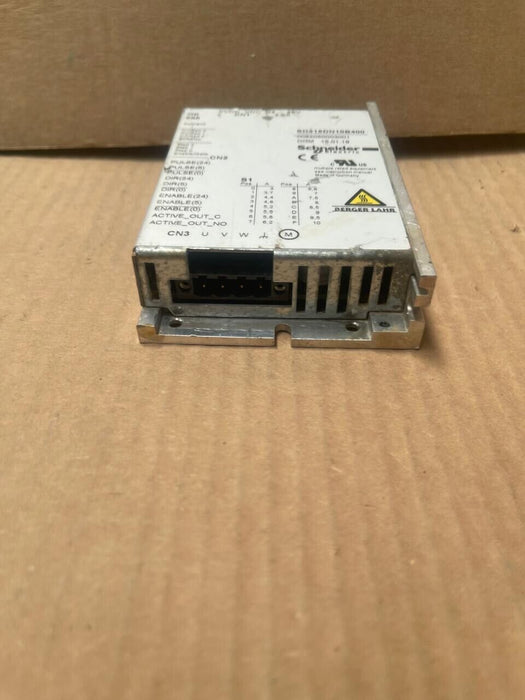

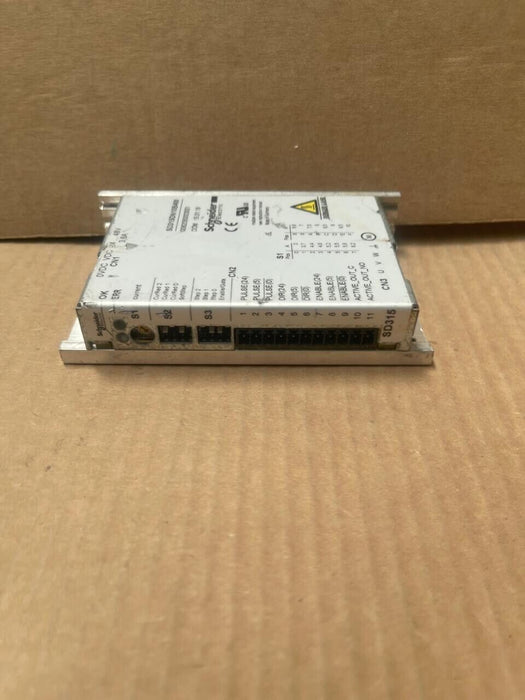

The Schneider Electric SD315DN10B400 is a compact and efficient 3-phase stepper motor drive from the Lexium SD3 series. Designed for precise motion control applications, it features an integrated pulse/direction communication interface and operates within a supply voltage range of 24V to 48V DC. The drive supports a maximum motor phase current of 10 A and utilizes natural convection cooling for reliable performance. Its IP20 protection rating makes it suitable for various industrial environments.

Key Features:

• Integrated Pulse/Direction Interface: Facilitates straightforward communication and control.

• Wide Supply Voltage Range: Operates between 24V and 48V DC, accommodating various power supply configurations.

• High Motor Phase Current: Supports up to 10 A, enabling the drive to handle demanding applications.

• Compact Design: Measures 74.5 mm in width, 23.5 mm in depth, and 117 mm in height, allowing for easy integration into space-constrained setups.

• Natural Convection Cooling: Ensures efficient heat dissipation without the need for additional cooling mechanisms.

Technical Specifications:

• Product Range: Lexium SD3

• Product Type: Motion Stepper Drive

• Device Short Name: SD315

• Supply Voltage Limits: 19…60 V DC

• Rated Supply Voltage: 24…48 V DC (-15% to +10%)

• Motor Phase Current: ≤ 10 A

• Power Losses: ≤ 7 W

• Associated Fuse Rating: 10 A

• Overvoltage Category: III

• Input Frequency: ≤ 200 kHz

• Local Signaling: 1 RUN LED, 1 ERR LED

• Cooling Method: Natural Convection

• Dimensions (W x D x H): 74.5 mm x 23.5 mm x 117 mm

• Weight: 0.25 kg

• Protection Rating: IP20

• Standards Compliance: EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 (Environment 1 and 2)

• Certifications: CE, cULus

Applications:

• Printing and Paper: Enhances precision in printing presses and paper handling equipment.

• Packaging: Improves control in packaging machinery for consistent results.

• Material Handling: Optimizes operations in conveyor systems and automated storage.

• Labeling: Ensures accurate label placement in labeling machines.

• Textile Industry: Provides reliable performance in textile manufacturing processes.

• Food and Beverage: Supports automation in food processing and packaging lines.
