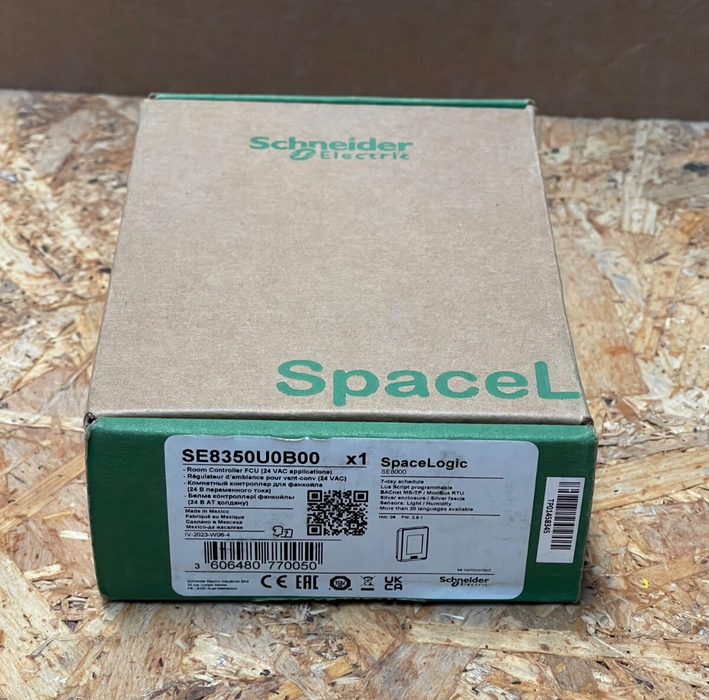

Schneider Electric – SE8350U0B00 – BACnet MS/TP Fan Coil Room Controller

The SE8350U0B00 is a BACnet MS/TP-enabled, low-voltage fan coil unit and zone controller. It integrates temperature, humidity, and occupancy control functions into a sleek silver housing. It features a touchscreen LCD, humidity sensing with dehumidification capabilities, programmable fan control, and compatibility with multi-voltage fan coil systems.

Key Specifications & Features:

• Model: SE8350U0B00 (SE8350 Series) – RCC/FCU controller with humidity and temperature regulation

• Controllers Supported: Fan coil (multiple speeds) and zone control configuration, programmable via dial or touchscreen

• Interfaces: BACnet MS/TP (native); optional Zigbee Pro

• Supply Voltage: 19–30 VAC, typically 24 VAC @ 6 VA

• Display & Controls: Backlit touchscreen, 5 selectable panel colors, custom standby screen, supports multiple languages

• Sensors & Inputs: Built-in temperature control (NTC thermistor), humidity sensor (bulk polymer), 2 dry-contact inputs (e.g., occupancy)

• Outputs: Up to 5 relays, 4 universal outputs (0–10 V), and one 24 VAC-powered relay output (1 A)

• Performance: Temperature accuracy ±0.5 °C, humidity ±5 % (20–80 % RH), operating range 0…50 °C; IP20 enclosure

• Enclosure & Dimensions: Slim 86 × 120 × 25 mm housing; backbox or standard 2″×4″ mounting

• Certifications: UL Listed, CE, FCC, ETSI, and RoHS; Green Premium, 180 kg CO₂ life cycle
