Schneider Electric – SH31403P11A2000 – SH3 140 Series Servo Motor, 27.8 Nm, 4000

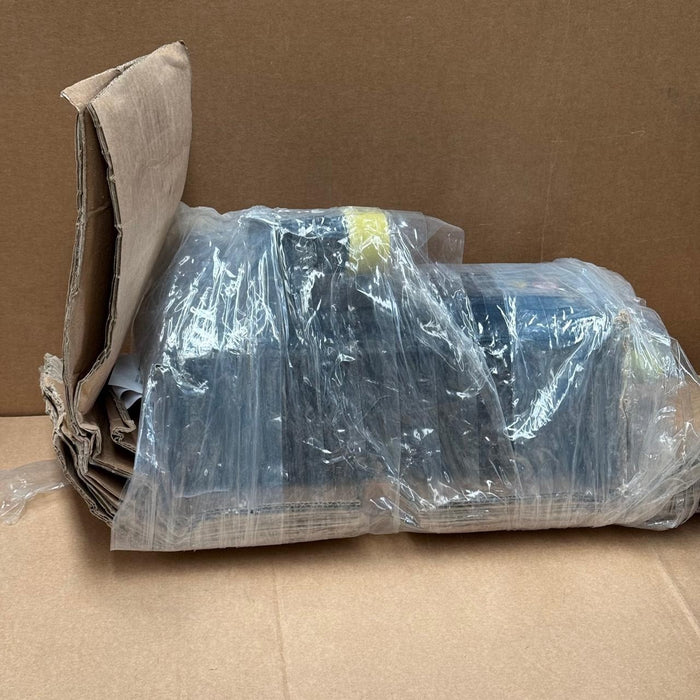

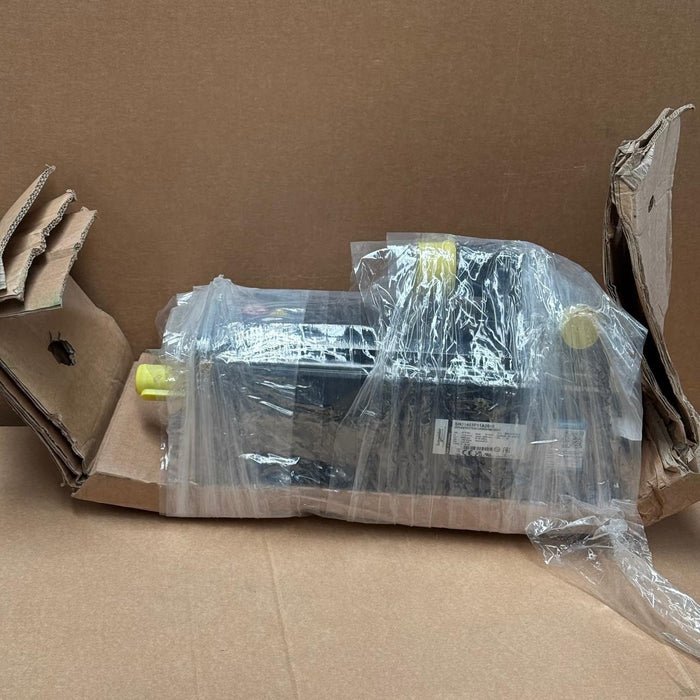

The SH31403P11A2000 is a high-performance SH3 140 servo motor from Schneider Electric’s Lexium 52/PacDrive 3 range. It delivers a nominal torque of 27.8 Nm and speeds up to 4000 RPM. Featuring an absolute SinCos Hiperface encoder and a 90° connector, it’s ideally suited for precise motion control in machine tools, robotics, packaging, and automated manufacturing systems.

Key Features:

• Manufacturer: Schneider Electric (Lexium 52 / Square D)

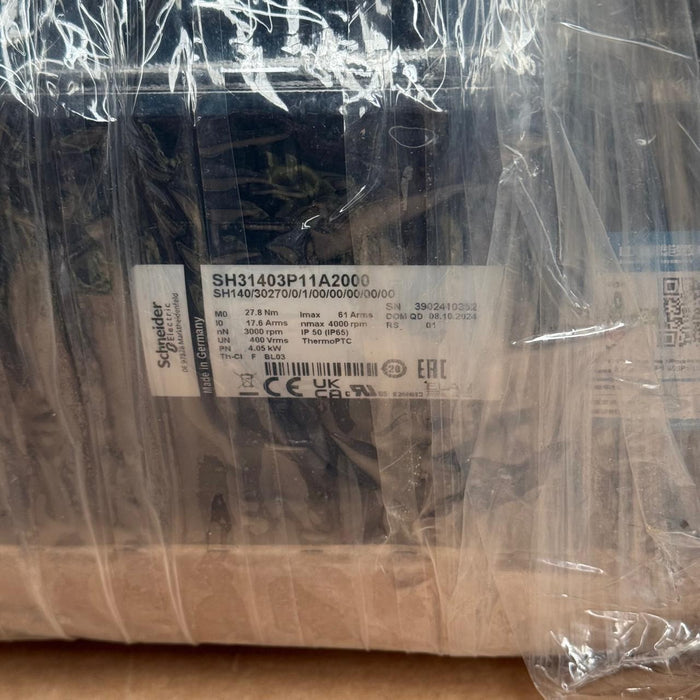

• Model / P/N: SH31403P11A2000

• Series: SH3 140 (Lexium 52 / PacDrive 3)

• Nominal Torque: 27.8 Nm ()

• Maximum Speed: 4000 RPM

• Rated Voltage: 115–480 VAC, 3-phase

• Encoder Type: Absolute single-turn SinCos Hiperface (128 periods)

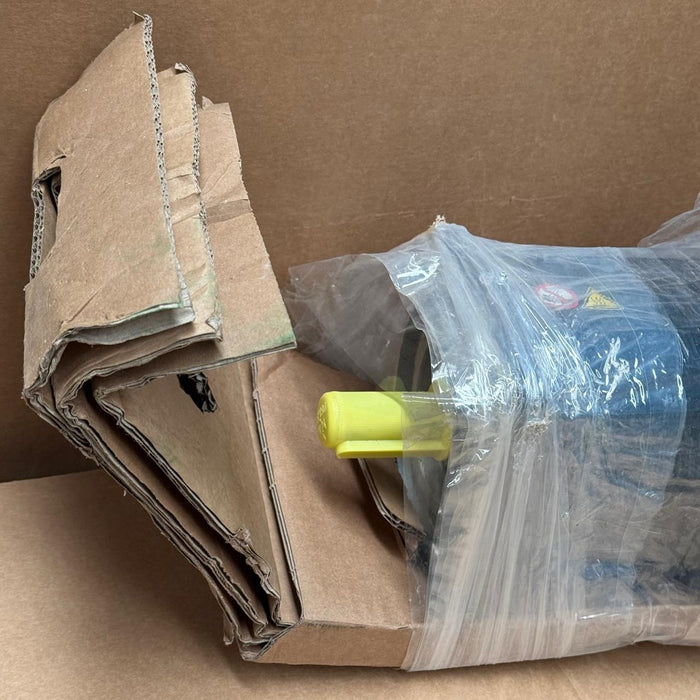

• Shaft & Connector: Parallel-key shaft, 90° rotatable connector

• Ingress Protection: IP54/IP65 rated

• Dimensions & Weight: ~272.5 mm length; flange diameter 140 mm; weight 16.6 kg ()

• Mounting: Standard 140 mm flange; natural convection cooling

• Cooling & Temperature: Ambient −25 °C to +40 °C; natural convection ()

• Application: Ideal for mid-power motion control – machine tools, robotics, CAM, packaging.
