The Schneider Electric SXWDOC8HX10001 (DO‑FC‑8‑H) is a central I/O expansion module for the SpaceLogic/EcoStruxure Building Operation platform. It provides eight Form C relay outputs, each with a local hand/off/auto override switch. Designed for DIN‑rail or wall mounting on the SpaceLogic AS‑P server, it suits applications requiring robust control of mechanical systems via both automated and manual intervention.

Key Features:

Model: SXWDOC8HX10001 (a.k.a. DO‑FC‑8‑H)
Brand: Schneider Electric SpaceLogic / EcoStruxure Building Operation
Outputs: 8 Form C (SPDT) relay digital outputs supporting direct load switching
Overrides: Individual hand/off/auto switches on each channel for manual control
Mounting: Mountable on DIN-rail or wall; requires SpaceLogic central terminal base SXWTBIOW110001
Dimensions: 114 × 90 × 64 mm; weight ~209 g; flame-retardant UL94 V‑0 housing
Power Use: Approximately 2.2 VA consumption during operation
Environmental Specs: 0–50 °C operating; –20–70 °C storage; 0–95 % non-condensing humidity; IP20

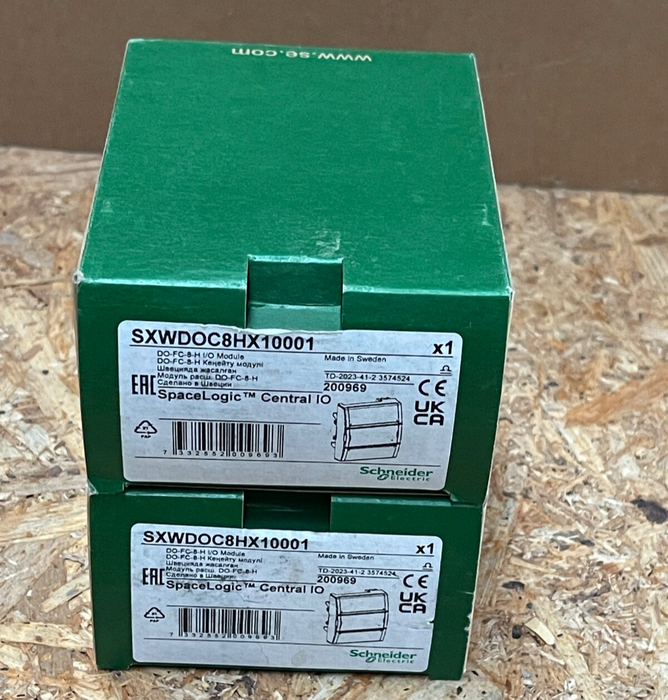

Schneider Electric – SXWDOC8HX10001 – SpaceLogic Central I/O Module
