The Schneider Electric TM168GDTS is a remote graphical touch-screen display designed for use with Modicon M168 logic controllers. Featuring a 240 × 140 monochrome LCD, six function keys, and support for panel, built-in, or wall mounting, it provides intuitive operator feedback and local control in compact industrial automation systems. Power via an 18–30 V supply ensures compatibility with standard PLC libraries.

🔍 Key Features:

Display: 240 × 140 pixel monochrome LCD with touch-sensitive screen and 6 physical buttons
Interface: Connects to Modicon M168 via expansion bus; includes LEDs for power, RX, and TX activity
Power: External 18–30 V DC/AC; low power consumption (≤5 W)
Real-Time Clock: Internal RTC with ≤30 s/month drift; 2-day backup, 10-year EEPROM battery
Robustness: Front IP40; vibration/shock compliant; –20 °C to 55 °C operating
Backup & Memory: 1,000,000 write-cycle EEPROM; panel back-up 10 years
Certifications: CE, UL/CSA to EN/IEC 60730-1; Green Premium product
Mounting & Size: Panels cut-out ~104 × 70 mm; device size ~133 × 122 × 36 mm; front bezel included

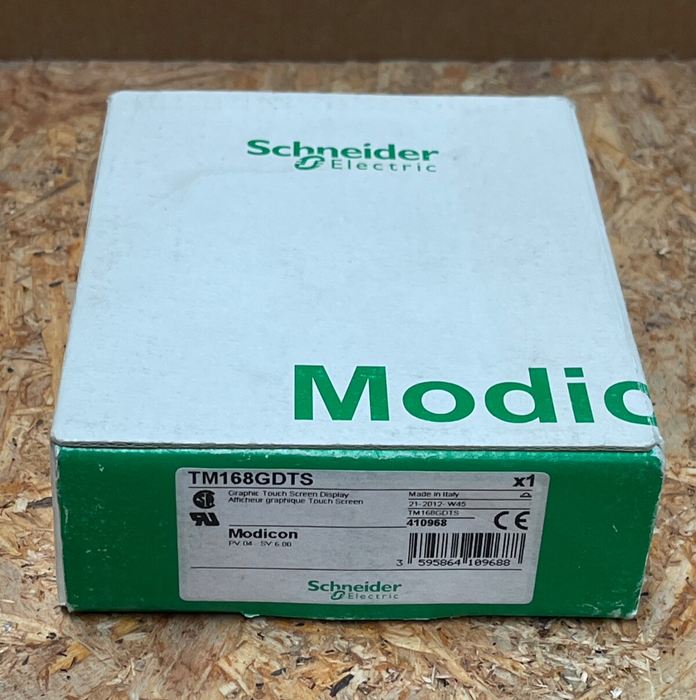

Schneider Electric – TM168GDTS – Graphic Touch-Screen Remote Display
