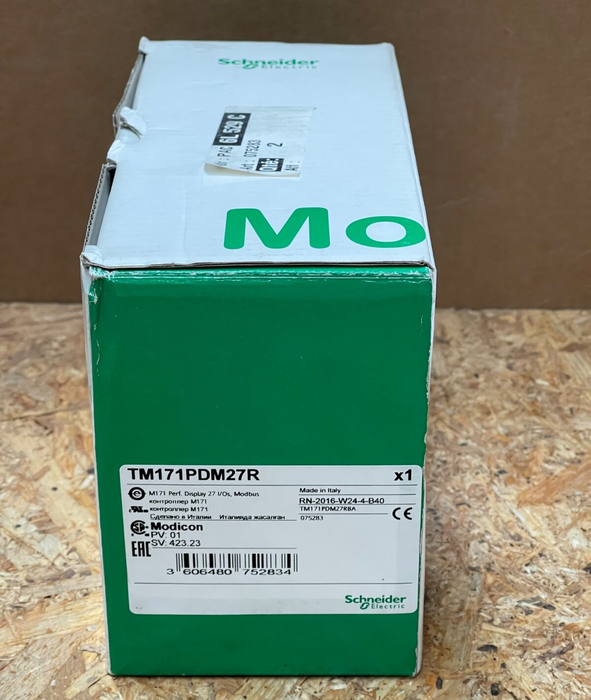

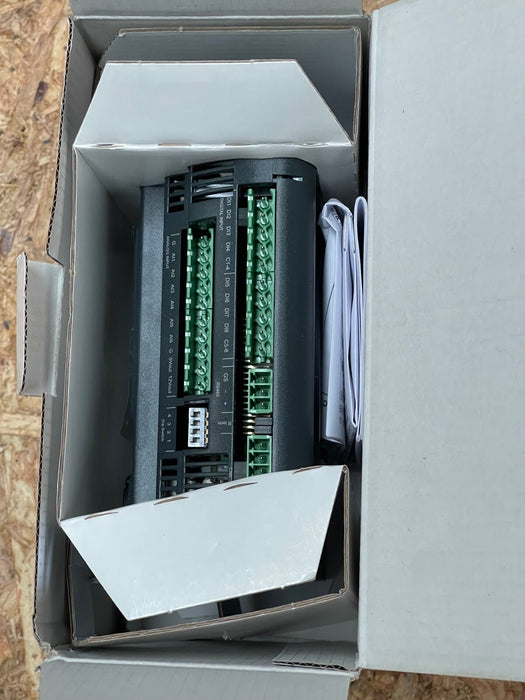

Schneider Electric – TM171PDM27R – Modicon M171 Performance Logic Controller

Main Features

• Manufacturer & Model: Schneider Electric Modicon M171 series programmable controller, part number TM171PDM27R

• Power Supply: 24 V AC/DC (also supports 48 V DC); designed for HVAC and pumping automation applications

• Integrated Display & Inputs/Outputs:

  • Built-in 128×64 pixel LCD and user keypad

  • Total I/O: 27 – including 9 digital inputs, 7 digital outputs (relay), 6 analog inputs, 5 analog outputs, and 1 high-speed counter

• Digital Inputs/Outputs:

  • 9 discrete inputs supporting sink/source logic (24 V),

  • 7 relay outputs: 2 × 8 A SPDT, 2 × 5 A SPST, plus analog/output relays

• Analog Channels:

  • 6 analog inputs (voltage, current, NTC, Pt1000)

  • 5 analog outputs (programmable 0–10 V or 4–20 mA)

  • 2 high-speed open-collector outputs (1 kHz, 12 V, 35 mA)

• Communications:

  • RS‑485 Modbus serial link

  • CAN bus (CANopen) expansion support

  • USB ports: one mini-B (device), one Type-A (host)

• Performance: Deterministic scan cycle (~0.3 ms per 1 K binary instruction); built-in real-time clock; IP20; operating −10 °C to +55 °C

• Certifications & Standards: CE, cURus, CSA, EAC; compliant with EN/IEC 60730 standards
