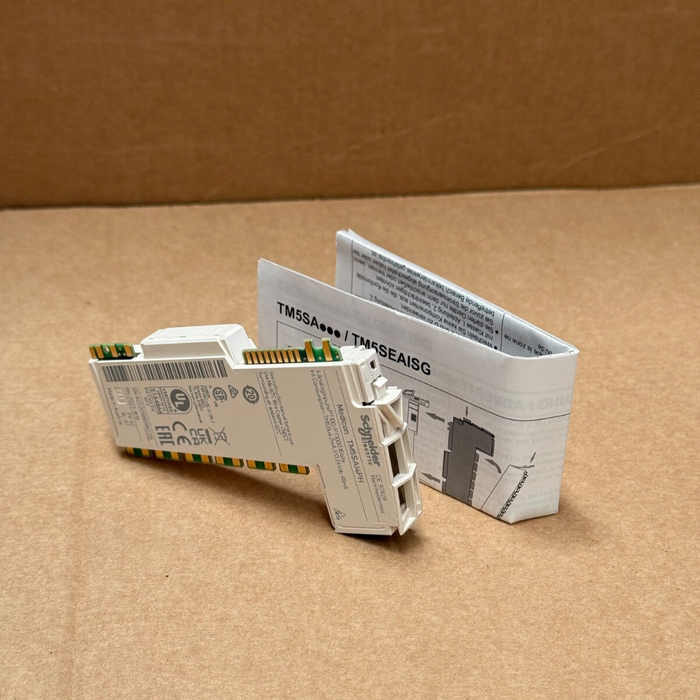

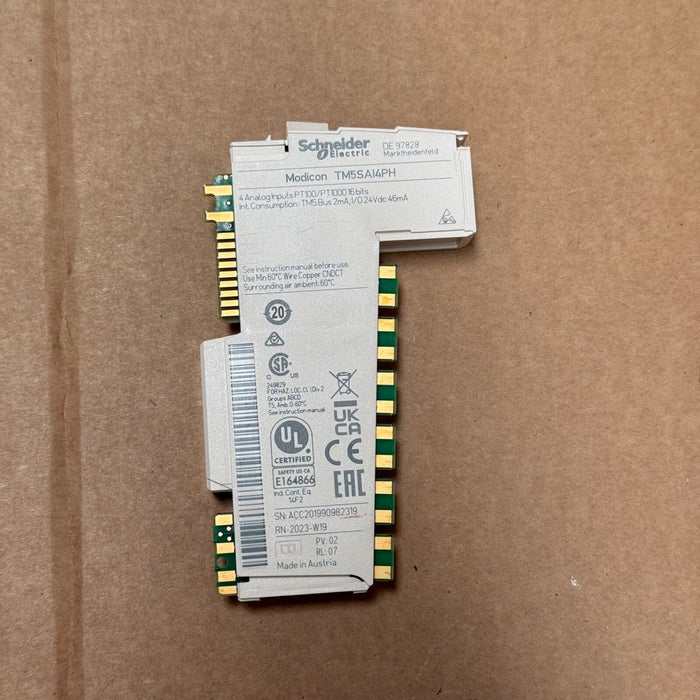

Schneider Electric – TM5SAI4PH – Modicon TM5 Analog Input Module

The Schneider Electric TM5SAI4PH is a high-precision analog input slice for the Modicon TM5 I/O system. It supports four RTD inputs for PT100/PT1000 sensors (–200 °C to +850 °C) with 16-bit resolution, making it ideal for accurate temperature monitoring in OEM, packaging, and industrial processes. The slim DIN-rail design and IP20 enclosure enable easy integration in control panels.

 Key Features & Specifications

• Model / P/N: TM5SAI4PH

• Inputs: 4 PT100/PT1000 RTD channels (–200…+850 °C)

• Resolution & Accuracy: 16-bit resolution (~0.1 °C); error <0.037 % FS; non-linearity <0.001 % FS; temp coefficient ~0.004 % FS/°C

• Supply & Current: Powered from TM5 backplane; 2 mA @ 5 V bus; 46 mA @ 24 V bus; dissipation ≤1.11 W

• Isolation: 500 Vrms channel-to-bus; no inter-channel isolation

• Certifications & Standards: UL 508, CSA, IEC 61131‑2, cULus, C‑Tick, GOST‑R; IP20 rating

• LED Indicators: One green power LED, four green channel status LEDs

• Temperature Range & Size: 0–60 °C ambient; compact (~99×75×12 mm) slice

• Compatibility: Works with Modicon TM5 base units and TM5 controllers (LMC058, M258)
