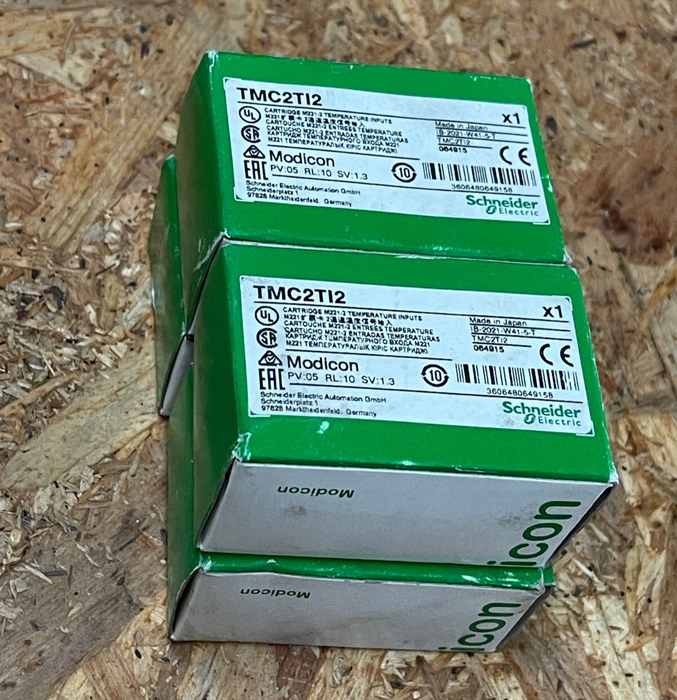

Schneider Electric – TMC2TI2 – Modicon M221 Temperature Input Cartridge

Main Features

• Manufacturer: Schneider Electric – Modicon M221 PLC I/O extension series

• Model/MPN: TMC2TI2

• Device Type: Plug-in analog input cartridge – 2-channel temperature inputs, designed for Modicon M221™ Nano PLC

• Input Configuration:

  • Accepts two temperature sensors (Pt100, Pt1000, Ni100/Ni1000 RTDs; or thermocouple types J, K, N, S, R, B, T, E, C)

  • 14-bit resolution on analog inputs

• Integration:

  • Slide-in cartridge for TM3 expansion port on Modicon M221

  • Nail 15 mm; module dimensions ~41 × 15 × 35 mm

• Additional Features:

  • Supports SD card and USB expansion on M221 base unit

  • Run/Stop switch same as other TM3 modules

• Typical Applications:

  • Process temperature monitoring and control in machine automation

  • Integration into compact OEM systems with RTD/thermocouple feedback
