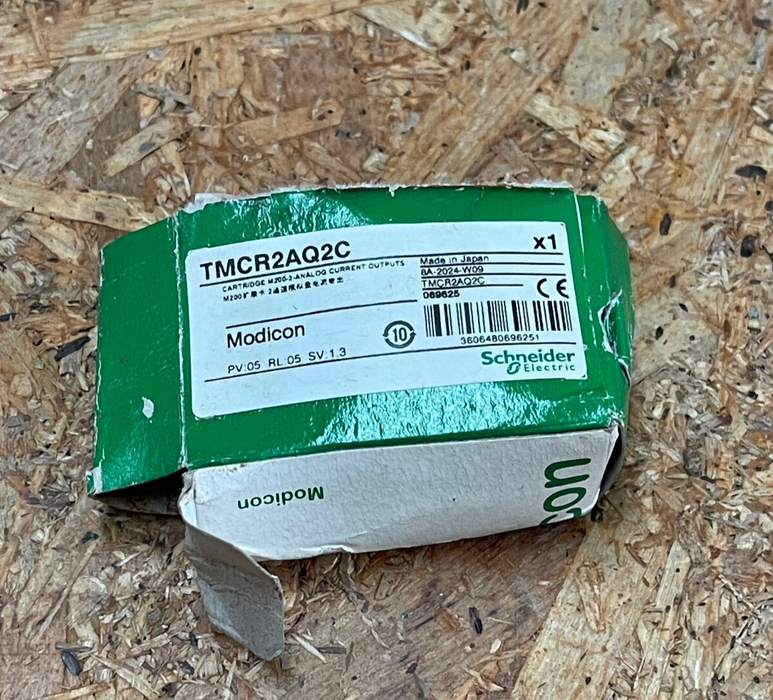

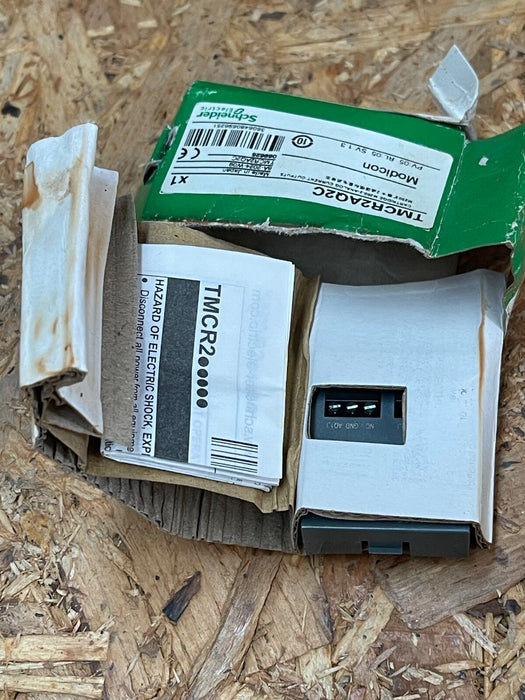

Schneider Electric – TMCR2AQ2C – Modicon M200 Cartridge 2× 4–20 mA Analog Output

The Schneider Electric TMCR2AQ2C is an analog output cartridge designed for the Modicon M200 programmable logic controller platform. It provides two independent 4–20 mA current outputs with high precision and compact installation via cartridge mounting directly into M200 controllers.

Key Features:

• Model: TMCR2AQ2C

• Brand: Schneider Electric (Modicon M200 series)

• Outputs: 2 analog current outputs (4–20 mA), 12-bit resolution (~3.91 µA LSB)

• Performance:

  • Conversion time: 20 ms; stabilization in 40 ms

  • Absolute accuracy: ±1 % full-scale (±0.3 % at 25 °C)

  • Temp drift: ±0.02 % FS/°C; repeatability: ±0.4 % FS; non-linearity: ±0.01 % FS

• Load Capability: Supports resistive loads up to 500 Ω; recommended cable: shielded twisted pair, max distance 30 m

• Electrical Connection: Twin screw terminal blocks, 1.5 mm² conductors; no internal isolation from logic bus

• Physical: Dimensions: 41 × 35 × 15 mm, weight ~12 g

• Durability: Immune to micro-breaks up to 10 ms
