The Schneider Electric TPRBCPFN is a bus coupler designed for the TeSys Island system, facilitating seamless integration between a group of TeSys motor starters and an automation system via PROFINET IO. Operating with a 24 V DC power supply and supporting up to 3 A, this bus coupler serves as the central communication interface, ensuring efficient and reliable data exchange within industrial automation setups.

Key Features:

• PROFINET IO Connectivity: Enables high-speed communication between TeSys Island and automation systems, supporting real-time data exchange.

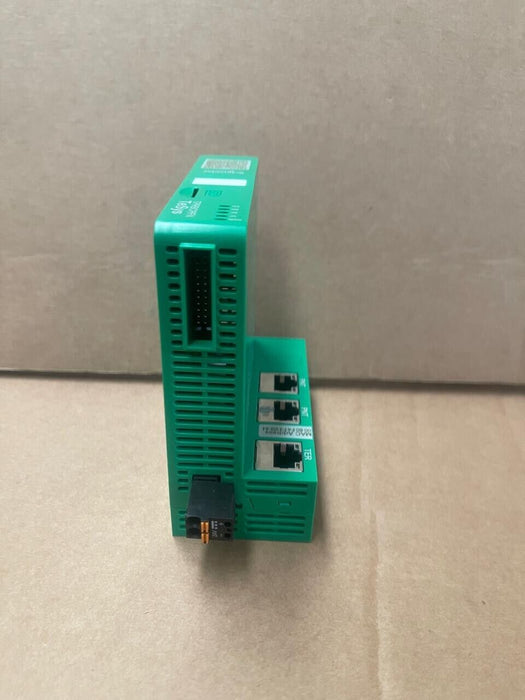

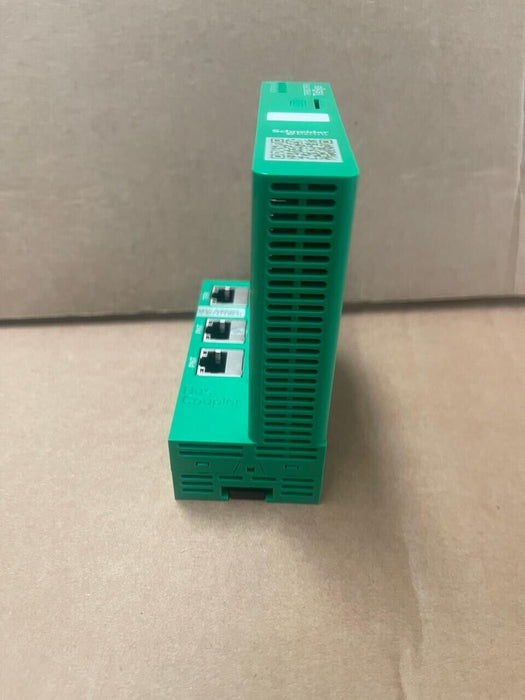

• Dual RJ45 Ports: Equipped with two RJ45 ports for PROFINET IO connections, facilitating network redundancy and daisy-chaining capabilities.

• Service Port: Includes an additional RJ45 service port over Ethernet for easy configuration and diagnostics.

• Micro SD Card Slot: Provides a micro SD card port for firmware updates and data storage.

• Internal Bus Connectivity: Features a port for the internal bus, interconnecting the modules within the TeSys Island.

Technical Specifications:

• Model Number: TPRBCPFN

• Power Supply: 24 V DC

• Current Rating: 3 A

• Communication Protocol: PROFINET IO

• Dimensions: [Information not specified]

• Weight: [Information not specified]

Applications:

• Industrial Automation: Integrates TeSys motor starters into PROFINET-based automation systems for efficient motor control and monitoring.

• Manufacturing Processes: Enhances communication and control in automated production lines, ensuring seamless operation.

• Process Control Systems: Facilitates reliable data exchange between field devices and central controllers in process industries.

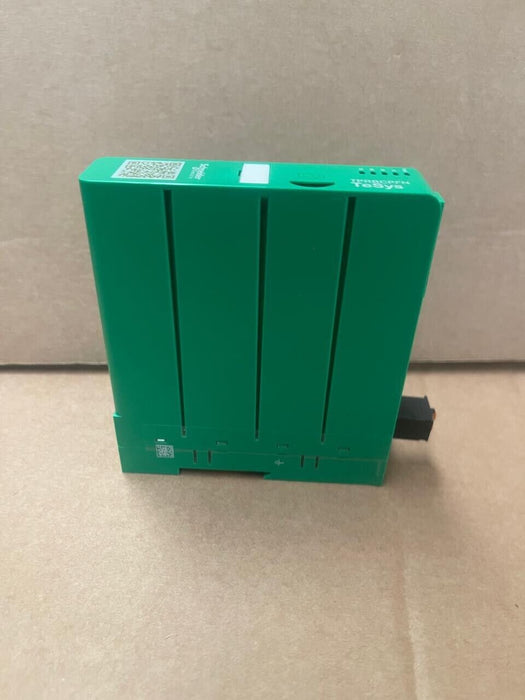

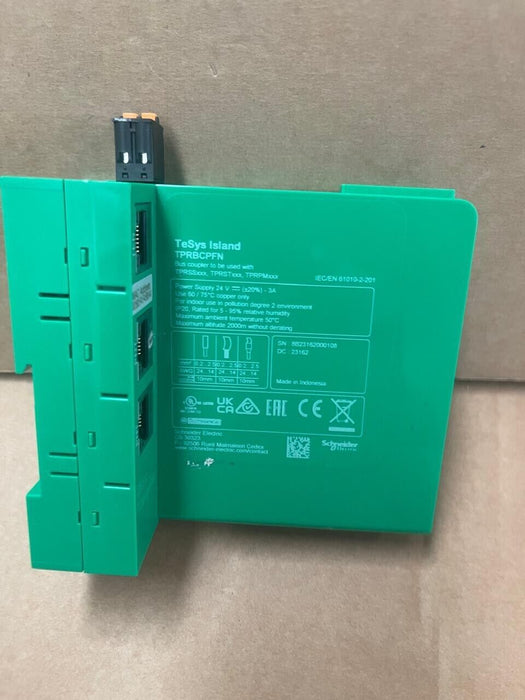

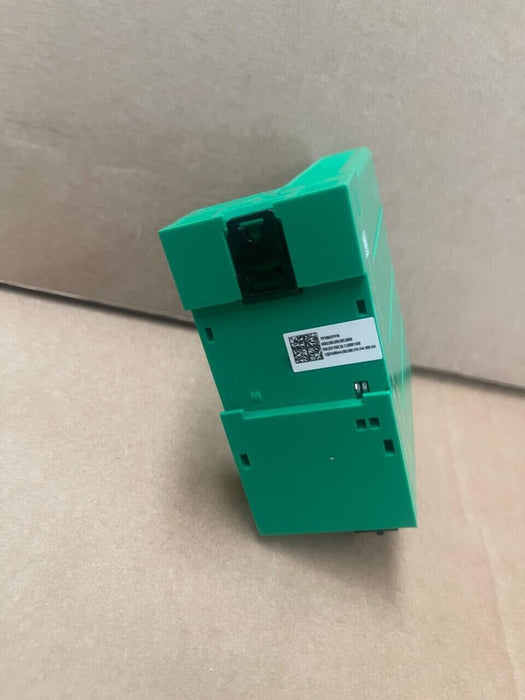

Schneider Electric - TPRBCPFN - TeSys Island Bus Coupler, 24 V DC, 3 A
