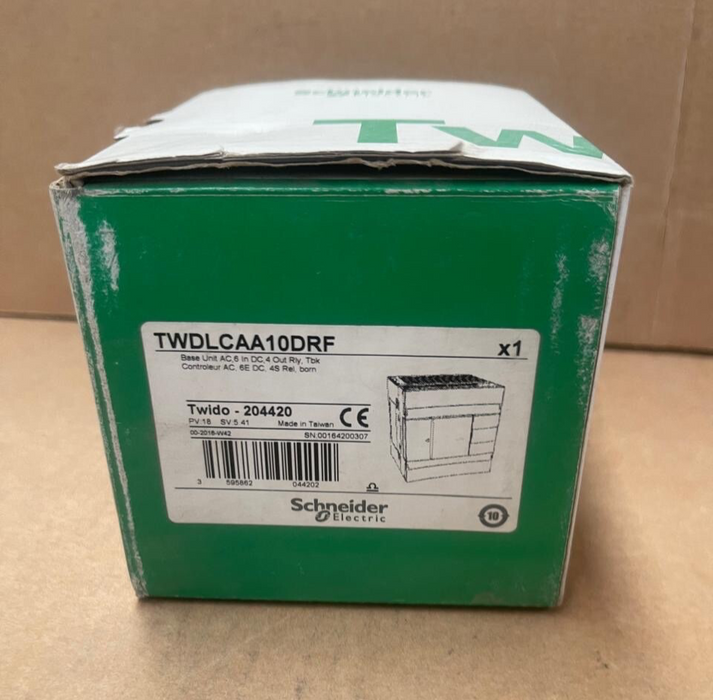

Schneider Electric - TWDLCAA10DRF - Twido Compact Base Controller AC

The Schneider Electric TWDLCAA10DRF is a Twido series compact base controller designed for use in small automation systems. Ideal for industrial and commercial control applications, it provides a reliable and expandable control solution.

Key Features:

• Compact PLC with 100–240 V AC power supply

• 6 digital inputs (24 V DC, sink/source)

• 4 relay outputs (2 A at 240 V AC / 30 V DC)

• Expandable via additional I/O modules

• RS485 communication (Modbus RTU/ASCII) via mini-DIN

• Internal RAM with 30-day lithium battery backup

• Compatible with TwidoSuite programming software

Applications:

• Small-scale industrial automation

• Building and home automation

• OEM machinery control

Technical Specifications:

• Power Supply: 100–240 V AC

• Inputs: 6 digital

• Outputs: 4 relay

• Communication: RS485 Modbus

• Dimensions: 90 × 80 × 70 mm (W × H × D)
