The Schneider Electric Vamp 40 (V40-026451) is a comprehensive feeder and motor protection relay, ideal for medium- and low-voltage switchgear applications. Engineered for reliability and adaptability, it provides advanced current-based protection, user-configurable logic, and event/data logging capabilities.

Equipped with a clear LCD display and intuitive keypad, the Vamp 40 enables quick setup and monitoring. The unit supports communication via RS-232 and optional RS-485 modules, allowing integration into SCADA and energy management systems.

Key Features:

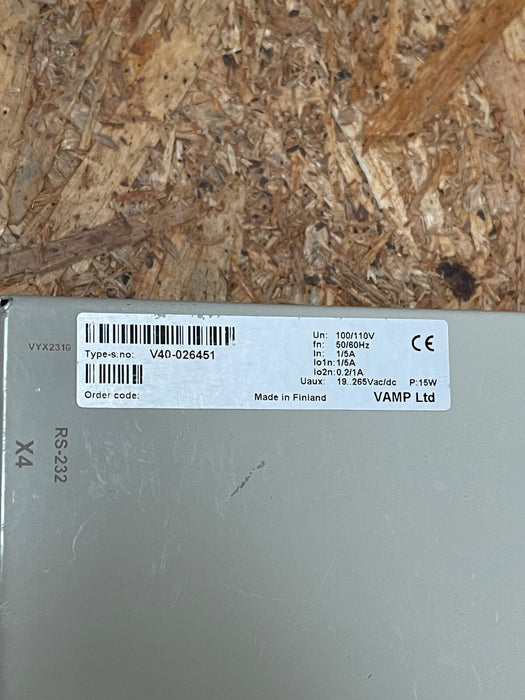

Model: Vamp 40 (V40-026451)
Brand: Schneider Electric
Function: Feeder and motor protection relay
Nominal Current Inputs: 1 A / 5 A (selectable)

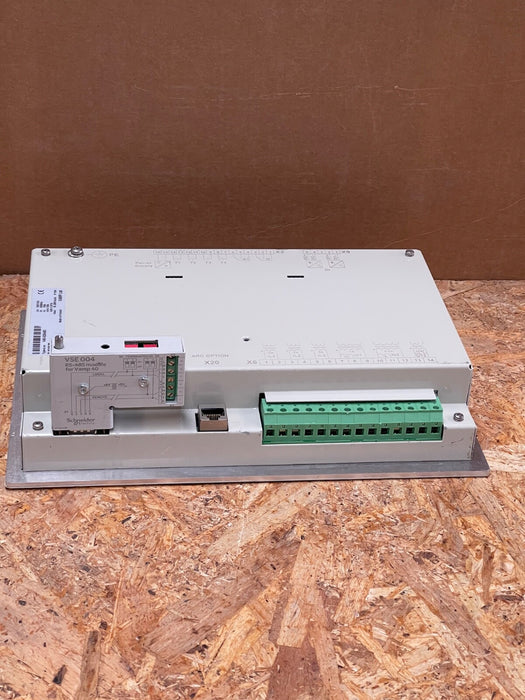

Communication Ports: RS-232, optional RS-485 (VSE 004 module installed)
Auxiliary Voltage Range: 19–265 V AC/DC
Power Consumption: 15 W
Protection Functions: Overcurrent, short-circuit, earth fault, thermal overload

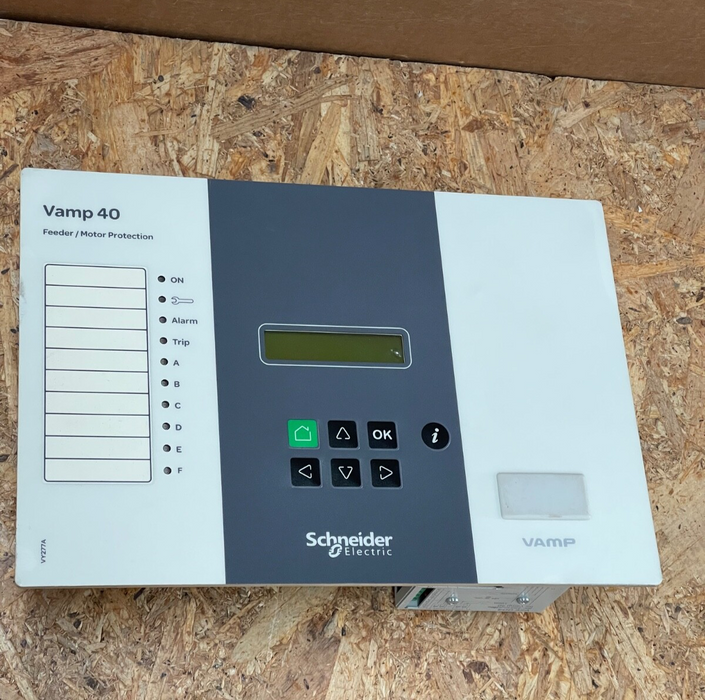

User Interface: LCD display with keypad for direct operation

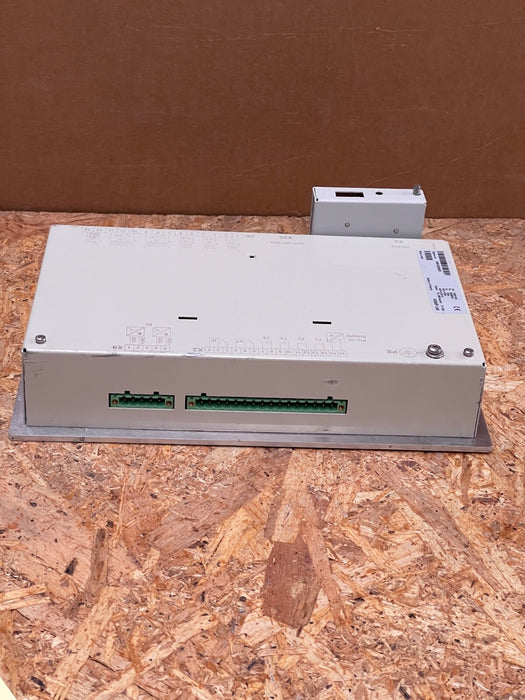

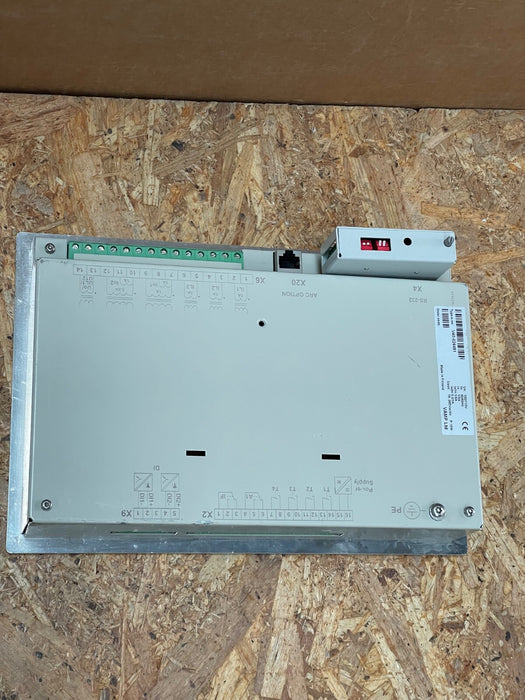

Mounting: Panel-mounted with removable connectors
Applications: Motor protection, feeder protection, and general purpose protection in substations and industrial environments

Schneider Electric – V40-026451 – Vamp 40 Feeder &amp; Motor Protection Relay

Schneider Electric – V40-026451 – Vamp 40 Feeder & Motor Protection Relay
