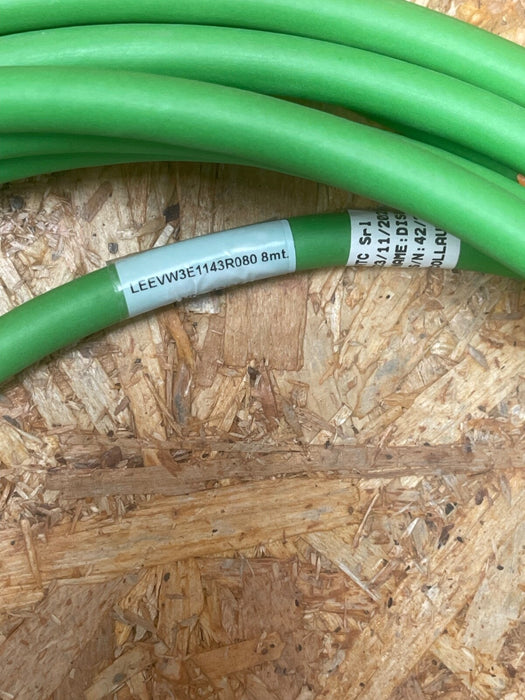

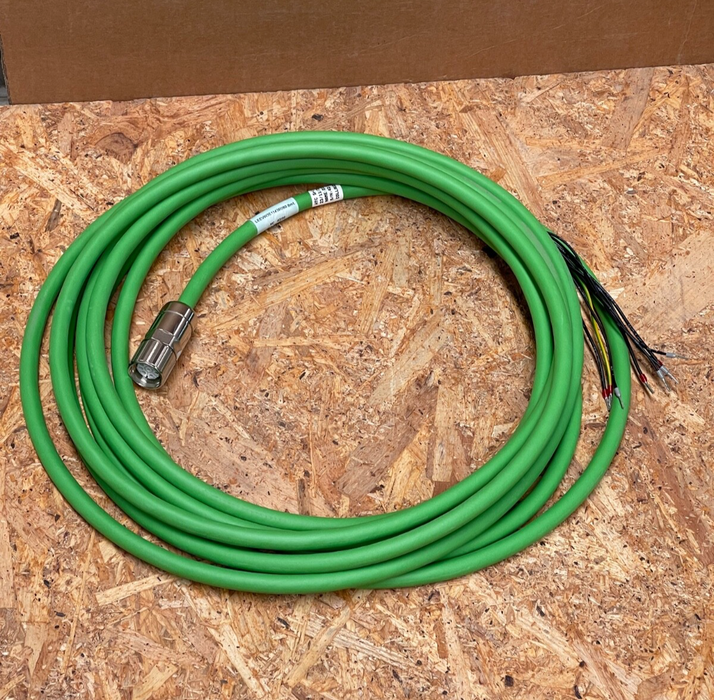

Schneider Electric – VW3E1143R080 – 8 m Hybrid Motor Cable, 1.5 mm² (P30 M23)

The VW3E1143R080 is a genuine Schneider Electric motor cable engineered for Lexium 62 ILM and PacDrive 3 integrated servo systems. This robust 8-meter, shielded hybrid cable includes a P30 M23 connector and heavy-duty motor leads—supporting motor power, encoder feedback, brake, and STO safety signals. Ideal for clean, reliable motion control cabling in industrial automation.

Key Specifications

• Part No: VW3E1143R080

• Length: 8 m (26.2 ft)

• Conductor Size: 1.5 mm²

• Connector: P30 M23 metal plug (filterable for power/signal)

• Compatibility: Lexium 62 ILM drives & distribution boxes, PacDrive 3 systems

• Application: Transmits motor power, Sercos encoder data, brake, and safety (STO) lines
