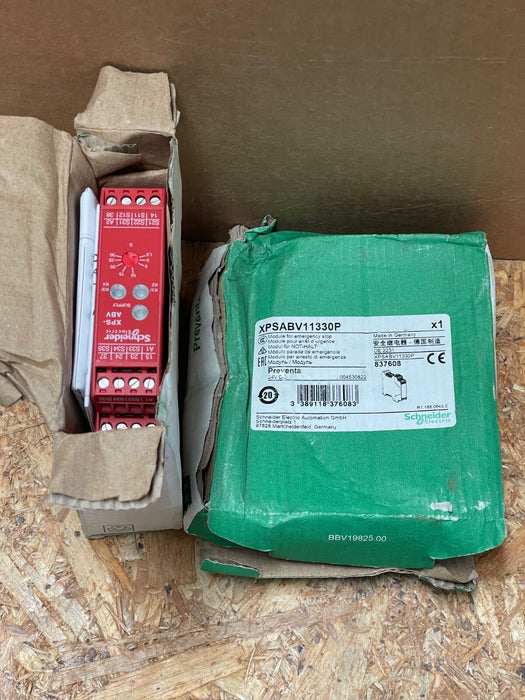

The Schneider Electric XPSABV11330P is a Preventa XPS range safety relay module engineered for emergency-stop pushbuttons and limit switch monitoring in 24 V AC/DC control systems. It features a DIN-rail mountable design with removable terminal block and slip-lock captive screw terminals for quick installation and maintenance. Achieving high safety integrity, it offers instant and time-delay relays with SIL and PL certifications—ideal for robust machine safety circuits.

Key Features:

• Model: XPSABV11330P

• Brand: Schneider Electric

• Control Voltage: 24 V AC/DC

• Outputs: 3 NO safety relays (2 instantaneous, 1 time-delay)

• Timing Range: 1.5–30 s adjustable

• Safety Levels: PL e/Category 4 (instantaneous), PL d/Category 3 (delay); SIL CL 3 instant, SIL CL 2 delay

• Reliability: MTTFd 53 years; PFHd 3×10⁻⁸/h instant, 2×10⁻⁷/h delay

• Input Diagnostic Coverage: > 99% instantaneous, 60–90% delayed

• Contact Rating: 1.5 A @ 24 V DC (DC‑13); DIN‑rail mounting; IP20/IP40 protection

• Terminals: Captive screw clamp with removable block, 0.2–2.5 mm² cabling

• Indicators: Two status LEDs

• Power Consumption: <5 VA

• Operating Temp: –25 °C to +55 °C; Storage: –25 °C to +75 °C

• Certifications: EN/IEC 60204-1, 60947‑5‑1, 13850, 1088; UL, CSA, TÜV, RoHS compliant

Schneider Electric – XPSABV11330P – Preventa XPS Emergency-Stop
