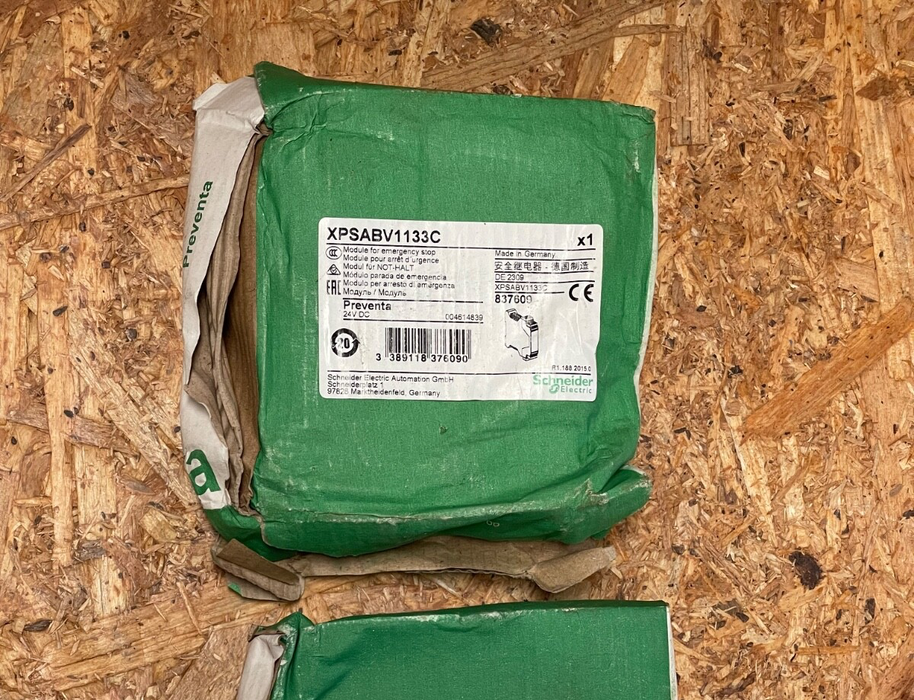

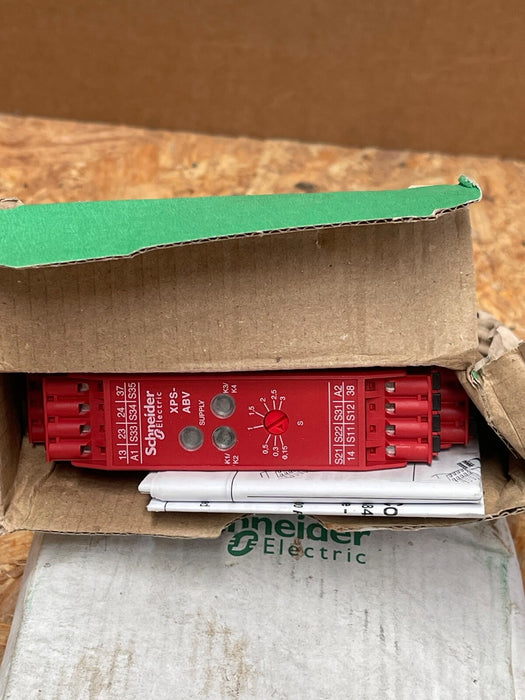

The Schneider Electric XPSABV1133C is a Preventa XPS safety relay module for monitoring emergency-stop pushbuttons and limit switches. Designed for compact DIN-rail installations, it supports both 24 V AC and DC control circuits. Capable of achieving high safety levels, this unit is ideal where versatile and reliable emergency stop circuitry is needed.

Key Features:

• Model: XPSABV1133C

• Brand: Schneider Electric

• Control Voltage: 24 V AC/DC

• Input Type: Emergency-stop and switch monitoring

• Output Configuration: 2 instantaneous NO relays, 1 time-delay NO relay

• Time-Delay Range: 0.15–3 s or 1.5–30 s (configurable)

• Safety Levels:

– Instantaneous outputs: PL e/Category 4, SIL CL 3

– Time-delay outputs: PL d/Category 3, SIL CL 2

• Reliability: PFHd = 3 × 10⁻⁸ /h (inst.), 2 × 10⁻⁷ /h (delay); MTTFd = 53 years

• Power Consumption: ≤ 3 W

• Input Synchronization Time: < 0.5 s

• Contact Ratings:

– 1.5 A at 24 V DC (DC‑13), 360 VA/3600 VA AC‑15 (B300)

– Thermal current: 6 A; conventional free-air: 12 A; fuse: 6 A gG

• Terminals: Spring, removable block (0.2–2.5 mm² cable capacity)

• Local Signaling: 3 LEDs

• Mounting: 35 mm DIN rail

• Protection: Internal electronic, rated insulation 300 V, impulse withstand 4 kV (Category III), IP20/IP40

• Environmental Conditions: Operation: –25 °C to +55 °C; Storage: –25 °C to +75 °C

• Certifications: UL, CSA, BG; standards EN/IEC 60947‑5‑1, 60204‑1, 1088, ISO/EN 13850, ISO/EN 14119
