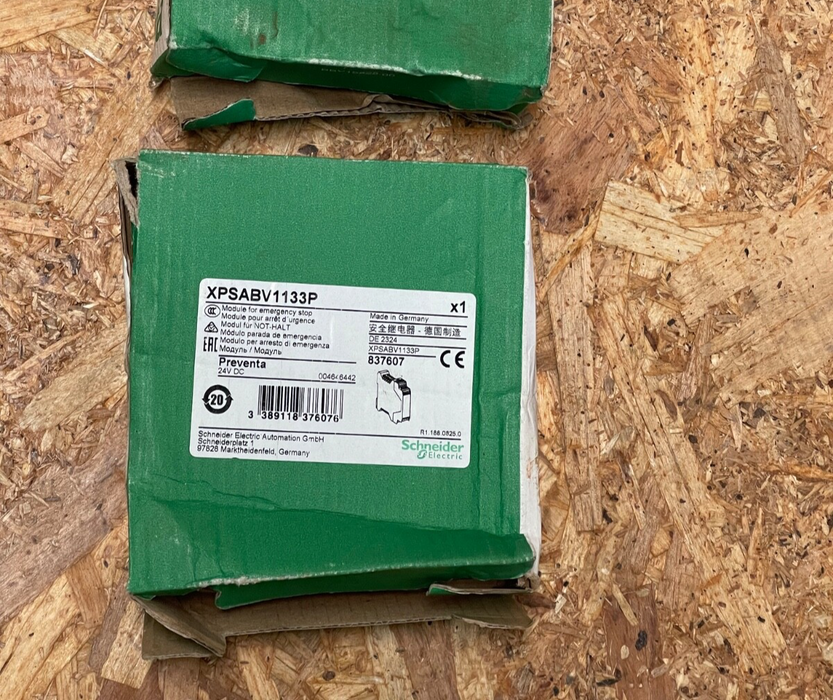

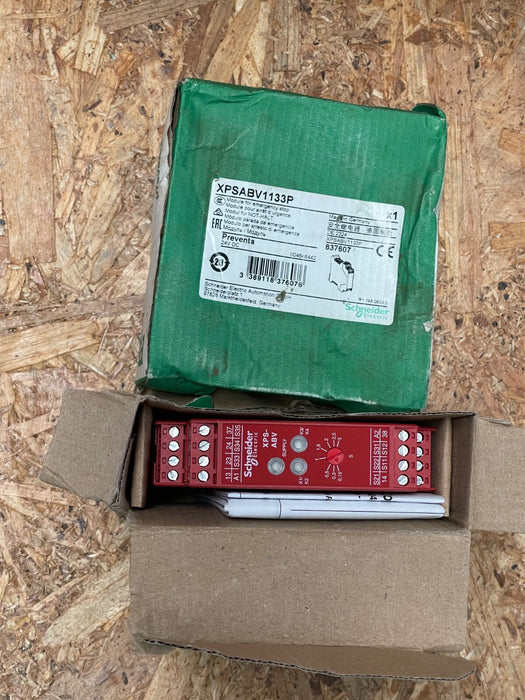

Schneider Electric – XPSABV1133P – Preventa XPS Stop & Switch Monitoring

The Schneider Electric XPSABV1133P is a high-performance Preventa XPS safety relay module designed for emergency stop pushbuttons and switch monitoring. Suitable for both 24 V AC and DC control circuits, this module enables compact, reliable PL e/Category 4 safety solutions. It features versatile relay outputs, configurable time delays, and captive terminal blocks for ease of installation on 35 mm DIN-rail systems.

Key Features:

• Model: XPSABV1133P

• Brand: Schneider Electric

• Control Voltage: 24 V DC ±15 % (15 – 30 V DC); compatible with 24 V AC/DC inputs

• Input Type: Emergency-stop and switch monitoring

• Output Configuration: 2 instantaneous NO relays + 1 time-delay NO relay (time‑delay range 0.15–30 s)

• Contact Capacity: 1.5 A DC (max), 5 A @ 300 V AC (AC rating)

• Safety Standards: PL e/Cat 4, SIL CL 3 (instantaneous outputs); PL d/Cat 3, SIL CL 2 (time‑delay outputs)

• Reliability Metrics: PFHd = 3×10⁻⁸/h; MTTFd = 53 years

• Input Synchronization Time: < 0.5 s

• Power Consumption: 3 W DC

• Protection & Construction: Captive screw clamp terminals; internal electronic protection; IP20 (front) / IP40 (sides)

• Mounting: 35 mm symmetrical DIN-rail

• Operating Temperature: –25 °C to +55 °C; Storage: –25 °C to +75 °C

• LED Indicators: Local status with 3 LEDs

• Approvals: BG, CSA, UL; conforms to EN/IEC standards including 60204‑1, 1088, 13850, 60947‑5‑1, 62061
