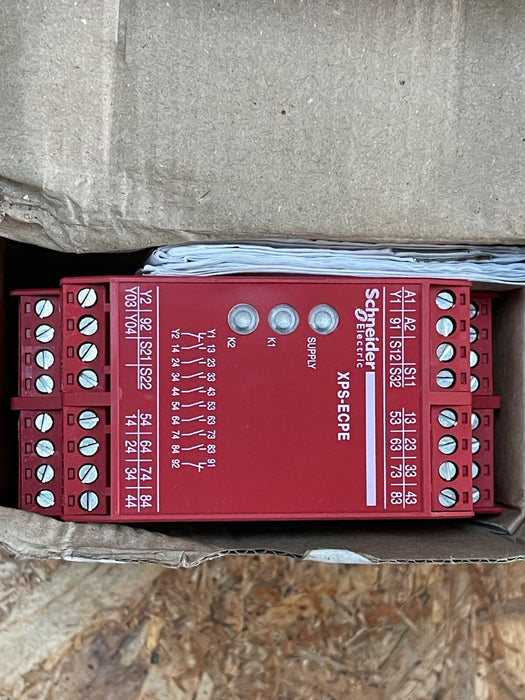

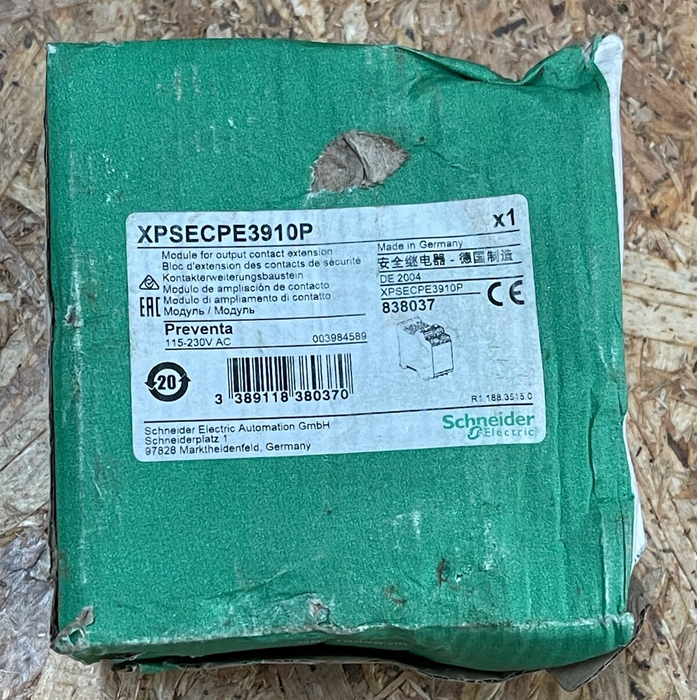

Schneider Electric – XPSECPE3910P – Preventa XPSEC Safety Relay Expansion Module

The Schneider Electric XPSECPE3910P is a modular safety relay expansion unit from the Preventa XPSEC series. Designed to increase the number of safety contacts in an existing safety relay base, it supports supply voltages from 115 to 230 V AC/DC and mounts on 35 mm DIN-rail. It offers eight additional normally-open (NO) contacts, two normally-closed (NC) contacts, and one solid-state output, effectively enhancing safety circuit capacity up to PL e/Category 4 and SIL 3 levels.

Key Features:

• Model: XPSECPE3910P

• Brand: Schneider Electric (Preventa XPSEC series)

• Function: Safety relay expansion—adds 8 NO, 2 NC mechanical outputs and 1 solid-state output

• Supply Voltage: 115–230 V AC/DC, 50/60 Hz; consumption ≤ 6 VA

• Safety Integrity: Achieves PL e/Cat 4 and SIL 3 (when combined with base)

• Reliability: MTTFd > 100 years; PFHd = 2.47 × 10⁻⁸/h

• Contact Ratings: B300 AC‑15: hold 360 VA, inrush 3600 VA; DC‑13: 3 A @ 24 V with L/R 50 ms; load current ≤ 6 A

• Response Time: ≤ 10 ms on input open

• Connections: Captive screw terminals supporting 0.2–2.5 mm² conductors

• Indicators: Local status via 3 LEDs

• Isolation & Protection: Insulation voltage 300 V, impulse withstand 4 kV (OV Cat III), pollution degree 2; IP20/IP40 rated

• Temperature Range: −25 °C to +55 °C operating; −25 °C to +70 °C storage

• Mounting & Enclosure: 35 mm DIN-rail, plastic enclosure, weight ~0.65 kg; German-made
