Description:

The Schneider Electric XPSUAK12AP is a multifunctional safety relay from the Preventa Harmony XPS series, designed to monitor emergency stop devices, safety switches, light curtains, and pressure-sensitive mats. It supports both PNP and NPN sensor types and operates with a 24 V AC/DC power supply. This module is suitable for applications requiring Category 4 safety performance, ensuring high reliability in safety-related control systems.

Key Features:

Supply Voltage: 24 V AC/DC
Safety Category: Category 4 (EN ISO 13849-1)
Inputs: 2 safety inputs
Outputs:
- 2 Normally Open (NO) safety contacts
- 1 Normally Closed (NC) safety contact
- 3 configurable pulsed outputs
Diagnostic Output: Solid-state output providing status information
Mounting: DIN rail
Connection Type: Screw terminals
Dimensions (W × H × D): 22.5 mm × 100 mm × 112 mm
Operating Temperature Range: -25°C to +55°C
Enclosure Rating: IP20/IP40/IP54
Certifications: cULus, TUV

Applications:

Monitoring of emergency stop circuits
Safety gate and guard monitoring
Integration with light curtains and safety mats
Use in machinery requiring high-level safety performance

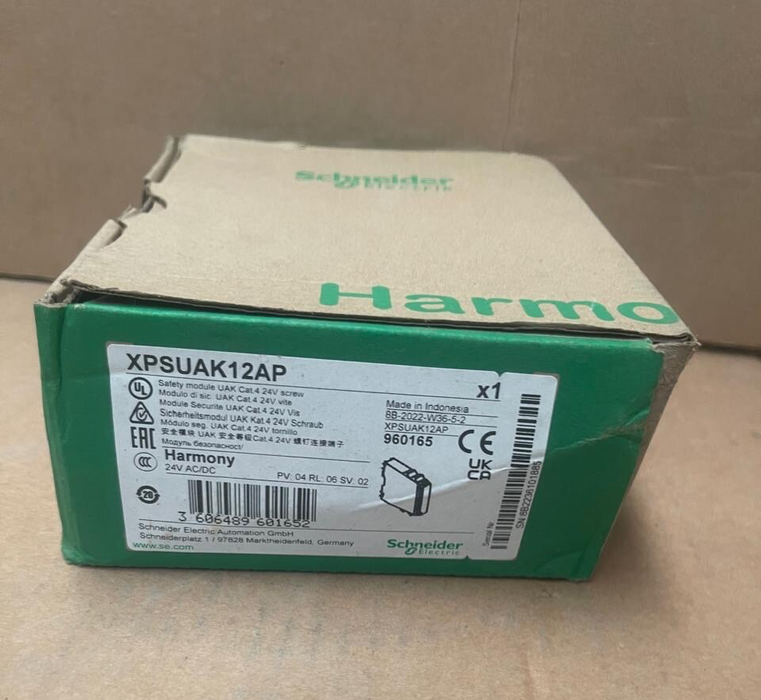

Schneider Electric - XPSUAK12AP - Preventa Safety Module, Cat. 4, 24 V AC/DC
