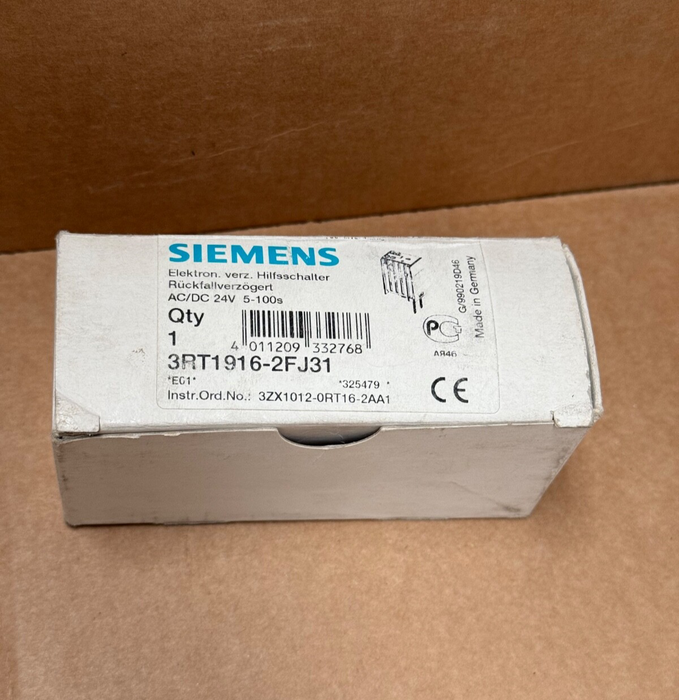

Siemens – 3RT1916‑2FJ31 – SIRIUS S00 Off‑Delay Auxiliary Switch (24 VAC/DC)

The Siemens 3RT1916‑2FJ31 is a plug-on, solid-state off‑delay timing module designed for SIRIUS S00 contactors (e.g., 3RT10–3RT16). Powered by 24 V AC/DC, it provides both a normally open (NO) and normally closed (NC) contact with adjustable delay from 5 to 100 seconds, ideal for delayed ejection or shutdown sequences in motor and control circuit applications.

Key Features & Specifications

• Model / P/N: 3RT1916‑2FJ31

• Function: Off‑delay timing block with 1 NO + 1 NC contact

• Time Range: Adjustable 5–100 s

• Supply Voltage: 24 V AC/DC, 50–60 Hz

• Mounting: Snaps onto front of S00‑sized SIRIUS contactors (3RT10–3RT16)

• Built-In Protection: Varistor included for coil surge suppression

• Size: 45 mm wide × 38 mm high × 75 mm deep

• Temperature Range: –25 °C to +60 °C

• Certifications: UL recognized, CE marked, RoHS compliant
