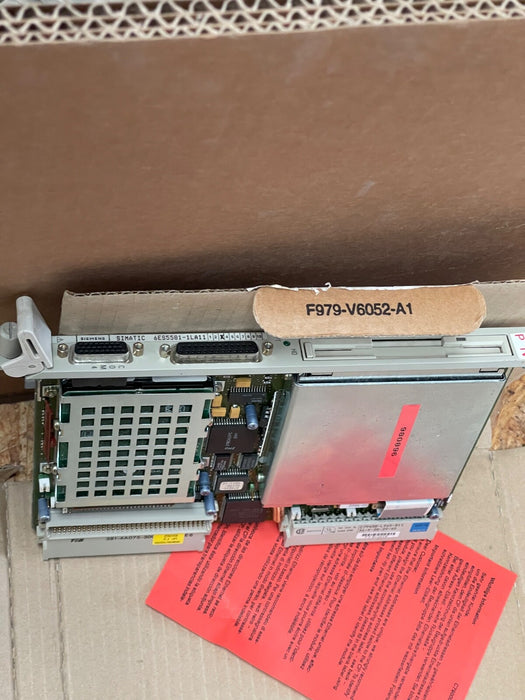

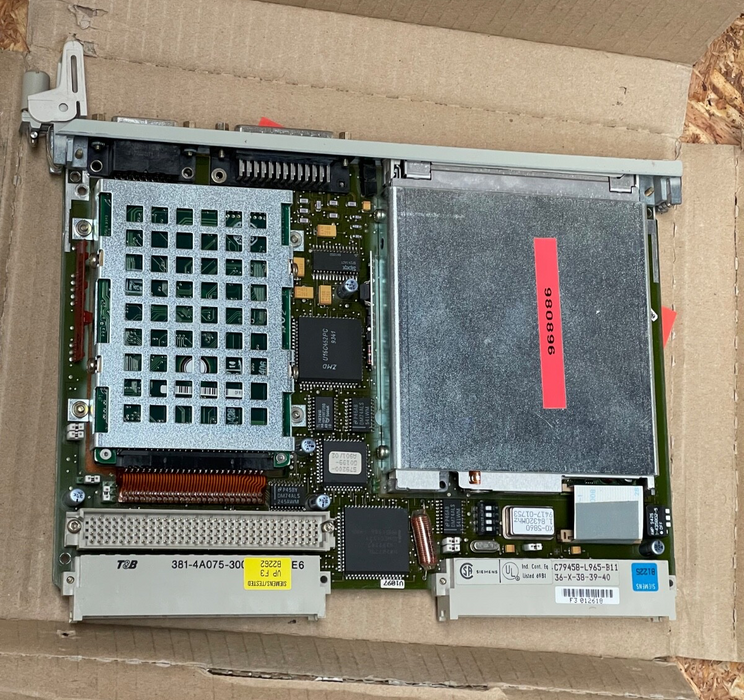

The Siemens 6ES5581-1LA11 is a SIMATIC S5 CP 581 mass storage module equipped with a 120 MB hard disk. Designed for integration with the SIMATIC S5-135U/150U PLC systems, this module facilitates the storage and retrieval of large volumes of process data, program files, and system logs. It supports MS-DOS-based applications and offers interfaces for peripheral connections, ensuring efficient data management in industrial automation environments.

Key Features:

Model: CP 581
Part Number: 6ES5581-1LA11
Brand: Siemens
Compatible Systems: SIMATIC S5-135U/150U

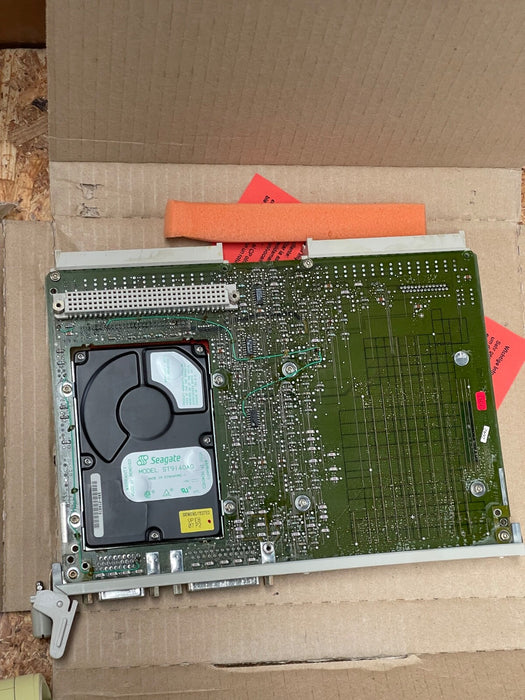

Storage Capacity: 120 MB hard disk
Interfaces:
- 3.5-inch floppy disk drive
- Serial interface (COM 4)
- Parallel interface (LPT)
Dimensions: Approximately 33.00 × 24.50 × 8.00 cm
Weight: Approximately 1.11 kg
Power Supply: Via S5 backplane bus
Applications: Ideal for process data acquisition, mass storage functions, and integration with MS-DOS-based applications in industrial automation systems
