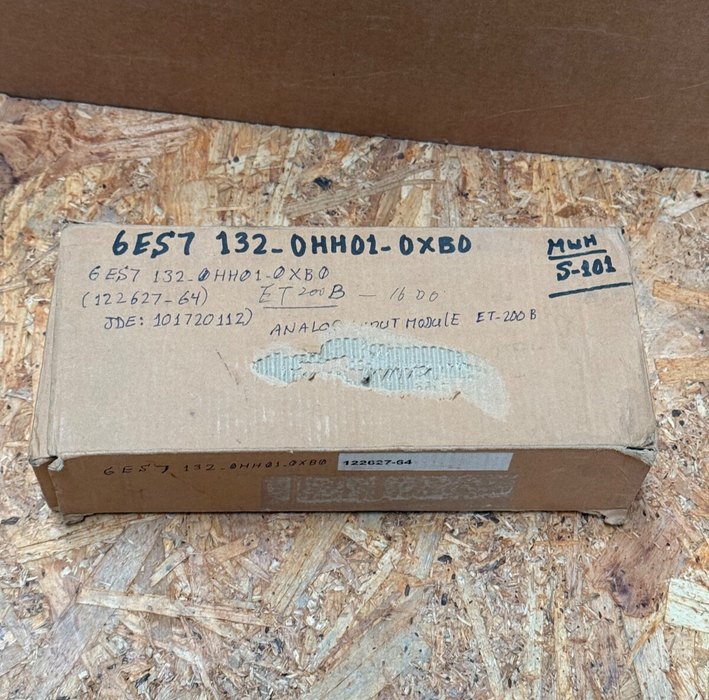

Siemens – 6ES7 132‑0HH01‑0XB0 – ET 200B Digital Output Module, 16 Relay Outputs

The Siemens 6ES7 132‑0HH01‑0XB0 is a spare-part digital output module for the ET 200B distributed I/O system. Featuring 16 relay outputs configured in 4 heavy-current (2–4 A) and 12 standard-current (2 A) channels, it’s suitable for switching AC loads up to 230 V. With a width of 235 mm and removable submodule design, this IP20 device supports universal AC voltage operation across Profibus‑DP systems.

 Key Features

• Model: 6ES7 132‑0HH01‑0XB0

• Function: 16 × relay outputs for ET 200B, Profibus‑DP submodule

• Output Type: AC relay, 120/230 V AC

• Output Currents: 4 heavy-duty outputs (2–4 A), 12 standard outputs (2 A)

• Width: 235 mm (fits TB6 terminal block)

• Voltage Range: 120/230 V AC

• Switching Frequency: Resistive ≤10 Hz; inductive ≤2 Hz

• Interface: Profibus‑DP digital via ET 200B backplane

• Mounting & Protection: 35 mm DIN‑rail; IP20 rated
