The Weidmüller IE-SW-BL08T-6TX-2SC is an unmanaged Fast Ethernet switch from the BasicLine series, designed to facilitate reliable network connectivity in industrial environments. Key features include:

• Port Configuration:

• 6 RJ45 ports supporting 10/100Base-T(X)

• 2 SC multi-mode fiber ports supporting 100Base-FX

• Transmission Distance:

• Fiber optic ports support transmissions up to 5 km, suitable for medium-range networking applications.

• Operating Temperature:

• Designed to operate within a temperature range of -40°C to 75°C, accommodating harsh industrial environments.

• Protection Rating:

• IP30-rated metal housing, providing protection against solid objects larger than 2.5 mm, ensuring durability in industrial settings.

• Mounting:

• DIN rail mountable, facilitating easy integration into existing industrial setups.

• Power Supply:

• Accepts a wide input voltage range from 9.6 to 60 V DC and 18 to 30 V AC, offering flexibility in power sourcing.

• Features:

• Broadcast storm protection to enhance network reliability.

• Auto-negotiation and auto-MDI/MDI-X support on the RJ45 ports, simplifying network setup and ensuring compatibility with various devices.

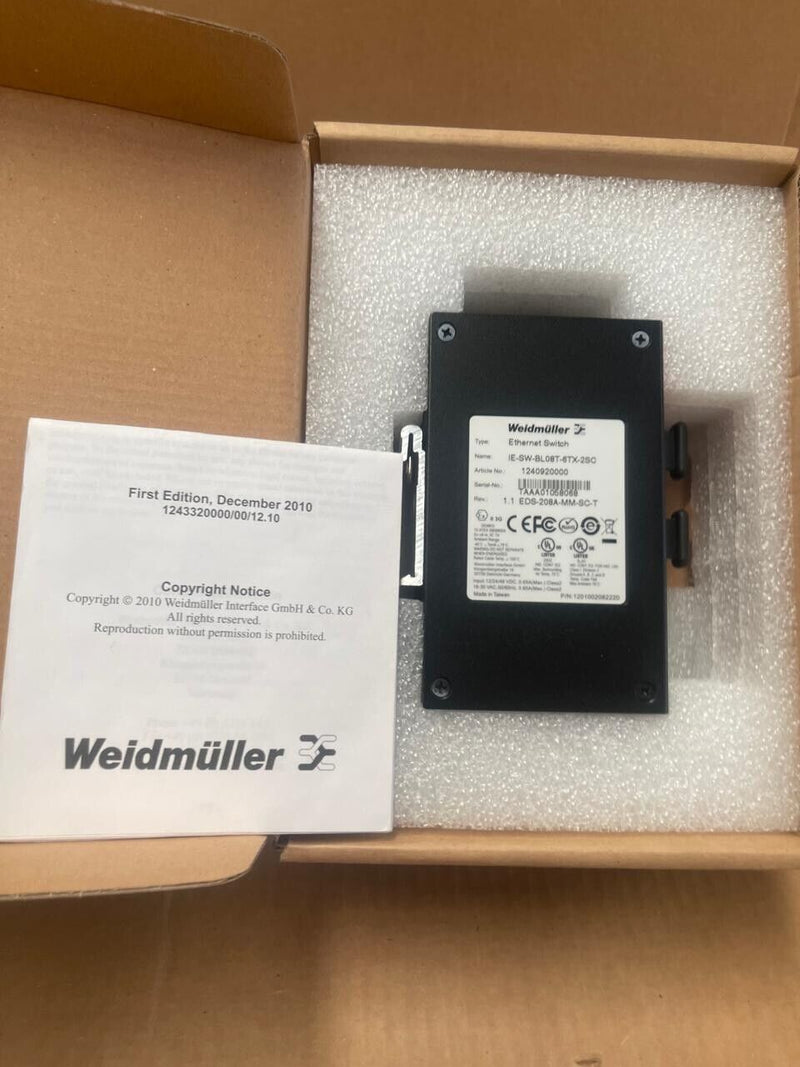

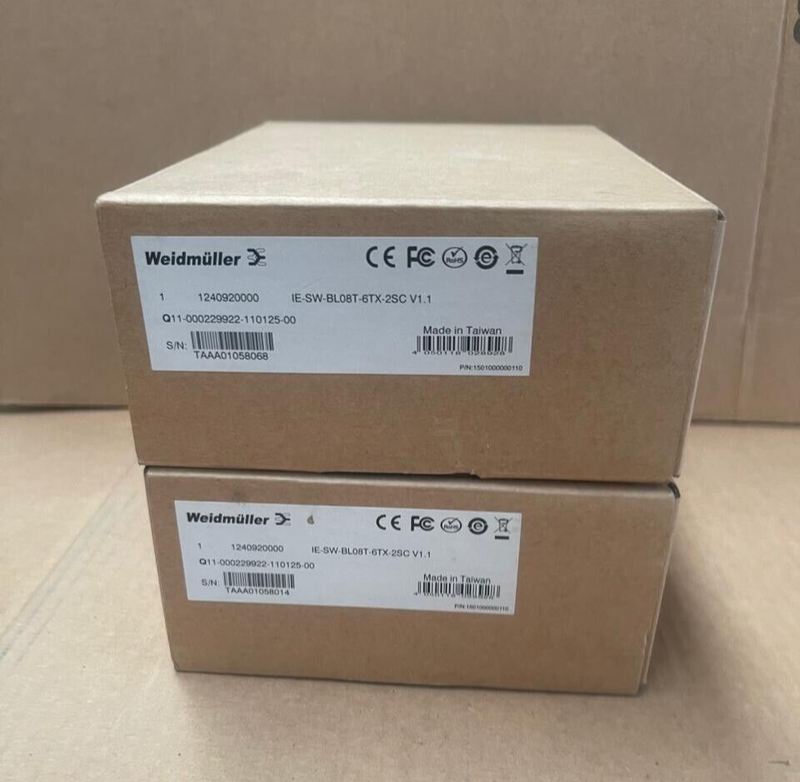

Weidmüller - 1240920000 - IE-SW-BL08T-6TX-2SC Unmanaged Ethernet Switch
