Main Features

Manufacturer: Weidmüller – PRO TOP1 Series
Model/MPN: 2467030000, also listed as PRO TOP1 480 W 48 V 10 A
Output: 48 V DC, 10 A (480 W) with up to 150 % peak boost for 5 s and 500 % for 15 ms
Input:
- AC: 85–277 V AC (45–65 Hz)
- DC: 80–410 V DC
Efficiency & Power Factor: 93 % efficiency, PF > 0.9
Protection:
- Internal fuse
- Short-circuit, reverse-polarity, overload protection
- Surge suppression (varistor)

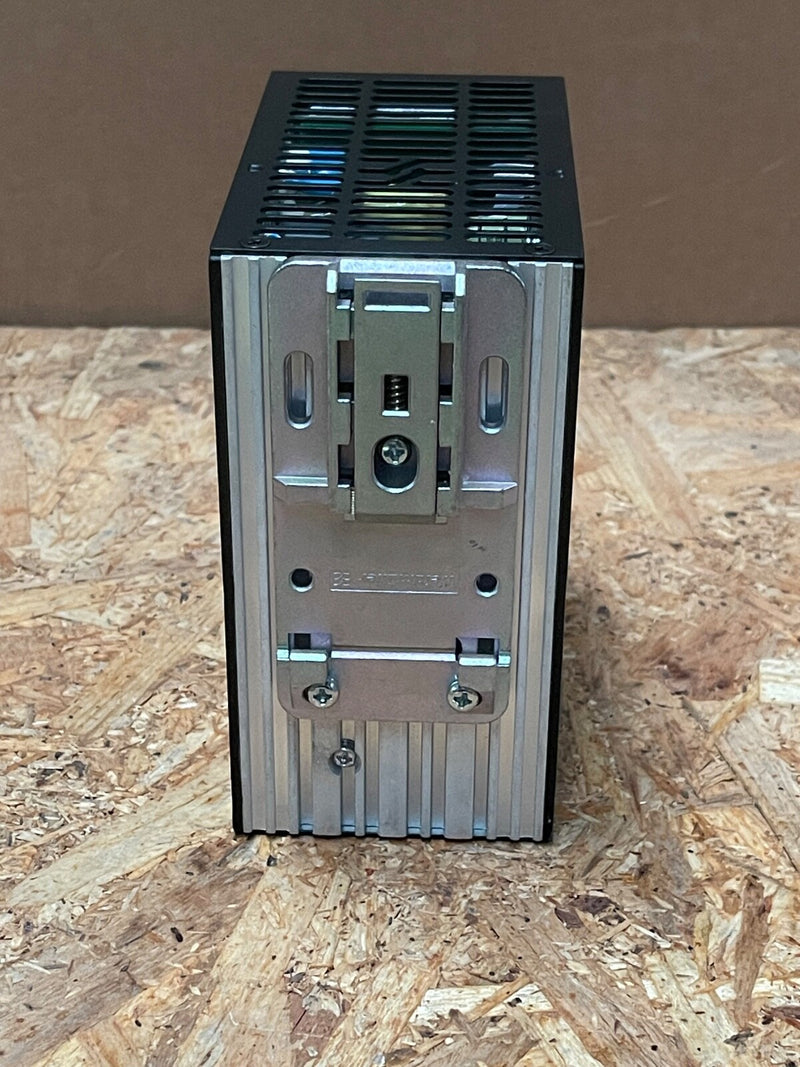

Mounting: DIN-rail, enclosed metal housing, IP20 rating
Dimensions & Weight: 68 mm × 125 mm × 130 mm; ~1.52 kg
Environment:
- Operating: –25 °C to +70 °C (derating >60 °C)
- Storage: –40 °C to +85 °C
- Shock: 30 g, Vibration: 2.3 g on rail / 4 g directly mounted
Reliability: MTBF > 1.1 million hours at 25 °C, > 0.55 million hours at 40 °C
Certifications/Standards:
- RoHS compliant
- EMC (EN 55032/B, 55024)
- Surge category III/II, insulation to 3.5 kV
- PEAK backup bridging > 20 ms at nominal load

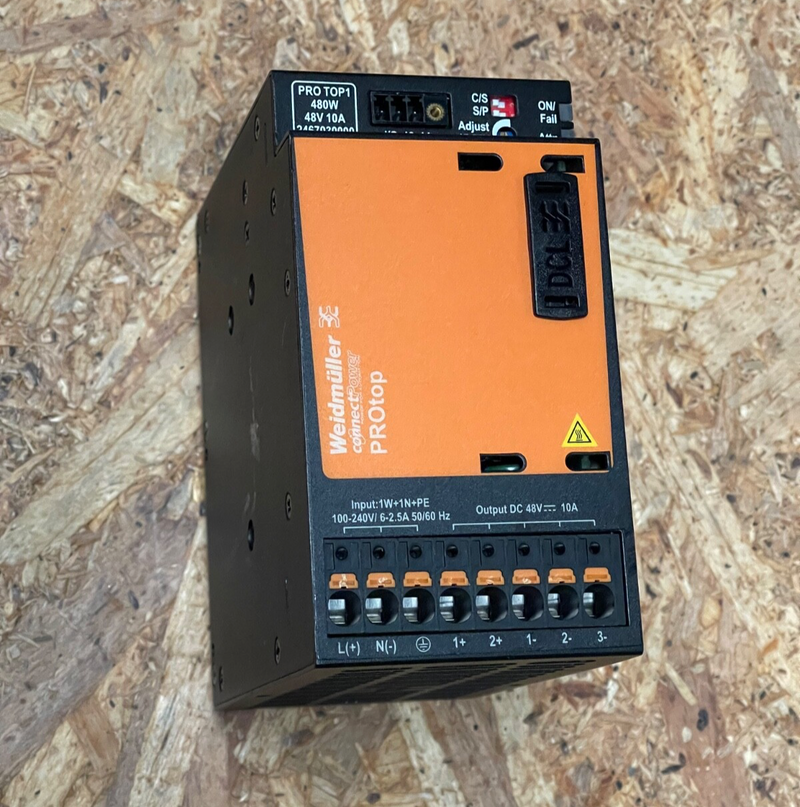

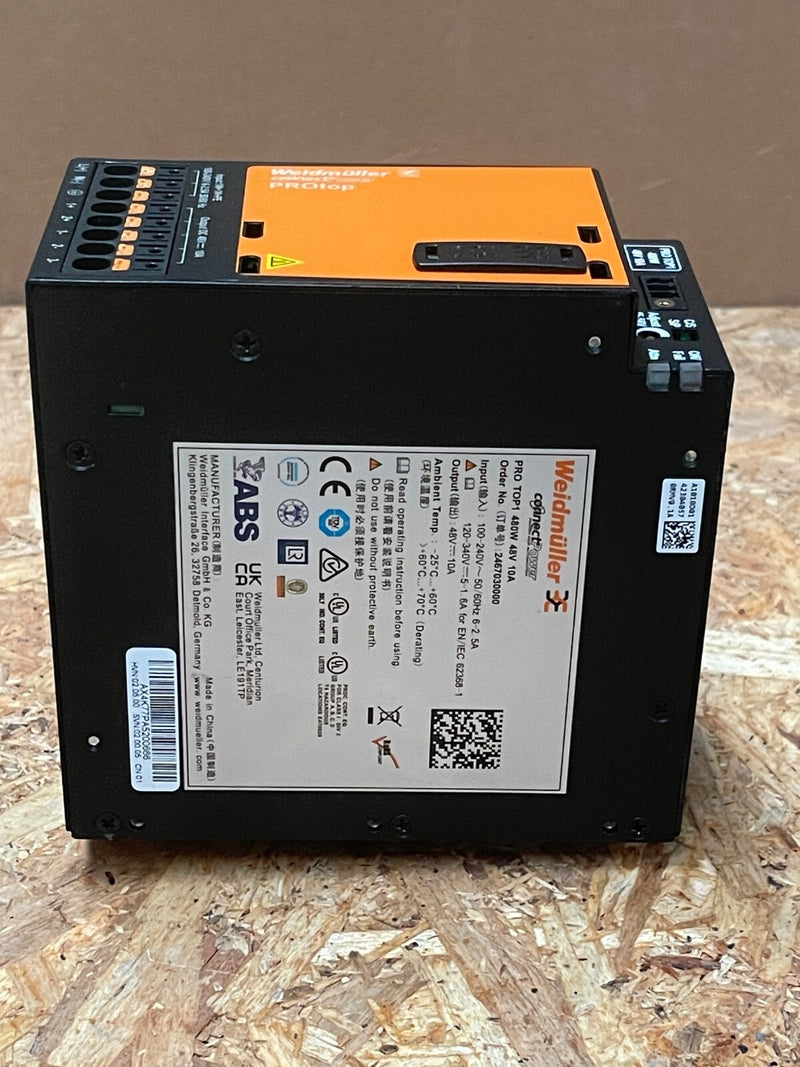

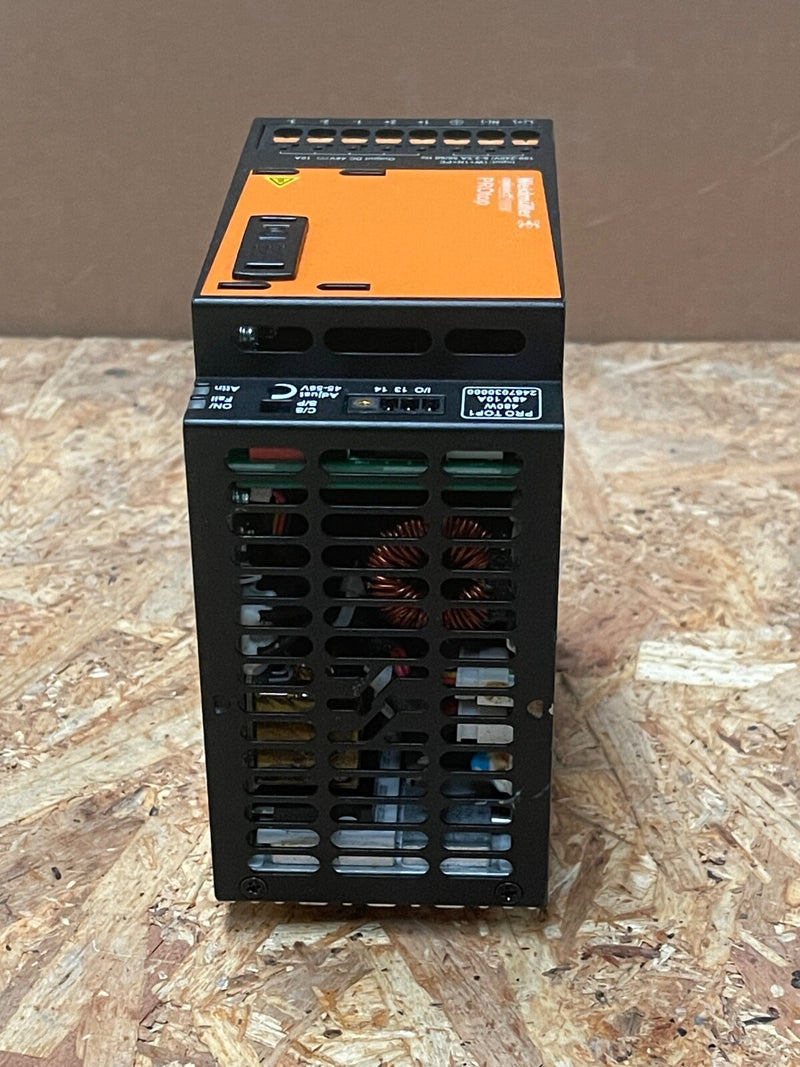

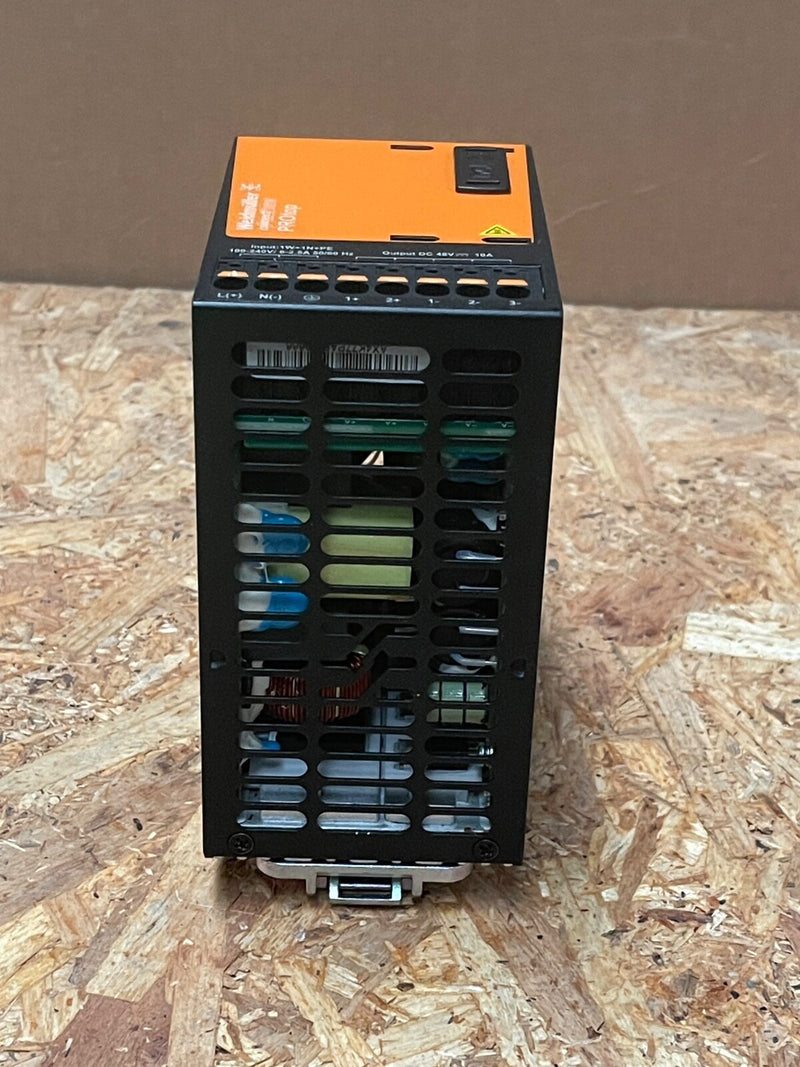

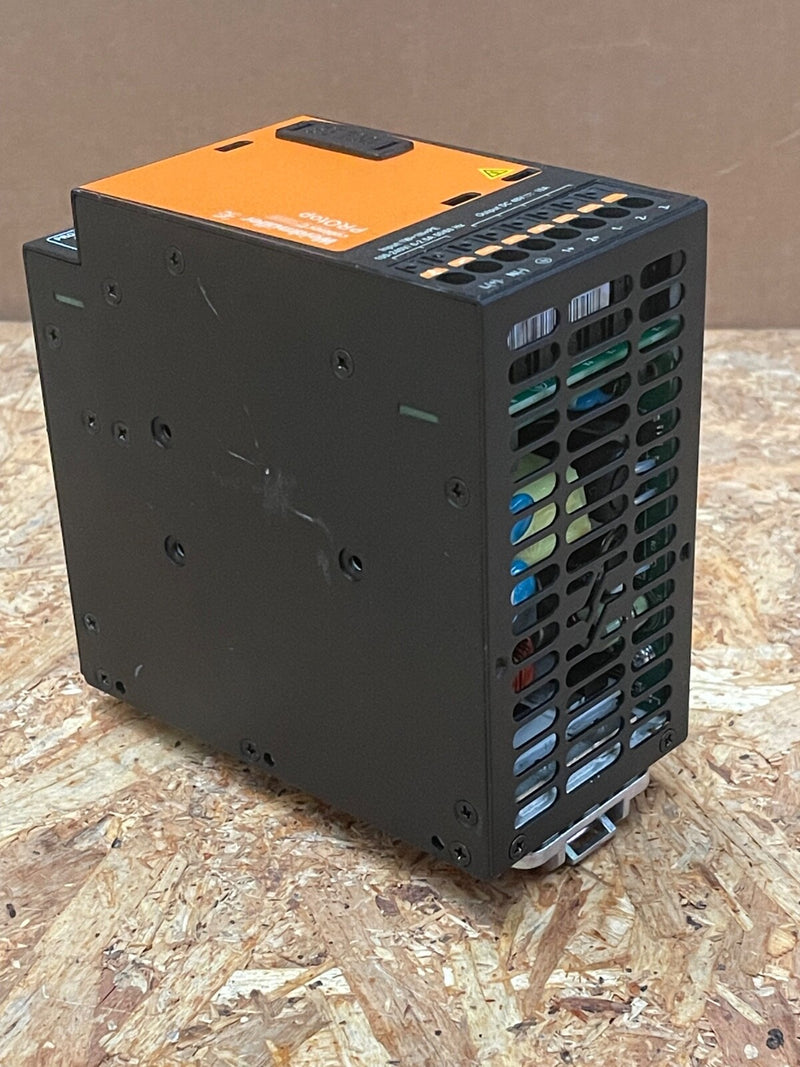

Weidmüller – 2467030000 – PRO TOP1 480 W Power Supply, 48 V DC, 10 A, DIN-Rail
