Manufacturer: Weidmüller – ValueLine series
Model/MPN: IE‑SW‑VL08MT‑8TX (Order No. 1240940000)
Device Type: Managed industrial Ethernet switch with 8 RJ‑45 ports (10/100 Mbps) and RS‑232 console port

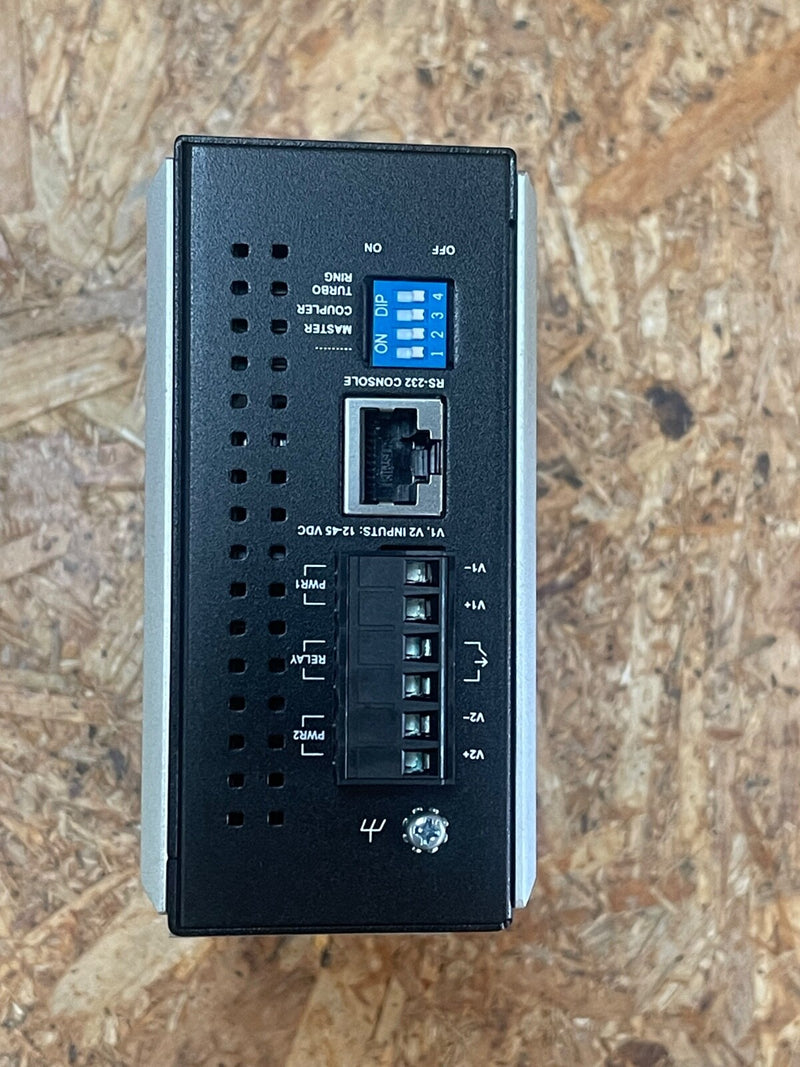

Power Supply: 12–45 V DC, DIN‑rail terminal connector with reverse‑polarity and overload protection
Operating Range: –40 °C to +75 °C; IP30-rated metal housing for rugged installations
Industrial Features:
- Supports Turbo‑Ring/Turbo‑Chain for network redundancy (<20 ms recovery)
- VLAN, QoS, IGMP snooping, port mirroring, SNMP v1/v2c/v3, syslog, and RMON
- PROFINET Device Conformance Class B, EtherNet/IP, Modbus/TCP slave support
Diagnostics & Interfaces:

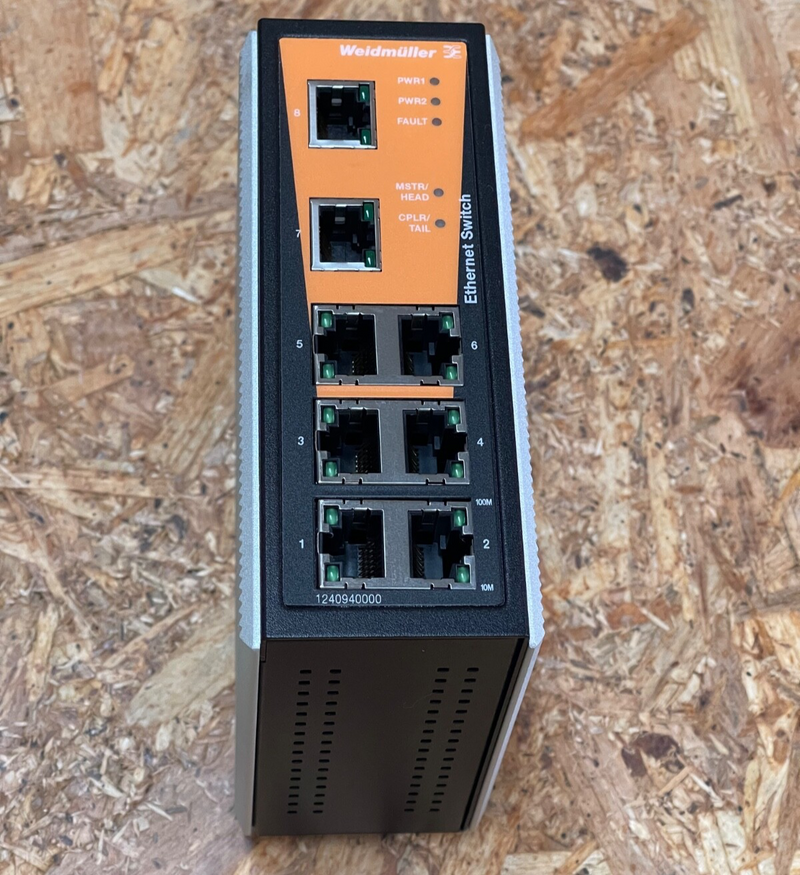

- LED indicators (PWR1/2, FAULT, MASTER/COUPLER, 10/100M)
- Relay output for fault/alarm signaling
Certifications: CE, cULus, UL508, UL60950‑1, ATEX Zone 2 Ex nA, DNV marine approvals

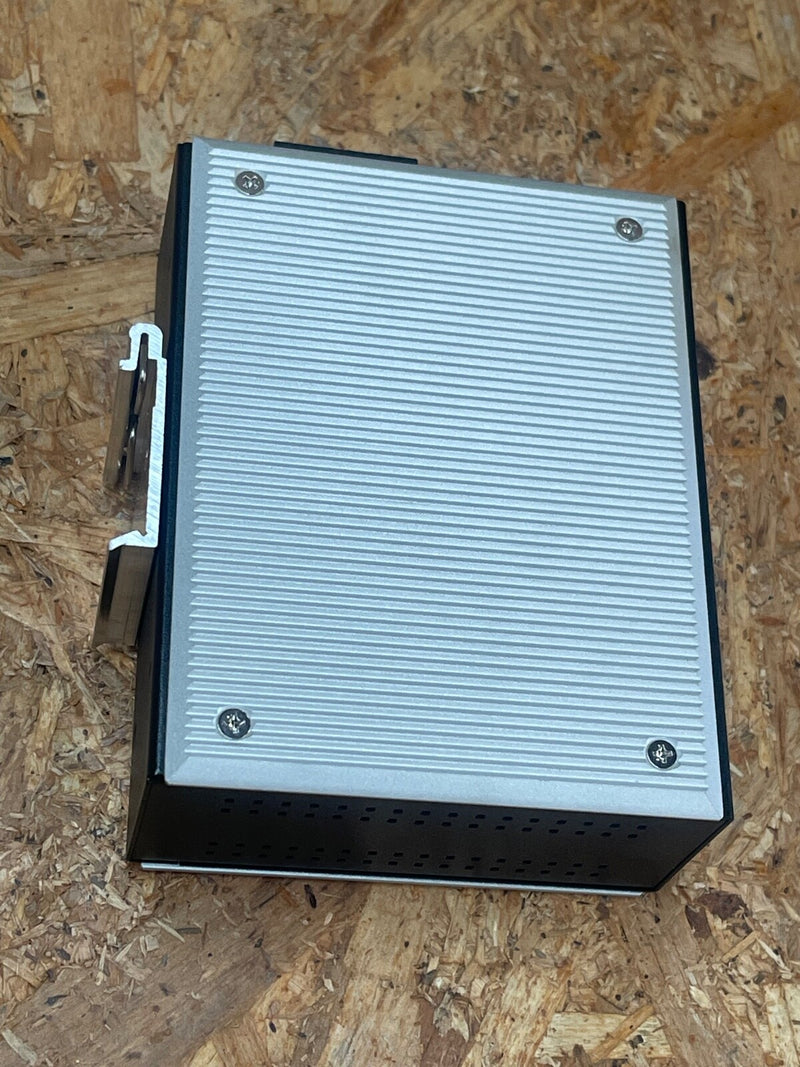

Dimensions & Mounting: 53.6 mm × 105 mm × 135 mm; weighs ~890 g; DIN‑rail (EN 50022) mountable

Weidmüller – IE-SW-VL08MT-8TX (1240940000) – Managed 8-Port Industrial Ethernet
