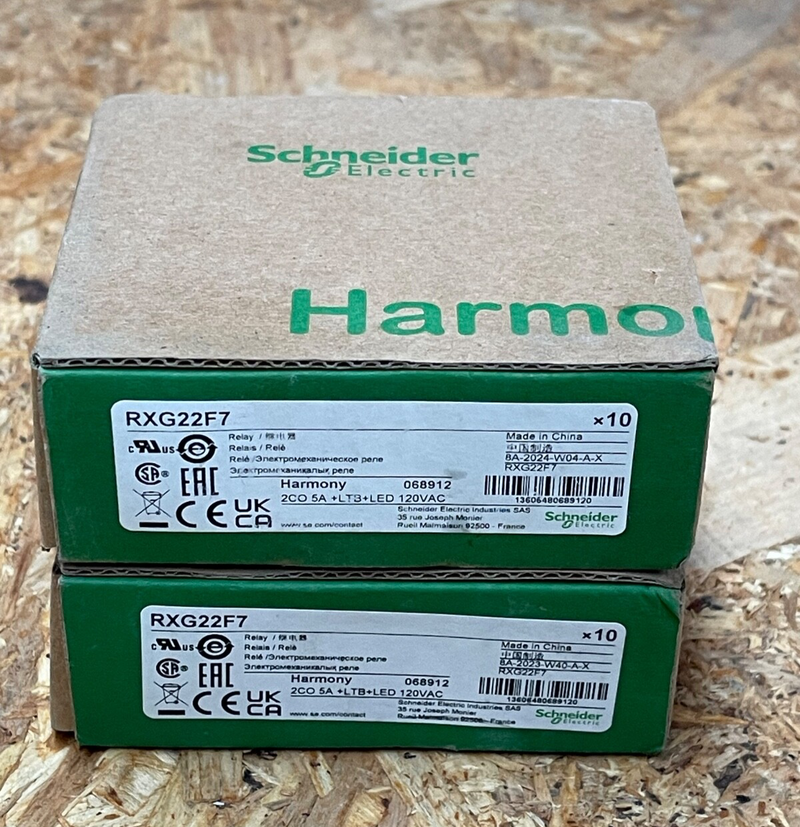

10PCs Schneider Electric – RXG22F7 – Harmony Plug-in Interface Relay, 2 C/O

Main Features:

• Manufacturer: Schneider Electric (Harmony Zelio relay series)

• Model/MPN: RXG22F7

• Relay Type: Electromechanical plug‑in interface relay with DPDT (2 Form C) contacts

• Coil Voltage: 120 V AC, 19 mA coil current

• Contact Ratings: Rated for switching up to 5 A at 250 VAC or 30 V DC; max switching capacity 1 250 VA

• Indicators & Test: Built-in LED status indicator and lockable manual test button for easy diagnostics and maintenance

• Mounting: Quick-connect Faston pins, suitable for standard AZBE sockets; compact 29 × 36.5 × 13 mm housing

• Operating Specs: Mechanical durability ~10 million cycles; operating temperature −40 °C to +70 °C; conforms to IEC/EN 61810-1, UL, CSA, CE certifications

• Typical Use: Reliable interface for PLC or control circuits in industrial equipment — ideal for logic control, status indication, and isolation tasks
