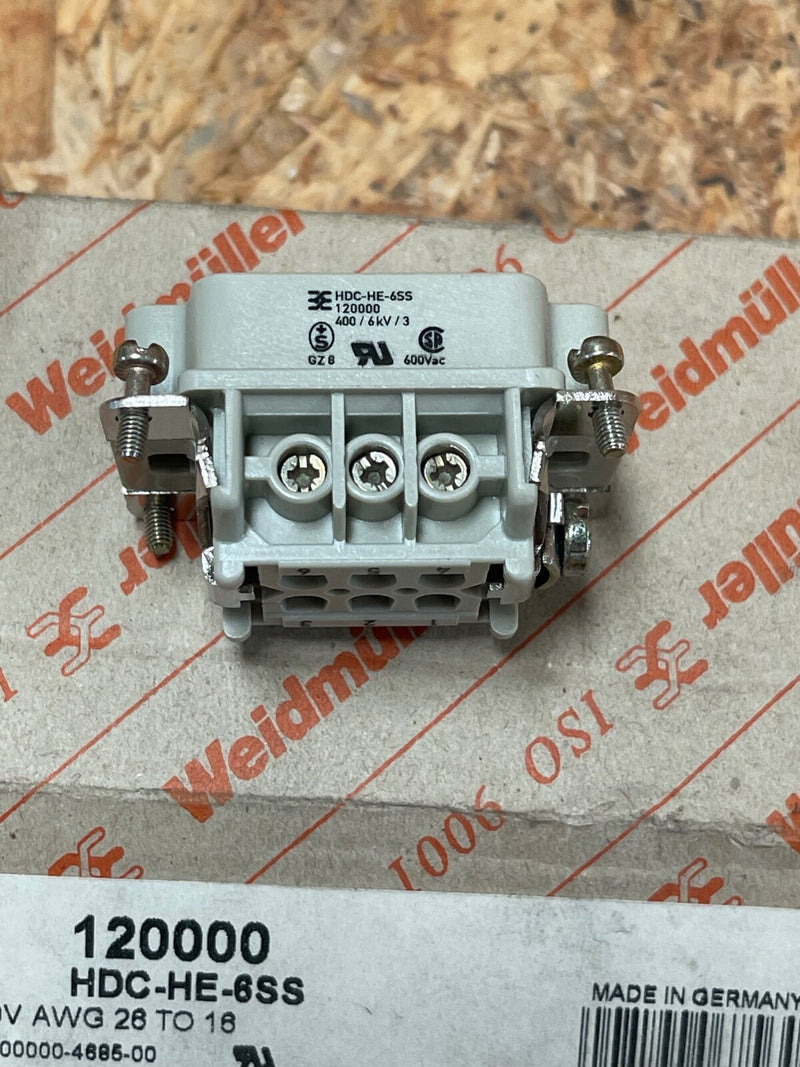

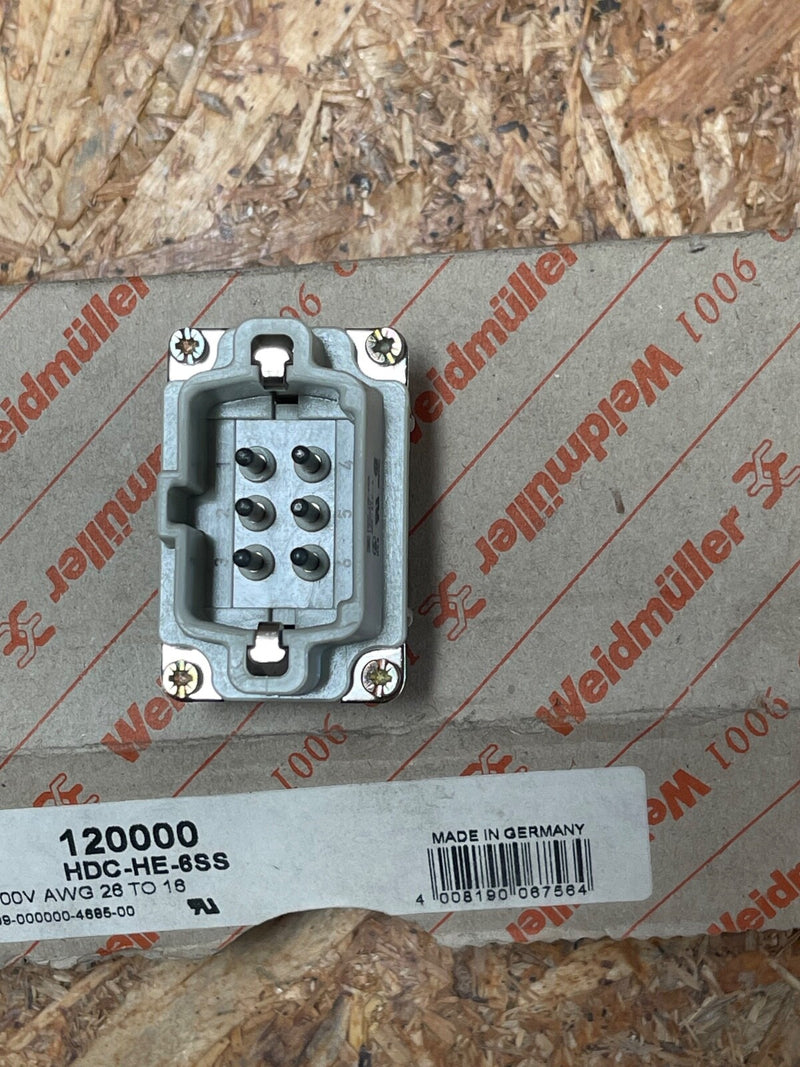

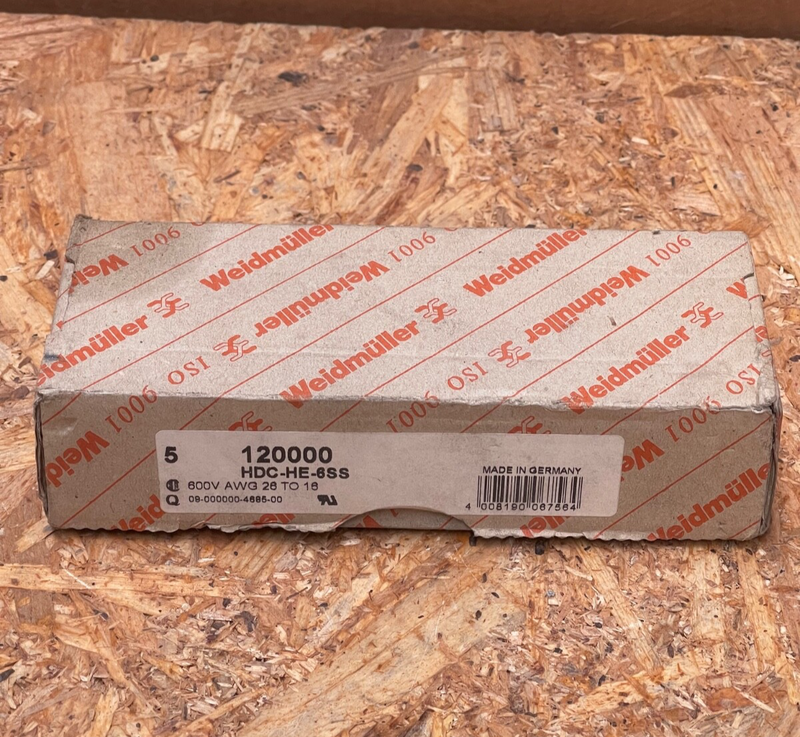

4PC Weidmüller – HDC‑HE‑6SS (120000) – Heavy‑Duty 6‑Pole Male Screw‑Clamp Insert

Main Features

• Manufacturer: Weidmüller (RockStar® HDC HE series)

• Model/MPN: HDC‑HE‑6SS (male insert), internal part number 120000

• Connector Type: Rectangular heavy‑duty male insert with 6 pins, designed for robust industrial power and signal transmission

• Electrical Ratings:

  • Rated current: 24 A per pole (IEC), 20 A per pole (UL)

  • Rated voltage: 500 V (IEC), 600 V (UL/CSA)

  • Impulse withstand voltage: 6 kV

• Wire Termination: Screw‑clamp terminals, accepts 0.5–2.5 mm² (AWG 20–12), M3 clamping screws, 9 mm strip length

• Mechanical Details:

  • Housing size 3

  • Insert dimensions: 34 × 51 × 35.7 mm (W×D×H), 49 g

  • Temperature rating: –40 °C to +125 °C operating (–40 °C to +100 °C typical)

• Construction Materials: Glass-fiber reinforced polycarbonate insert; male copper-alloy contacts with silver plating; PCB-level reliability >500 mating cycles

• Certifications: UL94 V‑0 flammability, RoHS compliant, CSA/cURus approvals
