ABB – 1SAP240100R3001 (DC532) – 16 DI/16 DC Digital I/O Module, 24 V DC

The ABB DC532 (1SAP240100R3001) is a reliable digital input/output expansion module designed for ABB S500 and AC500 PLC systems. Offering a balanced combination of input and output channels, this IP20-rated module integrates effortlessly into 35 mm DIN-rail setups, providing seamless field control in industrial applications.

Key Features:

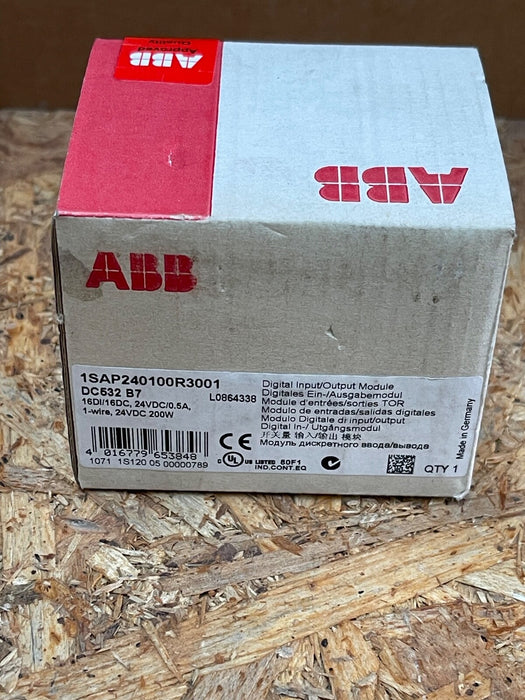

• Model: DC532 (P/N 1SAP240100R3001, KBA L0864338)

• I/O Configuration: 16 digital inputs + 16 digital outputs; single-wire architecture

• Supply Voltage: 24 V DC; power consumption up to 0.5 A @ 24 V per module

• Channel Output Rating: 0.5 A @ 24 V DC per channel

• Protection Rating: IP20 enclosure; operational temperature up to 60 °C

• Backplane Mounting: Din-rail with S500 / AC500 bus connectors; removable terminal units for convenient wiring

• Dimensions & Weight: Approx. 54 × 76 × 68 mm; 0.14 kg

• Country of Manufacture: Sweden
