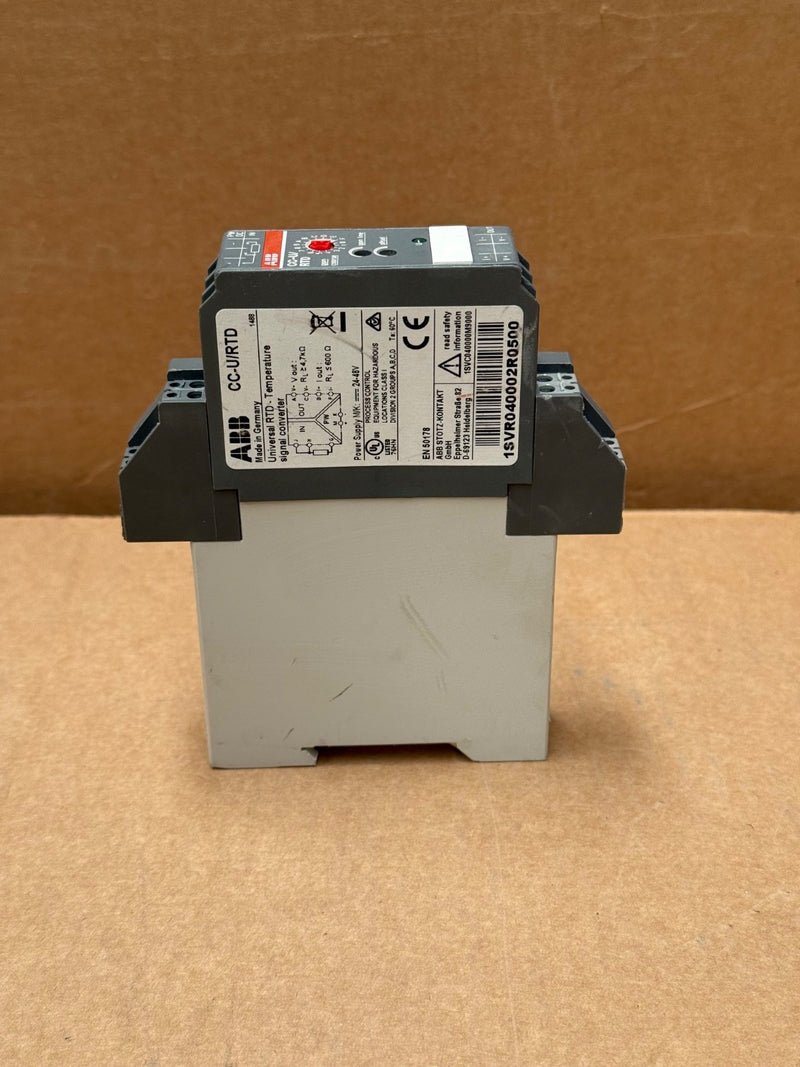

ABB – 1SVR040002R0500 CC‑U/RTD – Universal RTD Signal Converter 24–48VDC/24VAC

The ABB CC‑U/RTD (1SVR040002R0500) is a universal, pluggable RTD (resistance thermometer) signal converter designed for DIN-rail mounting in control panels. It accepts PT10, PT100, or PT1000 sensor inputs and outputs configurable analog signals, making it ideal for automation, temperature monitoring, and PLC interfacing in industrial systems. Featuring 3-way isolation, LED status, and DIP-switch configuration, this converter ensures accurate, reliable readings.

Key Features:

• Model: CC‑U/RTD (ABB 1SVR040002R0500)

• Sensor Inputs: PT10 (0–850 °C), PT100 (0–500 °C), PT1000 (0–60 °C) selectable via DIP switches

• Output Signals: Configurable 0…±11 V or 0…±55 mA (41 ranges via DIP)

• Supply Voltage: 24–48 V DC or 24 VAC, 50/60 Hz

• Isolation: 3-way electrical isolation—sensor, supply, output

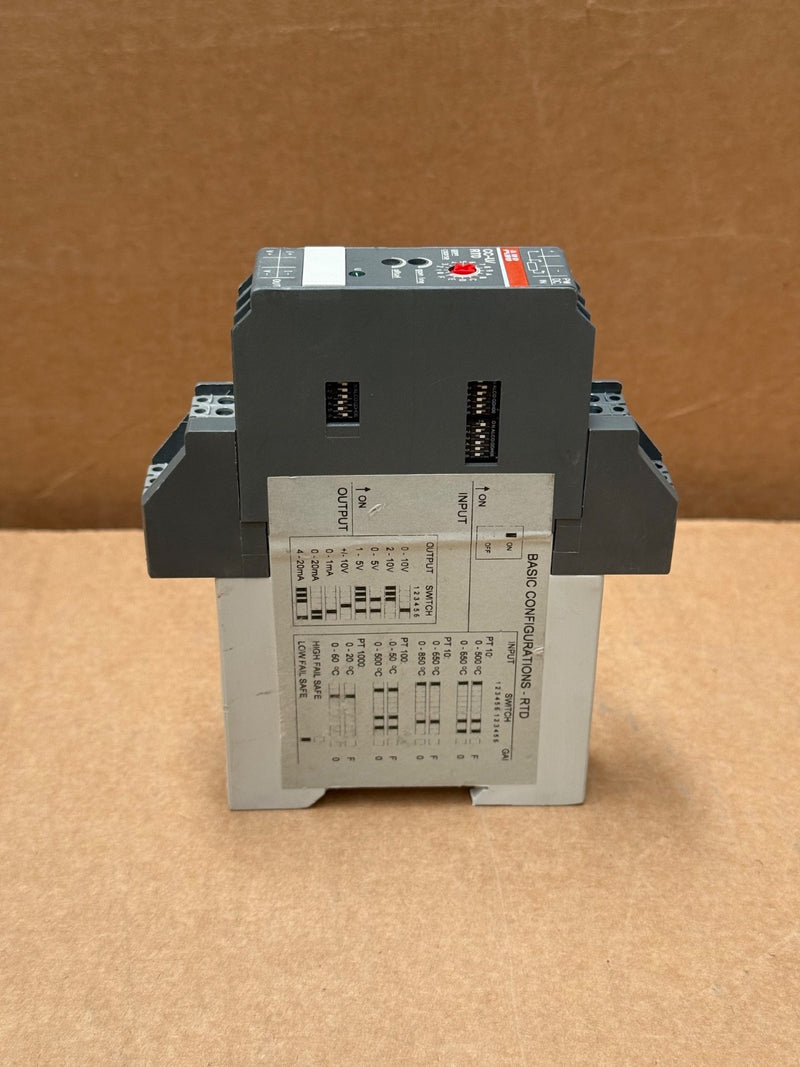

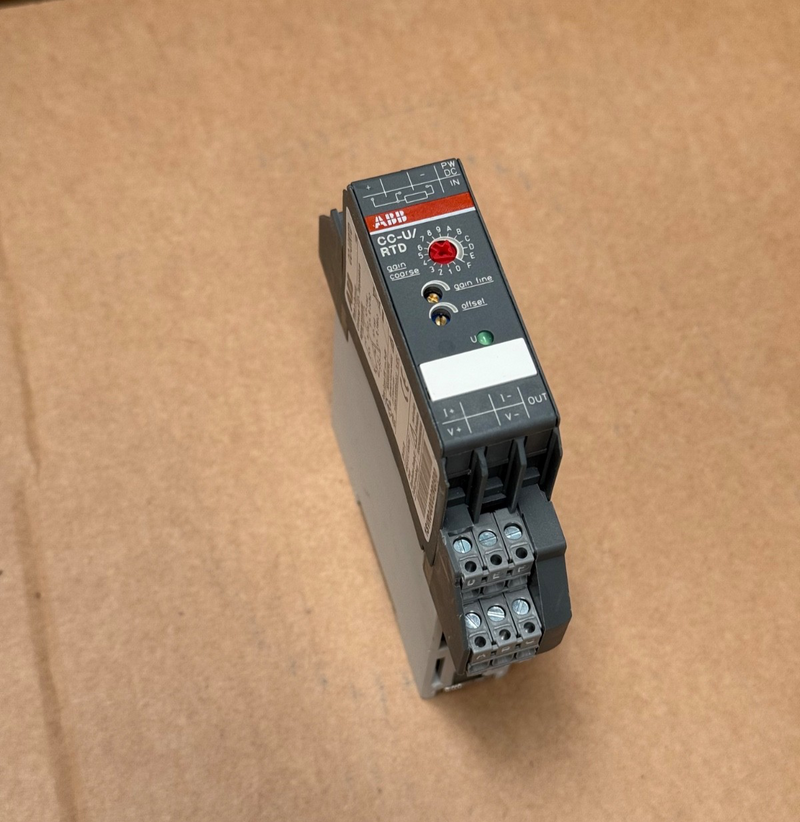

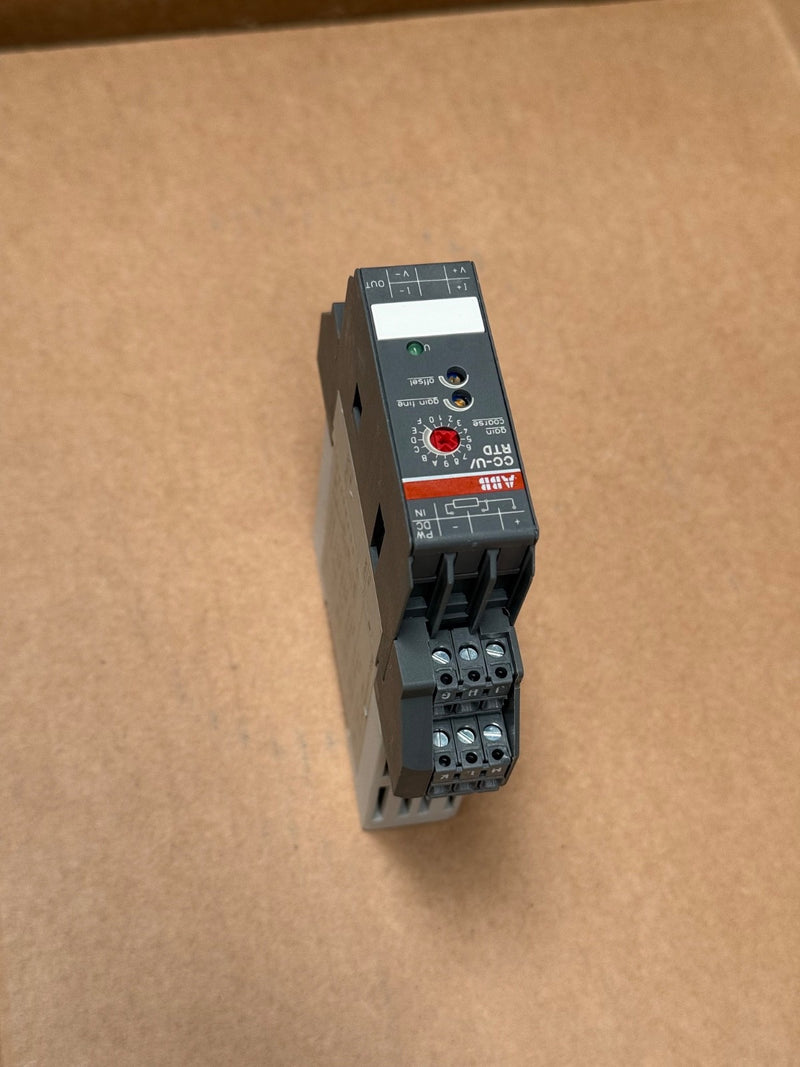

• Controls: Front-panel LED shows supply status; front-mounted gain and offset adjusters; DIP configuration accessible on the side

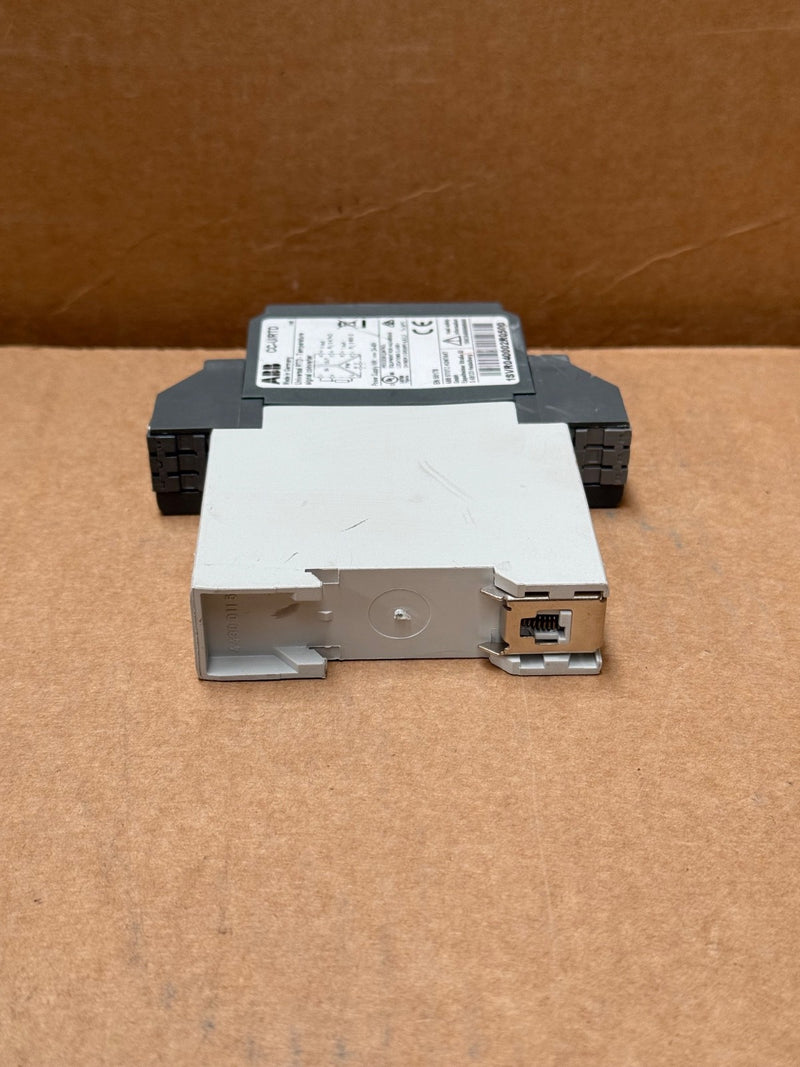

• Form Factor: Slim 22.5 mm DIN-rail housing; pluggable terminal block design

• Certifications: CE, RoHS compliant; UL/cUL508, cUL1604 listed

• Part Dimensions: 22.5 mm × 105 mm × 120 mm; weight ~0.126 kg
