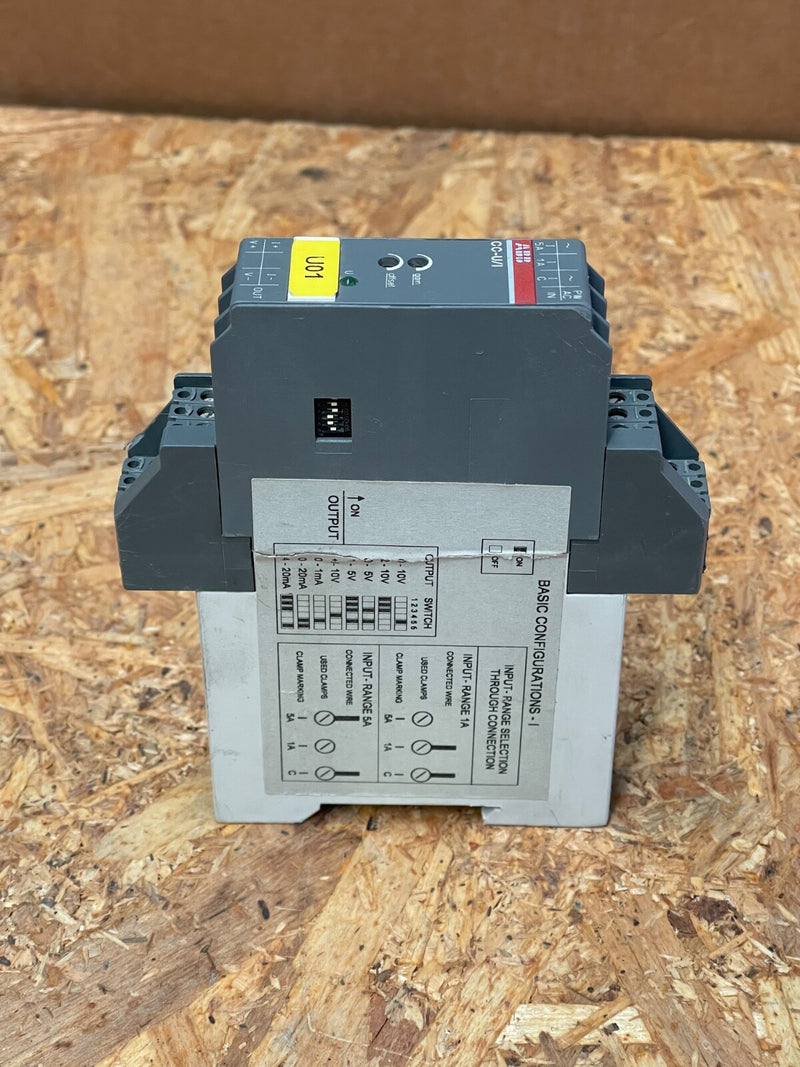

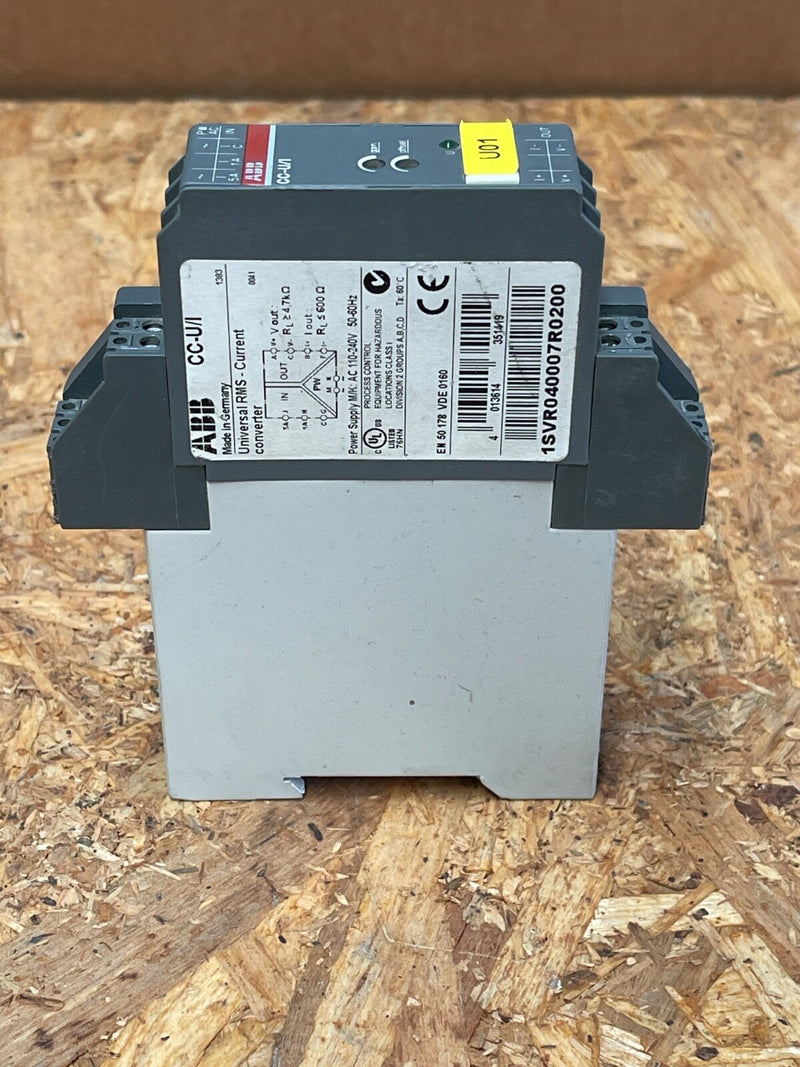

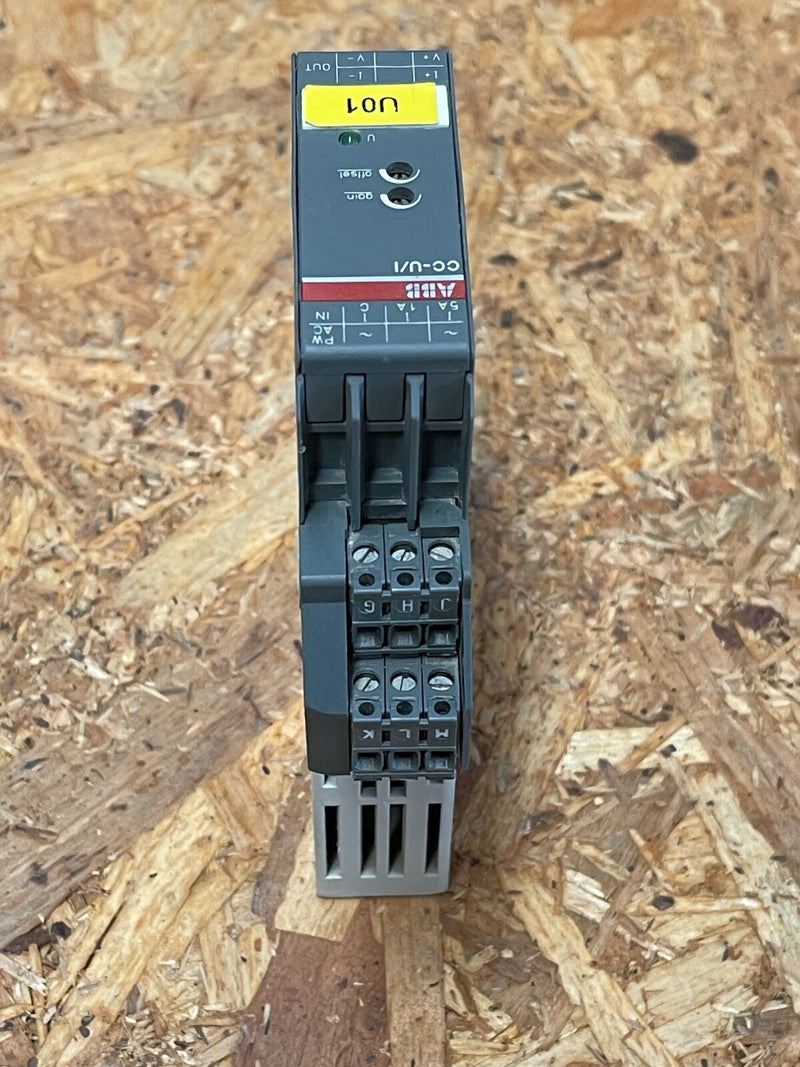

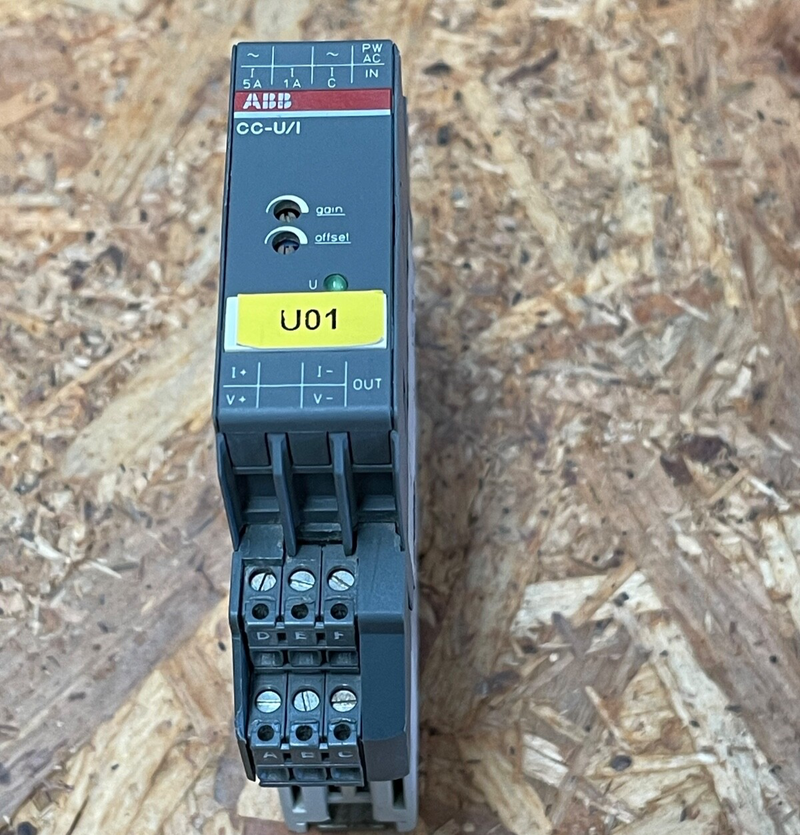

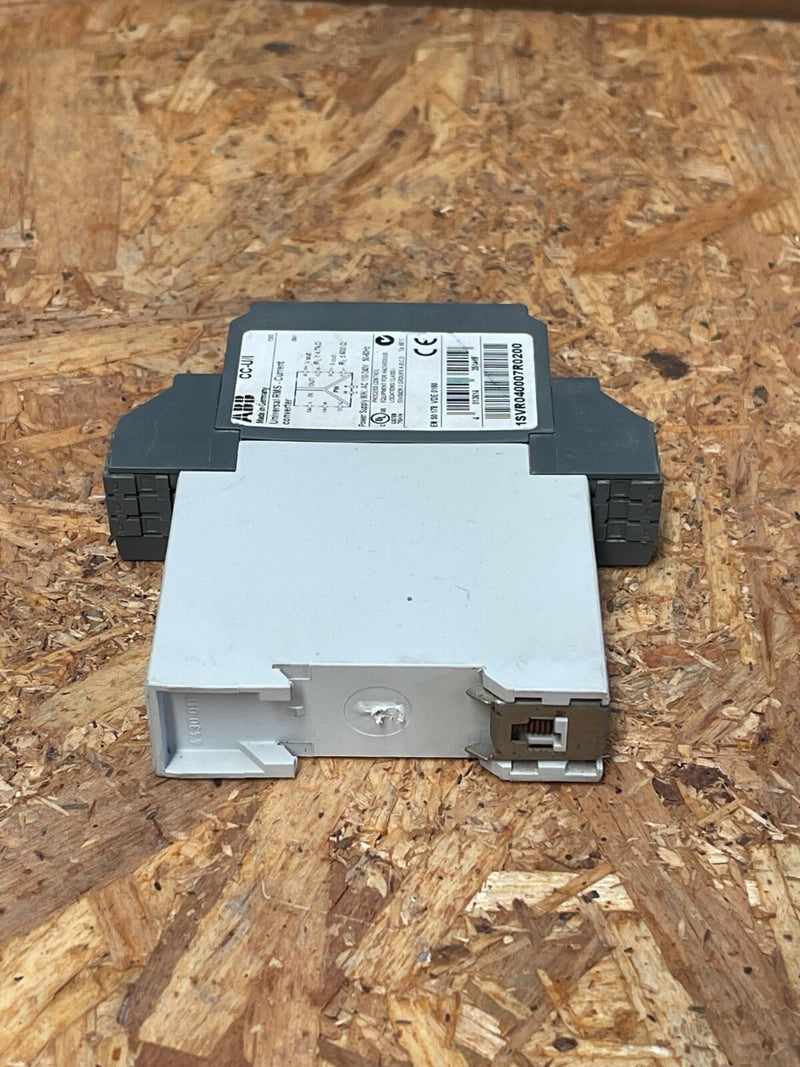

ABB - 1SVR040007R0200 - CC-U/I Universal Signal Converter, 0–5A Input, ±11V Outp

The ABB 1SVR040007R0200 (CC-U/I) is a universal signal converter designed for precise current measurement and signal isolation in industrial automation systems. It accepts RMS current inputs up to 5 A AC/DC and provides configurable analog outputs, making it suitable for a wide range of applications.

Key Features:

• Model: CC-U/I

• Part Number: 1SVR040007R0200

• Brand: ABB

• Input Signal: 0–1 A or 0–5 A AC/DC RMS

• Output Signal: Configurable 0–±11 V or 0–±55 mA

• Control Supply Voltage: 110–240 V AC / 100–300 V DC

• Mounting: DIN rail

• Isolation: 3-way electrical isolation

• Configuration: DIP switches for input/output range selection; front-face gain and offset adjustment

• Protection: Short-circuit proof outputs

• Operating Temperature: -20°C to +60°C

• Housing: 22.5 mm width, IP20 rated
