ABB – 2TLA022316R2000 – OMC1 Connection Box for Orion3 Light Guards

Main Features

• Manufacturer: ABB Jokab Safety (Orion3 accessory)

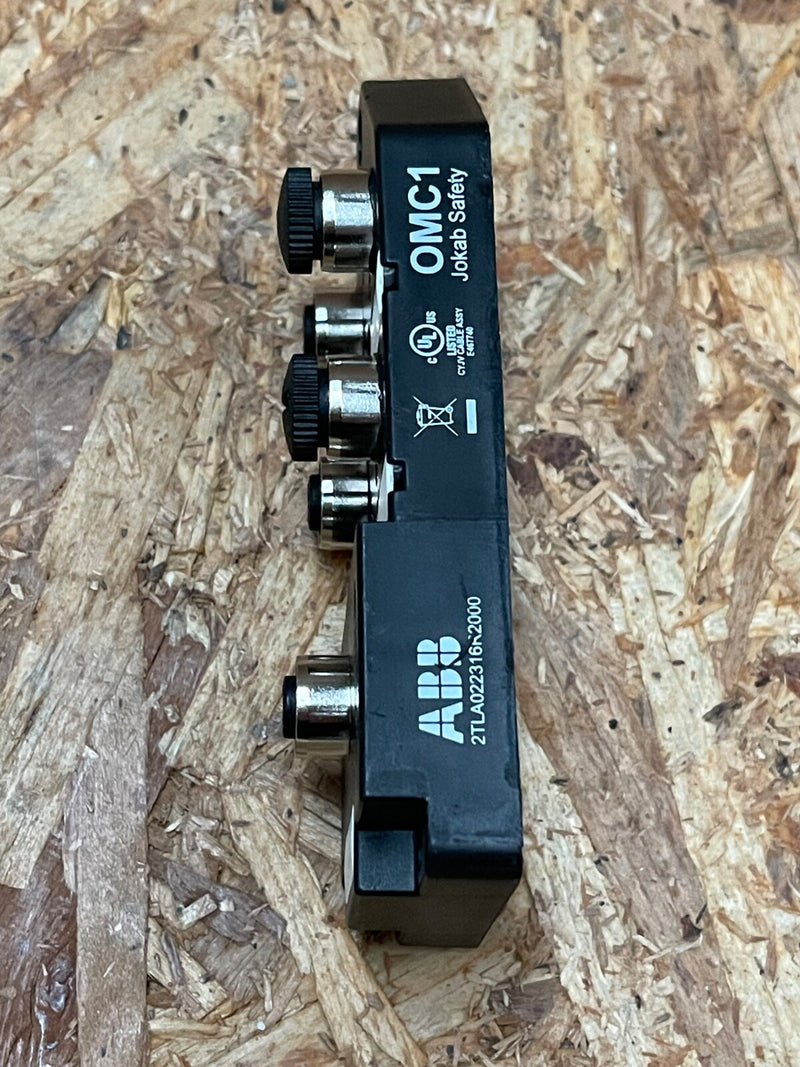

• Model/MPN: 2TLA022316R2000 – designated OMC1 muting connection box

• Purpose: Junction interface enabling connection of two or four muting sensors (e.g., retro-reflective photoelectrics) to an Orion3 Extended or Base light curtain system

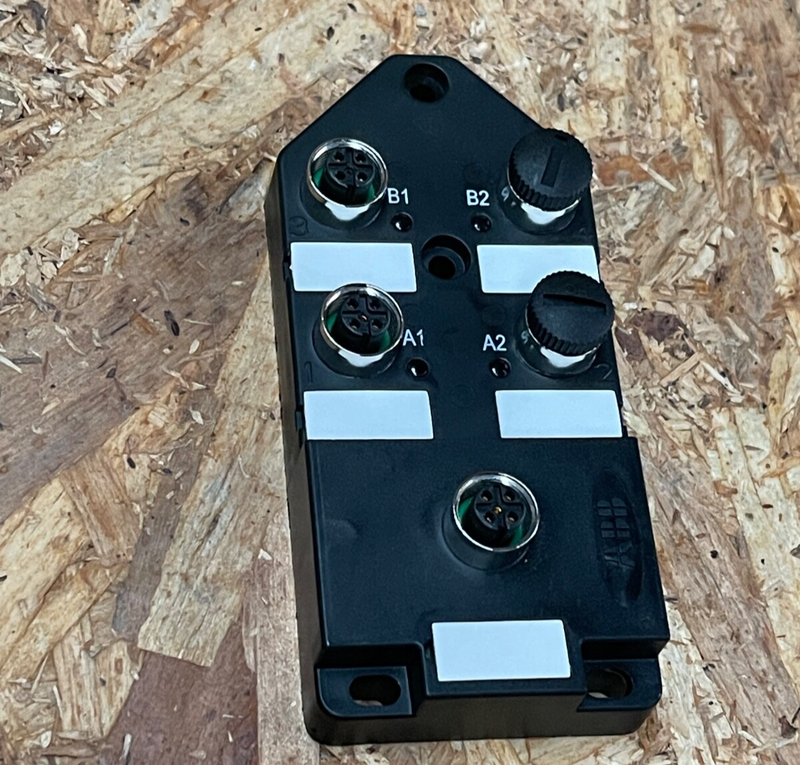

• Connections: Four M12 connectors labeled A1, A2, B1, B2 for muting sensors; integrates with light guard via M12-8 male connector

• Functionality: Consolidates muting sensor inputs locally, reducing cabling and supporting a streamlined safety circuit design

• Mounting & Housing: Compact IP-rated enclosure suited for industrial environments; mounts directly near sensor arrays to save wiring to control cabinet
