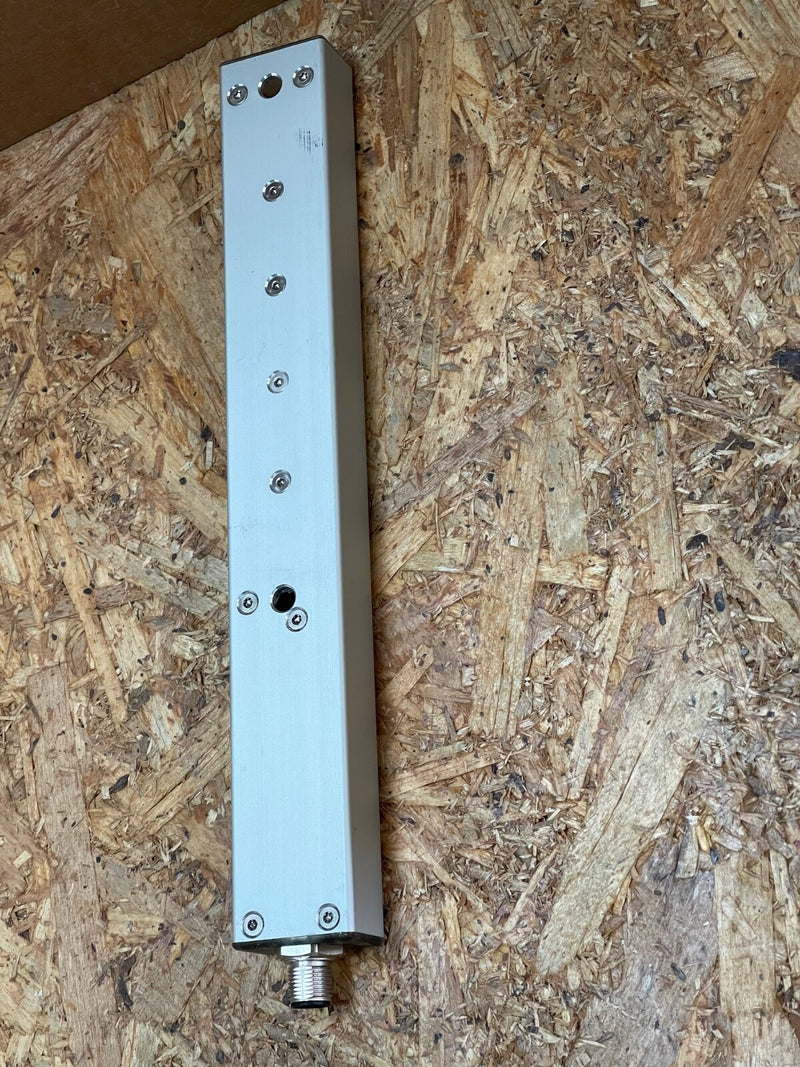

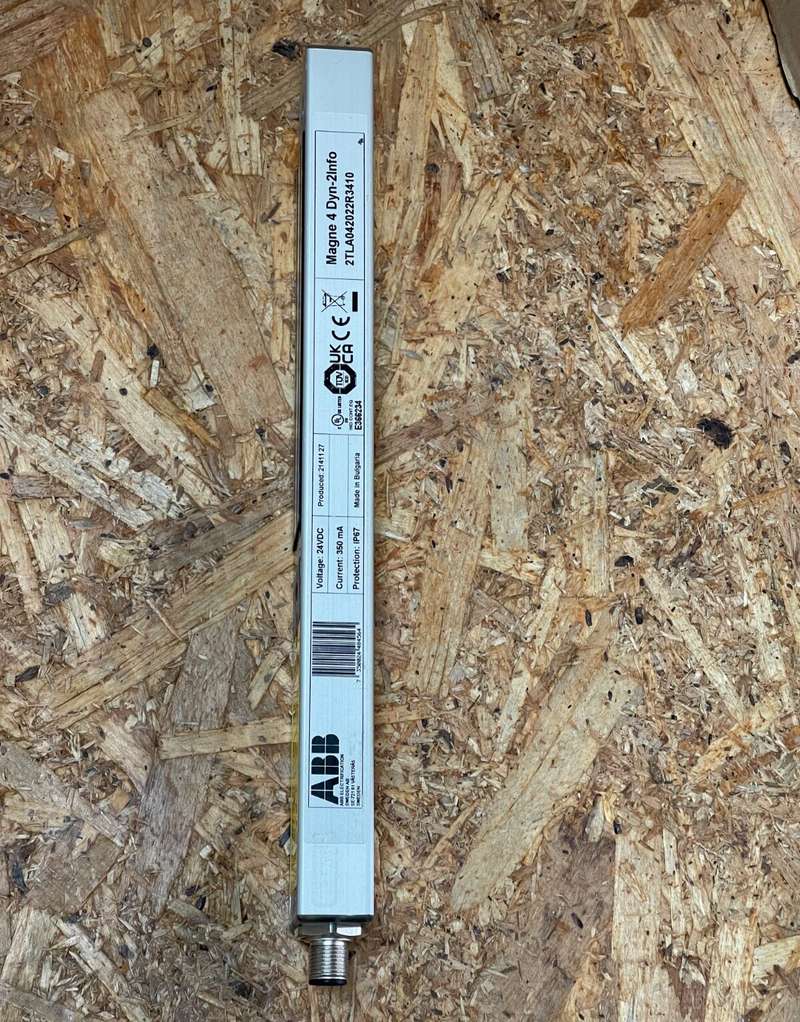

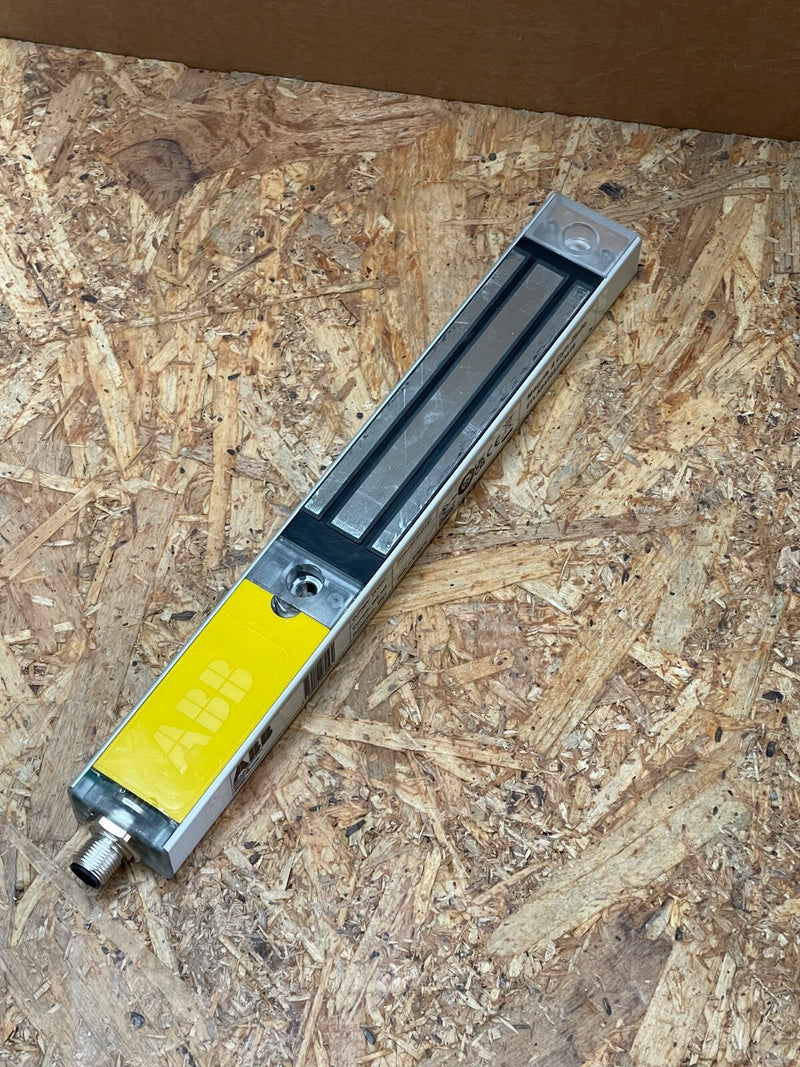

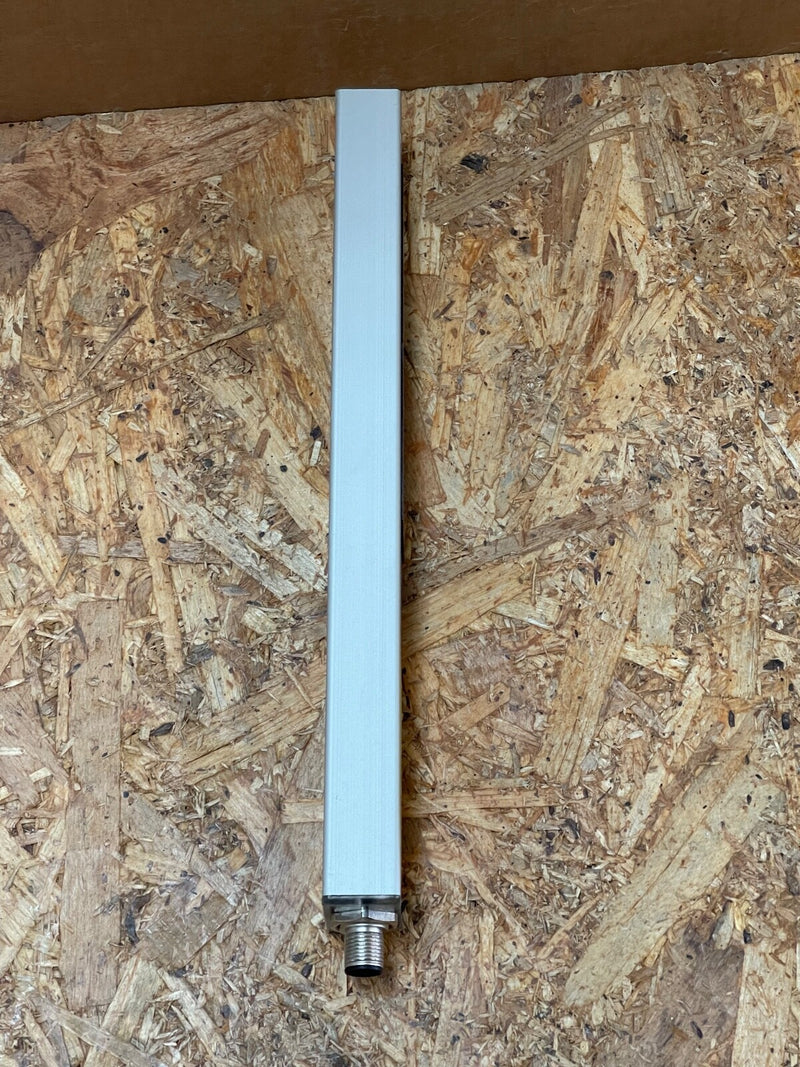

ABB – 2TLA042022R3410 – Magne 4 DYN‑2Info Electromagnetic Safety Lock

The ABB Magne 4 DYN‑2Info (2TLA042022R3410) is an electromagnetic process lock designed for safe interlocking in industrial and safety-rated applications. It features integrated ADAM DYN‑Info diagnostic feedback and dual outputs to signal both “Locked” and “Closed” states. The unit uses a robust aluminium housing, includes a standard M12‑8 male connector for fast field wiring, and offers a 1500 N holding force—optimizing installation in door/hatch safety systems, welding cells, or hazardous-area enclosures.

Key Features:

• Model: Magne 4 DYN‑2Info (2TLA042022R3410)

• Safety Feedback: Two digital outputs providing separate “Locked” and “Closed” status signals

• Holding Force: 1500 N, powered by 24 V DC

• Connector: M12‑8 male connector simplifies wiring and diagnostics

• Housing & Protection: Sealed aluminium body, IP67 rated for harsh environments

• Diagnostics: Integrated LED indicates lock state and system status

• Mounting: Profiled magnet design accommodates misalignment and simplifies installation on safety gates

• Safety Category: Built to meet high-level safety applications with integrated redundant info output functionality
