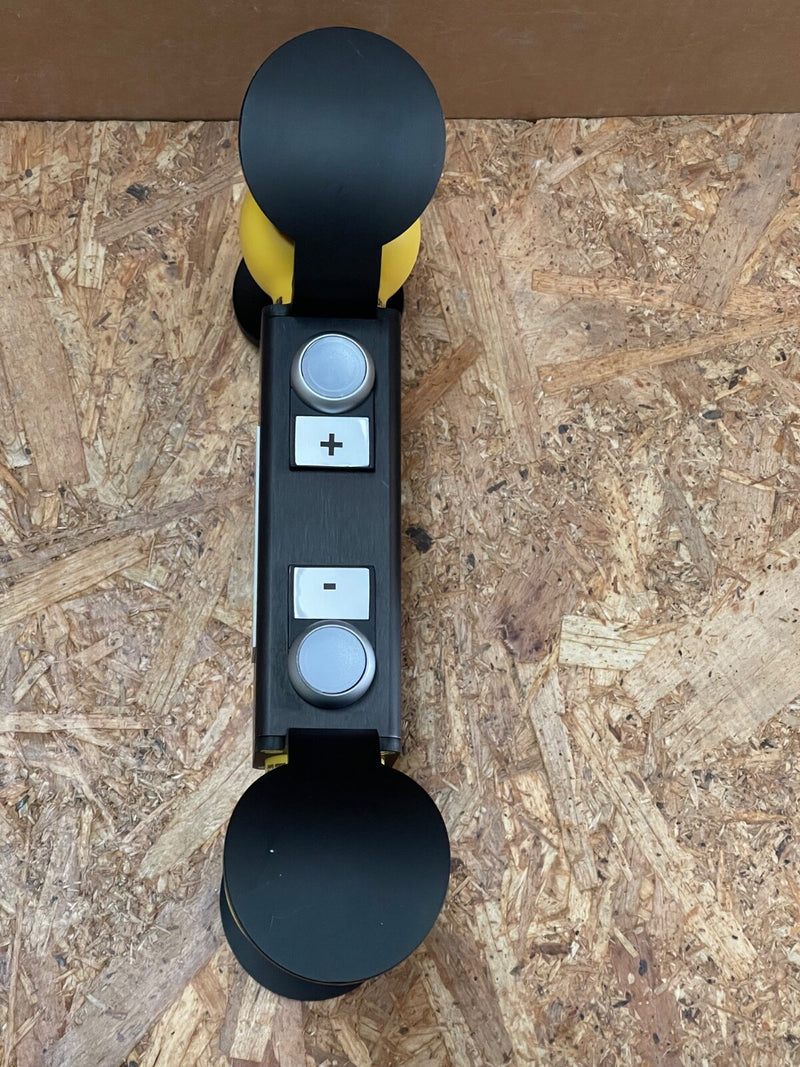

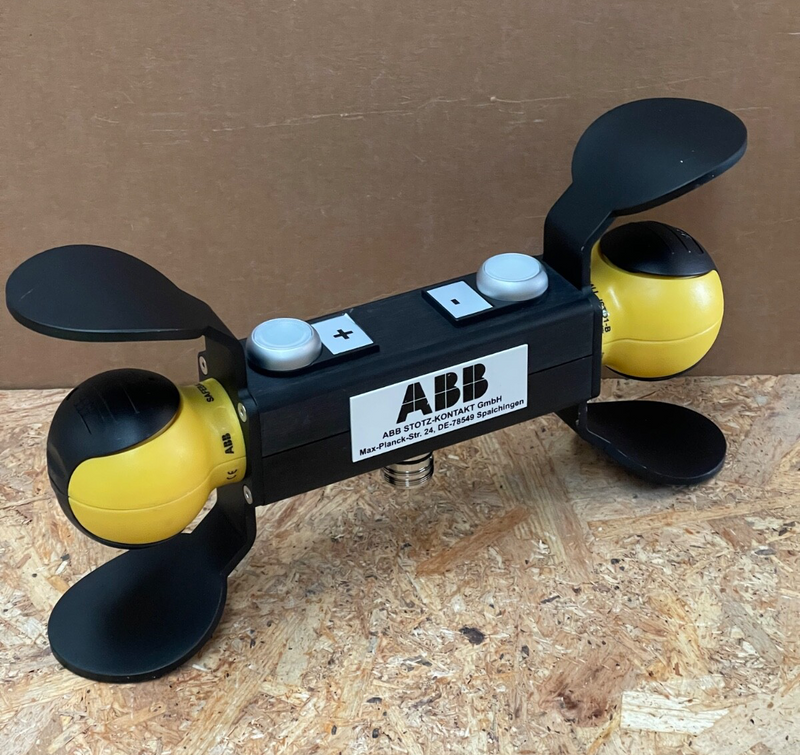

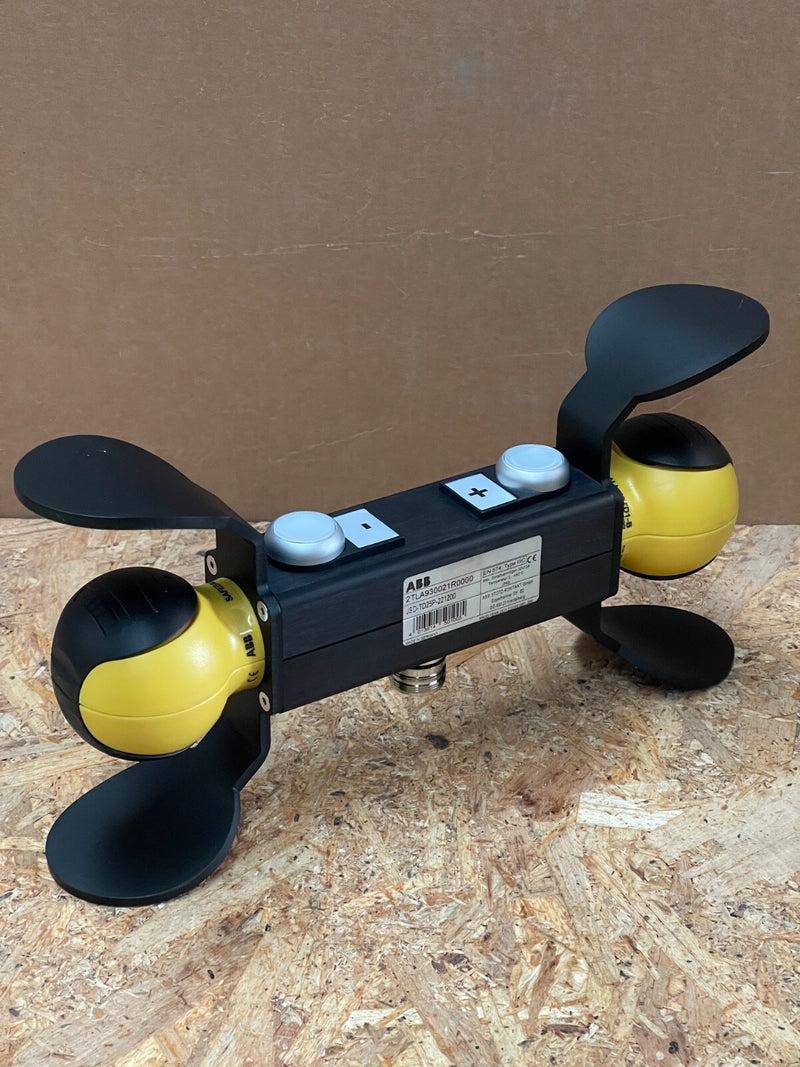

ABB – 2TLA930021R0000 (JSD‑TD25P‑221200) – Mobile Two‑Hand Control Unit

Main Features

• Manufacturer: ABB (formerly Jokab Safety)

• Model/MPN: 2TLA930021R0000, type designation JSD‑TD25P‑221200

• Functionality: Handheld two-hand control unit with integrated emergency-stop and two Safeball handles—designed for enabling safe operation in manual control scenarios

• Controls & Logic:

  • Two Safeball switches requiring simultaneous activation to permit machine operation

  • Emergency-stop pushbutton included

  • Wired to safety circuits for enabling or two-hand control per relevant standards

• Cable & Connector: Spiral cable (length typically 2 m, extendable to 10 m), ends in safety-rated connector or screw terminals depending on variant

• Electrical: Accepts 10–30 V DC supply; robust design for reliable long-term use

• Mechanical & Environmental:

  • Rugged black anodized alloy housing

  • Dimensions: approx. 315 × 155 × 70 mm; weight around 2.1 kg

  • Rated IP55, operating temperatures from –35 °C to +50 °C

• Application Scope: Portable safety enabling device or two-hand controller for presses, manual machines, and hazardous process operations where operator presence and deliberate action are required
